A-ARM / STRUT MOUNTING - A05MH50AB / AC / AG / AH / AL / AT / FB (4994169416C04)

Корзина пуста
Polaris A05MH50AB SPORTSMAN 500 HO/INTL A05MH50AB SPORTSMAN 500 HO/INTL A-ARM / STRUT MOUNTING - A05MH50AB / AC / AG / AH / AL / AT / FB (4994169416C04)

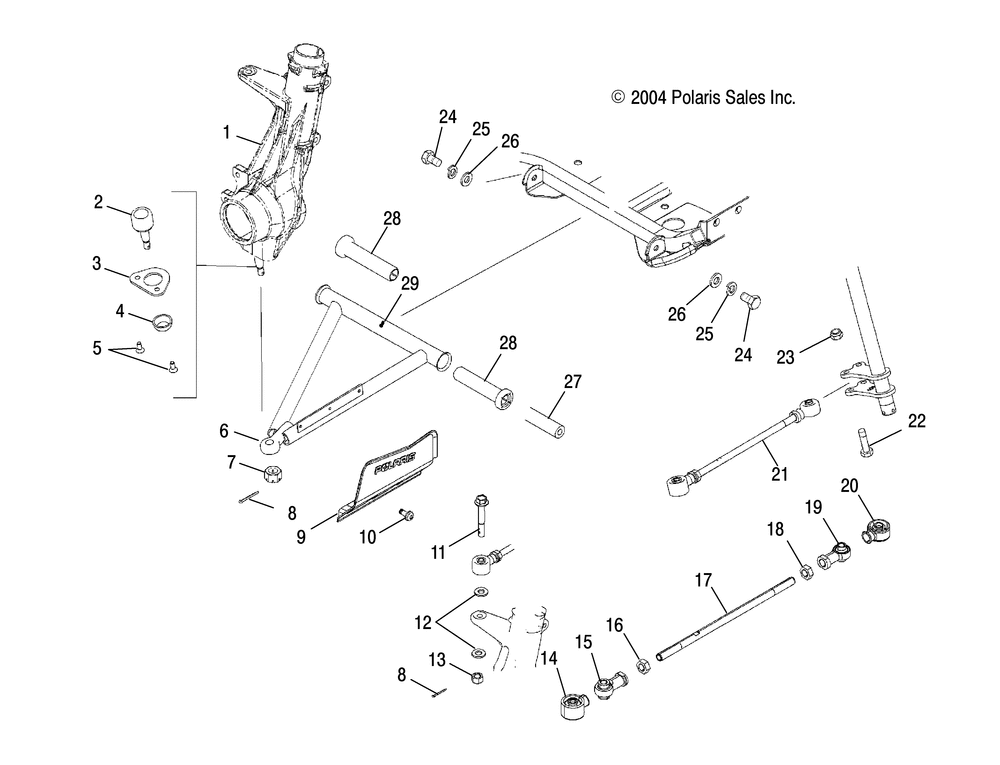

A-ARM / STRUT MOUNTING - A05MH50AB / AC / AG / AH / AL / AT / FB (4994169416C04)
№ Наименование Примечание Кол-во
2 BALL-JOINTGREASELESSSTRUT 2
3 BRKT BALL JOINT 2
4 BOOT-BALLJOINTGREASELESSSTRT 2
5 BOLT SOCKET(10) (10 per pack) 4
6 KIT-A-FRAMELH (1542028) [Incl. 2457101112] 1
6 KIT-A-FRAMERH (1542029) [Incl. 2457101112] 1
7 NUT CASTLE(10) (10 per pack) 2
8 PINCOTTER(10) (10 per pack) 4
9 SHIELD-CVFRONTBASICLHBLK 1
9 SHIELD-CVFRONTBASICRHBLK 1
10 SCREW(10) (10 per pack) 6
11 BOLT-M10X1.25X65HX WASH HD 2
12 WASHER (10) (10 per pack) 4
13 NUT-M10X1.25-HX-LOCK-Y 2
14 BOOT-SEALROD END10MM 1
15 ROD-END10MM1/2-20LH42 DEG TO 2/20/2017 2
16 NUTJAMLH(10) (10 per pack) 2
17 ROD-TIE1/2-20X12.21 2
18 NUT-JAM(10) (10 per pack) 2
19 ROD-END3/81/2-20RH44DEG (If built before 10/01/05) 2
20 BOOT-SEALROD END1/2 IN 2
21 ASM-TIE ROD1/2-20X14.16 (If built before 10/01/05) 2
22 SCREW(10) (10 per pack) 2
23 NUTNYLOK(10) (10 per pack) 2
24 SCREW(10) (10 per pack) 4
25 WASHERSPRING LOCK(10) (10 per pack) 4
26 WASHER 4
27 SHAFT-A-ARM 2
28 BUSHING-A-ARMLONG102.36MM(10) (10 per pack) 4
29 FITTINGLUBRICATIONTHREADED(10 2
