HANDLEBAR AND HEADLIGHT POD - A04CH68AC / AF / AH / AJ / AT / AV (4986128612C01)

Корзина пуста
Polaris A04CH68AC SPORTSMAN 700 A04CH68AC SPORTSMAN 700 HANDLEBAR AND HEADLIGHT POD - A04CH68AC / AF / AH / AJ / AT / AV (4986128612C01)

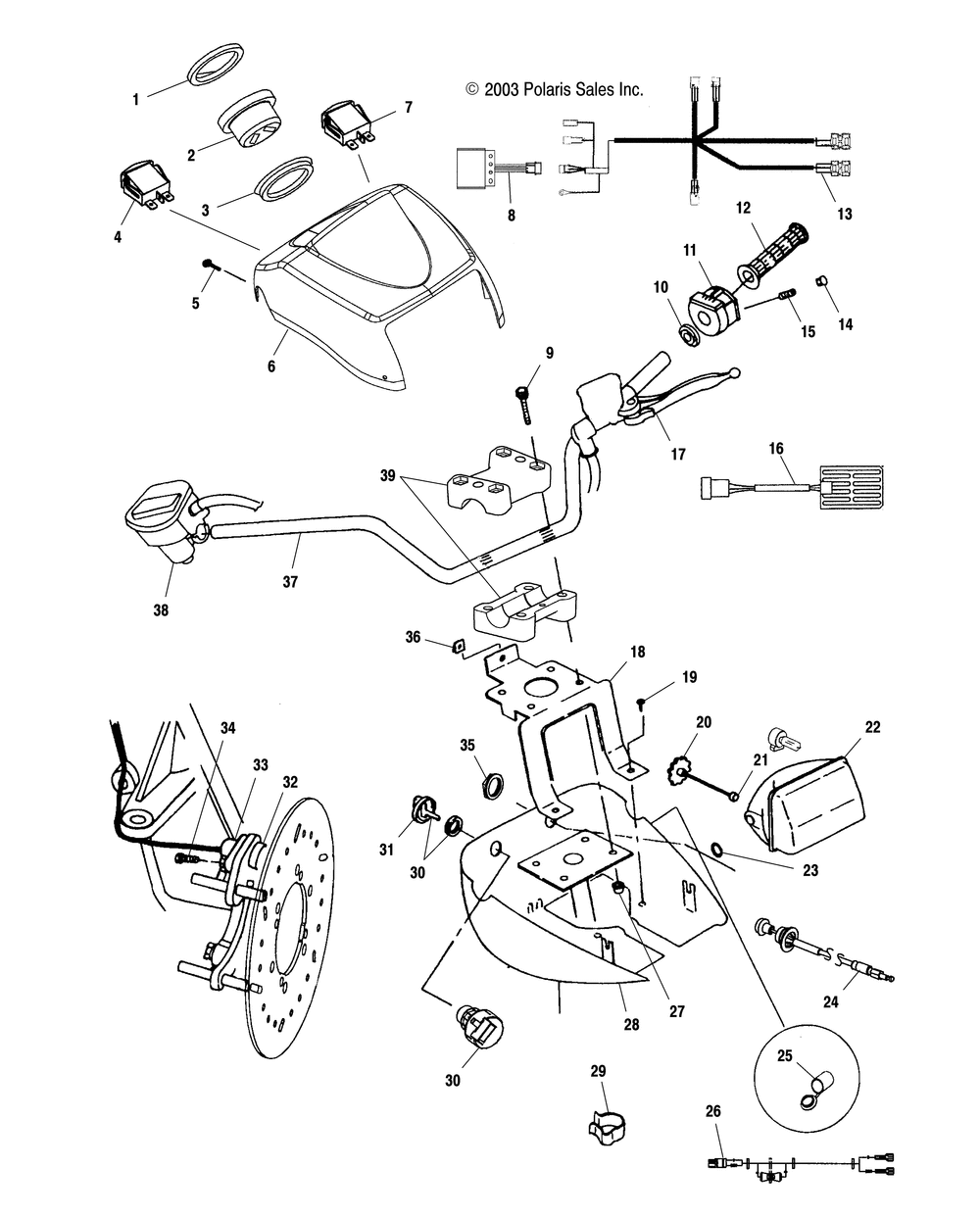

HANDLEBAR AND HEADLIGHT POD - A04CH68AC / AF / AH / AJ / AT / AV (4986128612C01)
№ Наименование Примечание Кол-во
1 BEZEL-REPLACEMENT ATV CLUSTER 1
2 ASM-CLUSTER110MMW/FUEL [Incl. 3] 1
3 MOUNT-RUBBERINSTR. CLUSTER 1
4 SWITCH-THUMB WARMERHI/LO [AT] 1
5 SCREW(10) (10 per pack) 3
6 POD-HDLGHTUPRSW CUTOUTSSHGR (AV) 1
6 POD-HDLGHTUPRSW CUTOUTSNBUS (AT) 1
6 POD-HDLGHTUPPERN.B.U.SUBCAMO (AC) 1
6 POD-HDLTUPPRSNAPGENVICGRNM (AB) 1
6 POD-HDLTUPPRSNAPGENVIM YLW [AJ] 1
6 POD-HDLTUPPRSNAPSONIC BLUE * (AA) 1
7 SWITCH-HAND WARMERHI/LO [AT] 1
8 MODULE-LOAD SHEDLR 64 [MN50AT] 1
9 SCREW 4
10 SPACER-SWITCHLH99 1
11 CNTRL-LHHI/LO/OFF2PSEP 1
12 GRIP-HNDLBAR7/8 IDBLACK 2
13 HARNESS-WIREATVPODWARMERS [MN50AT] 1
14 PLUGHOLE 1
15 SCREWSET 1
16 ASM-HAND WARMERATV (AT)(AV) 1
18 BRKT-POD MOUNTINGE-COAT 1
19 SCREW(10) (10 per pack) 2
20 KNOBADJUSTING 1
21 RODADJUSTING 1
22 HEADLAMPASM.50 WATT 1
22 KIT-HARNESSHEADLIGHT 1
22 BULB-HEADLIGHT50 WATT 1
23 O RING (10) (10 per pack) 2
24 CABLE-CHOKEFRICTION40" [If built before 8/11/03] 1
24 CABLE-CHOKEFRICTION40" (If built before 10/04/04) 1
25 RECEPTACLE-POD MNT12 VOLT 1
27 NUT-NYLOK(10) (10 per pack) 4
28 POD-HEADLIGHTLOWERSNAPSLV [AF] 1
28 POD-HEADLIGHTLOWERSNAPBLK 1
28 POD-HEADLIGHTLOWERSNAPBLKMT 1
29 CLIPCABLE RETAIN(10) * NOTE: For units starting with serial number 340xxxx. (10 per pack) 1
30 KEY BLANK (22/23/27/28) SERIES NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY. 1
30 KEY BLANK (20/21/67/68) SERIES [NOTE:YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY] 1
30 SWITCH-KEY3 POSMT SLV [Incl. 414][Built 10/31/07 and Before] NOTE: Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key. 1
31 KEY COVER-KEYSWITCH 1
32 CAP-HALL SENSOR 1
33 SENSORHALL EFFECT 1
34 SCREW 1
35 NUTCHOKEM24X1.5 THDM29 HEX 1
36 CLIP-SCREWtahos_8/10.03-.10PANEL 1
37 TUBE-HANDLEBARBLK 1
