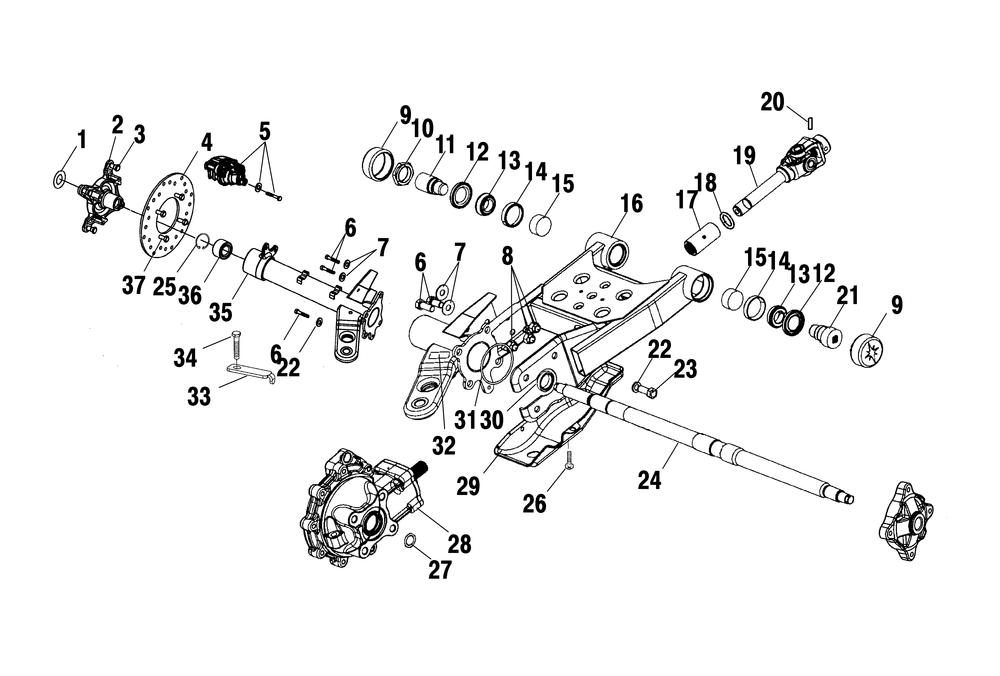

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | O-RING-0.739X0.879X0.070 | 1 | |
| 2 | HUB-WHEEL4WDMACH | 1 | |
| 3 | STUD | 4 | |
| 4 | DISC-BRAKEREAR8.125X.188 | 1 | |
| 5 | BOLT | 2 | |
| 5 | WASHERSPRING LOCK(10) (10 per pack) | 2 | |
| 5 | ASM-CALIPERDH4P W/INS PADS | 1 | |
| 6 | BOLT | 3 | |
| 7 | WASHER(10) (10 per pack) | 3 | |
| 8 | NUT-1/2-20NYLOKY | 3 | |
| 10 | NUTJAMSWINGARMPIVOT | 1 | |
| 11 | PIVOTSWINGARMTHREADED | 1 | |
| 12 | SEALSWINGARM PIVOT | 2 | |
| 13 | BRGTAPER.ROLL.CONE | 2 | |
| 14 | BRGTAPERROLL CUP | 2 | |
| 15 | SEAL-SWINGARM PIVOT | 2 | |
| 17 | COUPLING-PROP SHAFTGREASED | 1 | |
| 17 | FITTINGLUBRICATIONTHREADED(10 | 1 | |
| 18 | O-RING (10) (10 per pack) | 1 | |
| 19 | PROPSHAFT ASMREAR | 1 | |
| 20 | PINSPRING(10) (10 per pack) | 1 | |
| 21 | PIVOT-SWINGARMRH | 1 | |
| 22 | WASHERSPLIT LOCK | 8 | |
| 23 | BOLT-1/2-13X1 1/4 HXHD GR5-Z | 8 | |
| 24 | AXLE-REAR * | 1 | |
| 25 | RINGRET.2.500 INTERNAL | 1 | |
| 26 | SCREW | 3 | |
| 27 | O-RING | 1 | |
| 29 | PLATE-SKIDBLK | 1 | |
| 29 | ASM.SKID PLATEREAR | 1 | |
| 29 | PAD-RUBBER | 1 | |
| 30 | COLLAR-AXLE LOCK | 1 | |
| 31 | O-RING | 1 | |
| 33 | CLAMP-BRAKE LINEREAR | 1 | |
| 34 | SCREW | 1 | |
| 35 | AXLETUBELHBLKVL | 1 | |
| 36 | BEARING-WHEEL 35X64X37MM | 1 | |
| 37 | BOLT | 4 |
