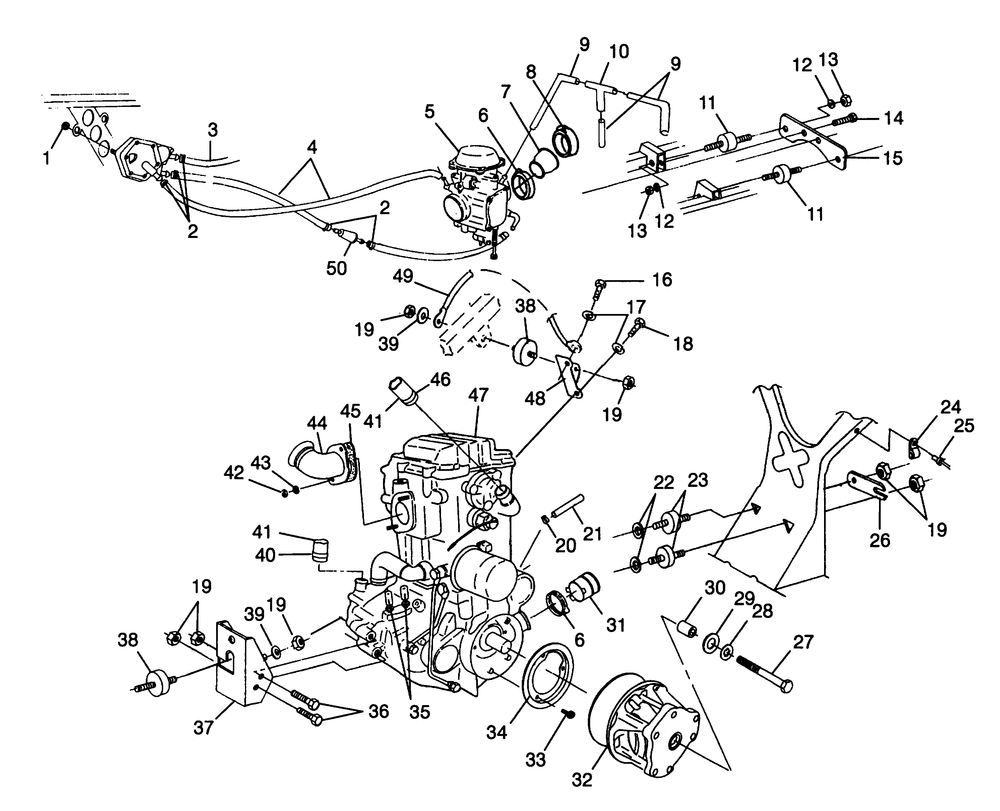

ENGINE MOUNTING - W98CH50AB (4945714571a013)

№	Наименование	Кол-во
1	NUT NYLOK(10) (10 per pack)	2
2	CLAMPHOSE(10) (10 per pack)	8
4	LINE FUEL1/4 ID(600 CM.)	0
6	CLAMPBANDNARROW (10) (10 per pack)	1
8	CLAMP NARROW BAND	1
9	LINEFUEL1/4 ID(1525 CM.) [BULK SVC]	0
10	FITTING TEE	1
11	MOUNT RUBBER (10) (10 per pack)	2
12	WASHER	4
13	NUT HEX	4
15	STRAPCARB.MTBLK.	1
16	BOLT(10) (10 per pack)	1
17	WASHERSPRING LOCK(10) (10 per pack)	2
18	BOLT	1
19	NUT LOCK(10) (10 per pack)	6
20	CLAMPHOSESPRING	1
22	WASHER FLAT	2
23	ISOLATOR-3/8-24M3/8-16M60DUR	2
24	CLAMPNYLONCABLE	1
25	RIVET(50) (50 per pack)	1
26	STRAPFRAME SUPPORTBLK	1
27	BOLT	1
28	WASHER LOCK	1
29	WASHER(10) * (10 per pack)	1
30	BUSHING (Trail Only)	1
31	BOOTCLUTCH INTAKE (If built before 8/04/03)	1
35	CLAMP HOSE (10) (10 per pack)	2
36	SCREW	2
38	ISOLATOR-3/8-24M/M60DURO	2
39	WASHER	2
40	CLAMPHOSE	1
41	HOSE3/4X22"	0
42	NUT	2
43	WASHER SPRING LOCK	2
44	WELD-MANIFOLDBLK	1
46	CLAMPHOSE1.25WORM DRIVE	1
47	SUBSTITUTED BY 9990000 [EH50PLE10] NOTE: The Short Block assembly contains a crankcase assembly cylinder and cylinder head assembly and a piston & crankshaft assembly. Prior authorization required for warranty consideration.	1
48	MOUNT-ENGINETOP PLTD	1
49	CABLEGND-ENGINE	1
50	FILTERSMALLIN-LINE(10) (10 per pack)	1
