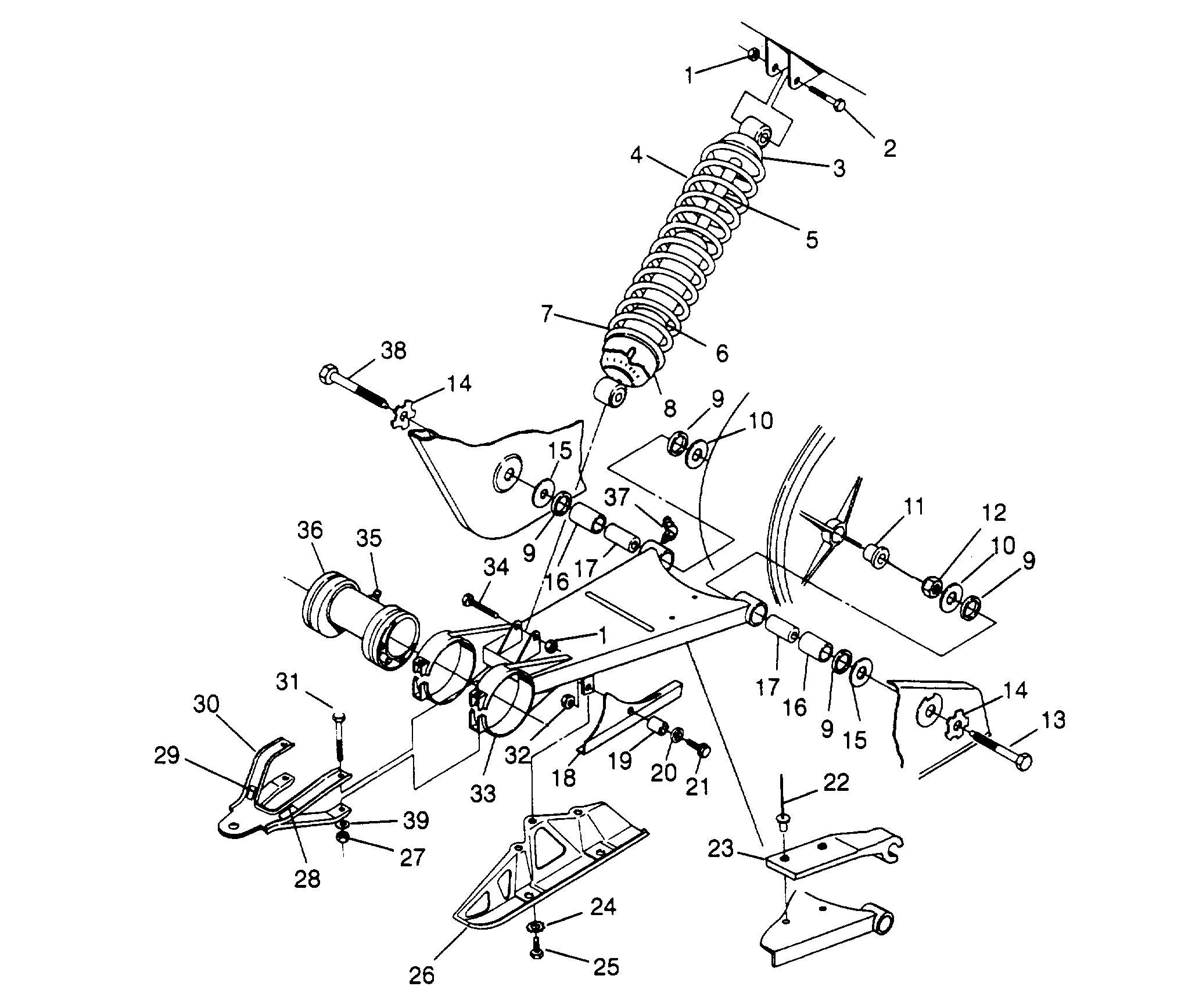

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | NUTNYLOK(10) (10 per pack) | 2 | |
| 2 | SCREW(10) (10 per pack) | 1 | |
| 3 | RETAINER-SPRINGSTEEL | 1 | |
| 5 | SHOCKREAR | 1 | |
| 6 | SLEEVESPRING PROTECTOR | 1 | |
| 7 | ADAPTERSPRINGSEAT | 1 | |
| 8 | CAMADJUSTING SPRING | 1 | |
| 9 | SEALOIL | 4 | |
| 10 | WASHER(10) | 2 | |
| 12 | NUTCROWN LOCK(10) | 2 | |
| 13 | BOLT SHOULDER | 1 | |
| 14 | PLATEBOLT LOCK | 2 | |
| 15 | BUSHING MACH.(10) | 2 | |
| 16 | BEARINGSWINGARM | 2 | |
| 17 | BUSHINGSWING ARM | 2 | |
| 18 | GUARD CHAIN* | 1 | |
| 19 | BUSHING | 1 | |
| 20 | WASHERFLAT(10) (10 per pack) | 1 | |
| 21 | SCREW-FLANGED | 1 | |
| 22 | RIVET(50) (50 per pack) | 2 | |
| 23 | GUIDE CHAIN | 1 | |
| 24 | WASHER(10) (10 per pack) | 4 | |
| 25 | SCREW(10) | 4 | |
| 26 | GUARD SWING ARM | 1 | |
| 27 | NUTFLEXLOCK | 2 | |
| 29 | DECAL HITCH Substituted by 7078261 | 1 | |
| 30 | HITCH ATV CHAIN DRVN [Incl. 27-30] | 1 | |
| 31 | BOLT | 2 | |
| 32 | NUTFLANGE(10) (10 per pack) | 1 | |
| 33 | ARM SWING | 1 | |
| 34 | BOLT | 1 | |
| 35 | FITTINGLUBE.W/BALL CK.(10) (10 per pack) | 1 | |
| 37 | FITTING LUBE. | 2 | |
| 38 | BOLT SHOULDER | 1 | |
| 39 | WASHER | 2 |
