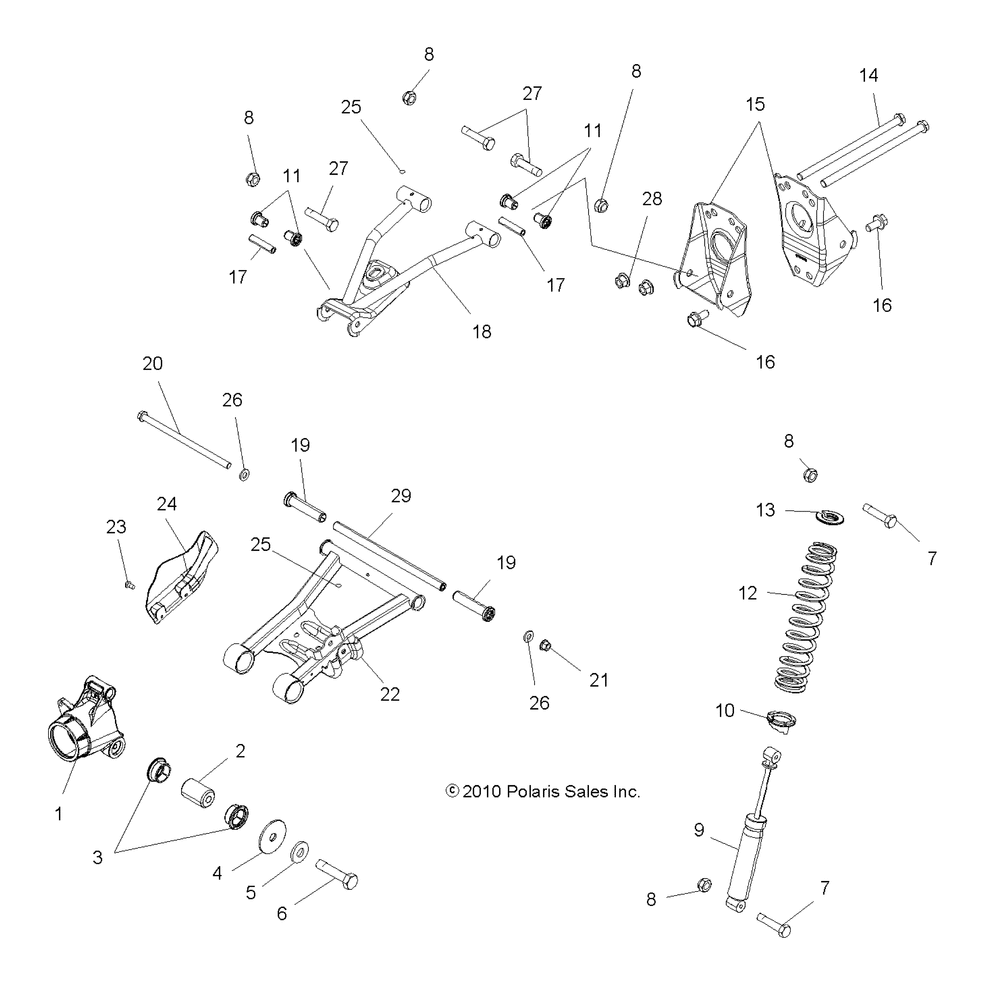

SUSPENSION REAR - A15SEE57AA / AC / AJ (49ATVSUSPRR11SP5)

№	Наименование	Кол-во
1	CARRIER-BEARINGWHEEL(MACH)	2
2	BUSHING-BRNGCARRIERPM7/16	4
3	BUSHING-CONTROLLOWERBLK(10) (10 per pack)	8
4	WASHER(10) * (10 per pack)	4
5	WASHER LOCK	4
6	BOLT-7/16-14 UNC-2AX2.75" GR5 (	4
7	SCREW(10) (10 per pack)	4
8	NUTNYLOK(10) (10 per pack)	10
9	SHOCK-RRIRS	2
10	CAM-ADJUSTINGSPRINGSTEEL	2
11	BUSHING-A-ARM-SHORTBLK(10) (10 per pack)	12
12	SPRING-100tahos_ 12.3 FLBLK [AS][AL][A9]	2
13	RETAINER-SPRINGSTEEL	2
14	BOLT-3/8-16X7 HEX FLANGE GR5	2
15	BRKT-CONTROL-ARMPIVOTE-COAT	2
16	SCREW	2
17	SHAFTA-ARMSHORT	6
18	WELD-UPPER CONTROL ARMLHBLK	1
18	WELD-UPPER CONTROL ARMRHBLK	1
19	BUSHING-A-ARMLONG102.36MM(10) (10 per pack)	4
20	SCR-3/8-24X12.25 FLG HX GR8-Y	2
21	NUT-3/8-24 HEX LOCGR8	2
22	WELD-CONTROLLOWERLHBLK	1
22	WELD-CONTROLLOWERRHBLK	1
23	SCREW(10) (10 per pack)	4
24	SHIELD-CVREARBASICBLKLH	1
24	SHIELD-CVREARBASICBLKRH	1
25	FITTINGLUBRICATIONTHREADED(10	6
26	WASHER3/8 FW(10) (10 per pack)	4
27	BOLT	6
28	NUT-FLANGED3/8-16 NYLON-Z (10) (10 per pack)	2
29	TUBE-PIVOT.625ODX.385IDX11.12	2
