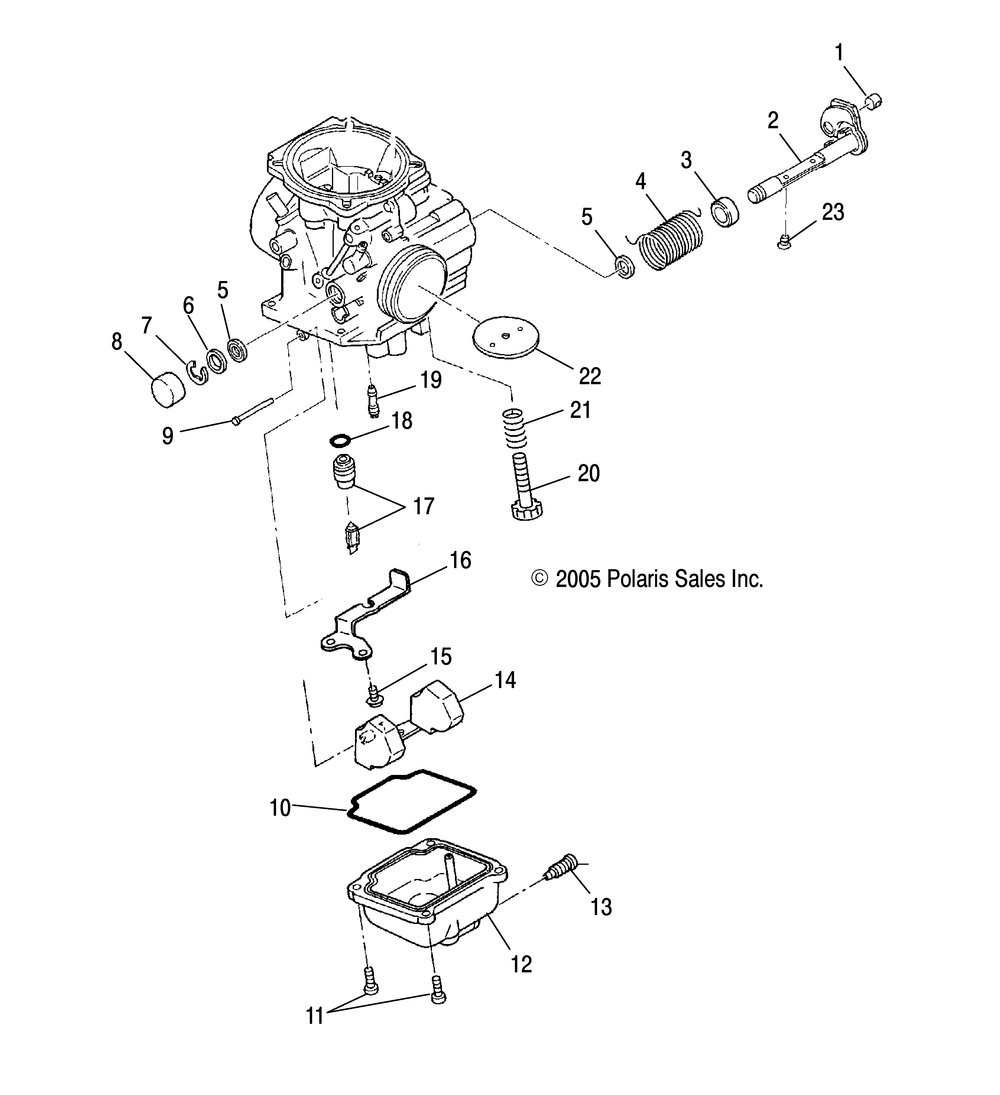

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | GUIDE CABLE | 1 | |
| 2 | ASSY-THROTTLE SHAFT | 1 | |
| 3 | RING | 1 | |
| 4 | SPRING | 1 | |
| 5 | SEAL | 2 | |
| 7 | E-RING | 1 | |
| 8 | CAP | 1 | |
| 9 | PIN FLOAT | 1 | |
| 10 | O-RING | 1 | |
| 11 | SCREW | 4 | |
| 12 | FLOATBODY ASM. | 1 | |
| 13 | SCREW | 1 | |
| 14 | FLOAT ASM. | 1 | |
| 15 | SCREW(10) (10 per pack) | 2 | |
| 16 | PLATE | 1 | |
| 17 | O-RING(10) (10 per pack) | 1 | |
| 18 | VALVE-NEEDLE1.5(PUSH IN) | 1 | |
| 19 | JETPILOTtahos_42.5 | 1 | |
| 20 | SCREW-ADJUST | 1 | |
| 21 | SPRING | 1 | |
| 22 | VALVE-THROTTLE (95) | 1 | |
| 23 | SCREW | 2 |
