DRIVE TRAIN FRONT GEARCASE (Built 9 / 27 / 10 and Before) - A11MH46AX / AZ (49RGRTRANSINTL1332773)

Корзина пуста
Polaris A11MH46AX/AZ SPORTSMAN 400 HO 4X4 A11MH46AX/AZ SPORTSMAN 400 HO 4X4 DRIVE TRAIN FRONT GEARCASE (Built 9 / 27 / 10 and Before) - A11MH46AX / AZ (49RGRTRANSINTL1332773)

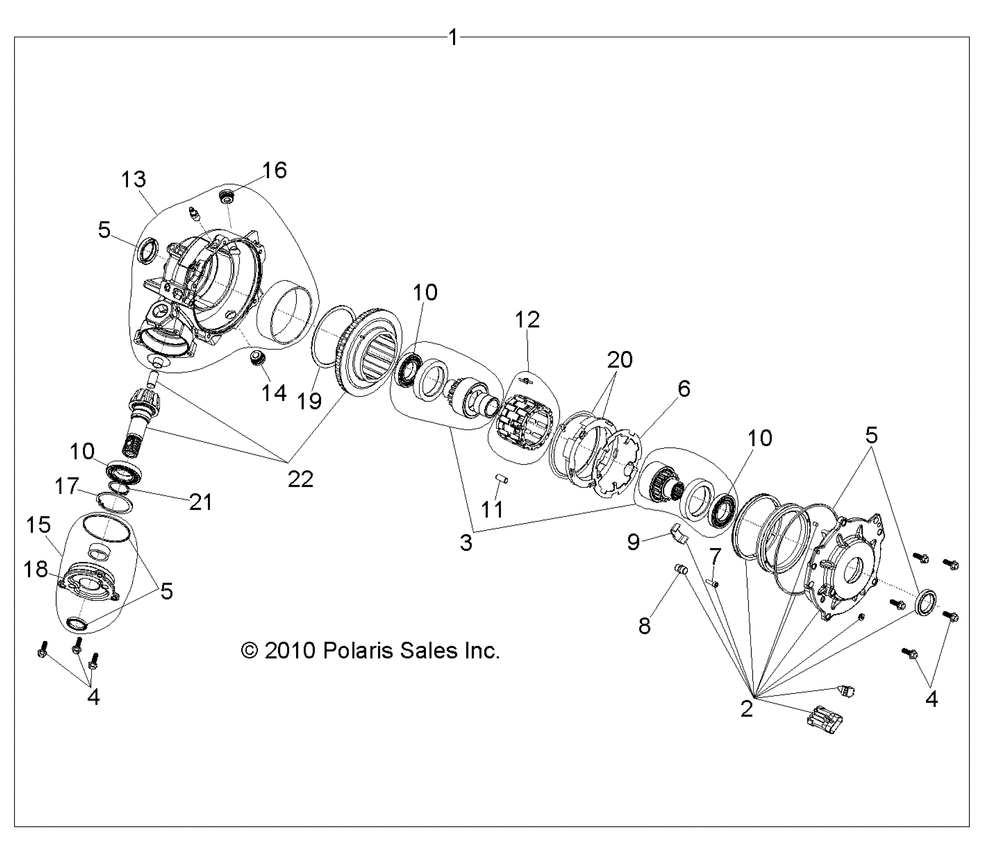

DRIVE TRAIN FRONT GEARCASE (Built 9 / 27 / 10 and Before) - A11MH46AX / AZ (49RGRTRANSINTL1332773)
№ Наименование Примечание Кол-во
1 ASM-GEARCASEAWD [Incl. All][Built 9/27/10 and Before] 1
2 ASM-COVEROUTPUT [INCL. CONNECTOR ASSEMBLY OUTPUT COVER PLASTIC CLIP THRUST BUTTON ASM. 4WD COIL THRUST PLATE O-RING GROMMET SCREW OIL SEAL DOWEL PINS HEAT SHRINK TUBING] 1
3 KIT-OUTPUT HUBOST [INCL. HUB ASM. FEMALE HUB ASM. MALE] 1
4 KIT-BOLT [Incl. All Bolts] 1
5 KIT-REPAIRSEAL [Incl. All Seals O-Rings} 1
6 PLATE-ARMATURE 1
7 SET-SCREWtahos_10-14 W/NYLOK 1
8 ASM-THRUST BUTTON [Incl. Seal] 1
9 PLATE-THRUSTDU 1
10 BEARING 3
11 KIT-ROLLER (20) [Incl. Complete Roll Set] (20 per pack) 1
12 ASM-ROLL CAGE [INCL. 22 CLIPS] 1
12 ASM-ROLL CAGEAL(T) HIGH PERFORMANCE ACCESSORY W/CLIP SET 1
13 ASM-GEARCASE [Incl. Bushings Seal Vent Plugs] 1
14 ASM-PLUGDRAINMAGNETIC 1
15 ASM-INPUT COVER [Incl. Bushing O-Ring Seal] 1
16 PLUG-OIL FILL 3/4-16 HOLLOW 1
17 RING-RETAININGINTRNL5000-218 1
18 COVER-INPUT 1
19 SPACER-RING GEAR 1
20 KIT-SPRING W/TORSION SPRING & SPRINT RETAINER ASSY 1
21 RING-RETAININGEXTERNALBOW 1
22 ASM-RING & PINION GEARNON ADC [INCL. RING GEAR SUB ASM. PINION GEAR DOWEL PIN][INCL. 1721 BEARING] 1
