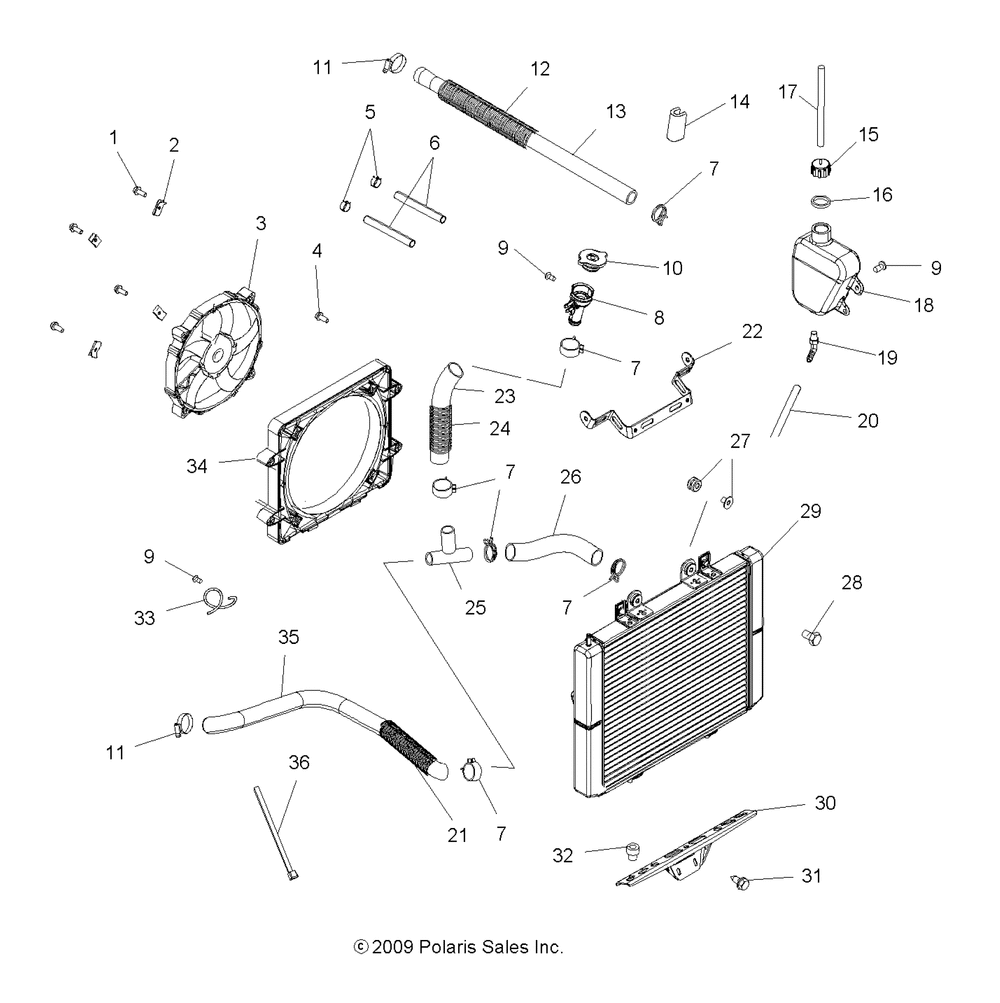

ENGINE COOLING SYSTEM - A10MH76AJ / MN76AX / AZ (49ATVCOOL10SP800)

№	Наименование	Кол-во
1	SCREW	4
2	CLIP-"U"M6.0X1.0	4
3	KIT-FAN [Incl. Circuit Breaker][Built 3/15/10 and Before]	1
3	FAN-11" ASSEMBLYPKRD	1
4	SCR-M6-1.00X20W/WASHER(10) (10 per pack)	4
5	CLAMPHOSE(10) (10 per pack)	2
6	1/4"SAEJ2002EPDM HOSE600CM	1
7	CLAMPSPRINGBAND 32/12 (10) (10 per pack)	6
8	FILLER-REMOTECOOLANT2FITTING	1
9	SCREW(10) (10 per pack)	5
10	CAP-PRESSURE13 PSI	1
11	CLAMP-HOSE(WORM DR)25-40MM (Worm Drive)	2
12	CONDUIT-FLEX1.25 IDPE38CM	1
13	HOSE-20R3 1.0 ID X 21.5	1
14	TRIMEDGE6FTBLACK [BULK SVC]	0
15	CAP-OVERFLOW BOTTLEW/FITTING	1
16	GASKET (10) (10 per pack)	1
17	LINEFUEL1/8 ID600 CM.	1
18	TANK-SURGE	1
19	FITTING90 DEGREE (10) (10 per pack)	1
20	LINEFUEL1/4 ID(1525 CM.) [BULK SVC]	1
22	BRKT-RADIATOR MNTUPPER	1
23	HOSE-20R31.0 ID X 9.62	1
25	CONNECTOR-TEE1"1"1" BARBED	1
26	HOSE-LOWER RADIATOR1"	1
27	ASM-GROMMET & INSERT	2
28	SCREW	2
29	ASM-RADIATOR324X360VGT [INCL. RADIATOR27]	1
30	BRKT-RADIATORLOWERBLK	1
31	SCREW(10) (10 per pack)	2
32	BUSHING-MOUNTLOWER RADIATOR	2
33	RETAINER-HOSEWIRE FORM	1
34	SHROUD-FAN	1
35	HOSE-LOWER ENGINE1"	1
36	CABLE TIE11 INCH	1
