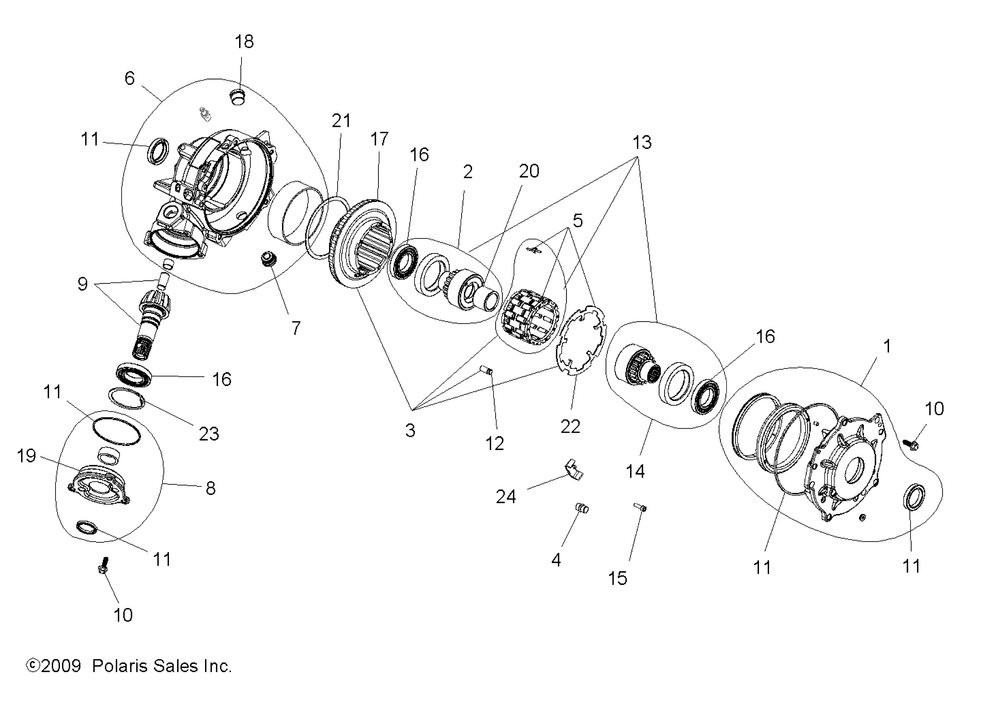

DRIVE TRAIN FRONT GEARCASE (Built 11 / 01 / 09 and Before) - A10MH76AJ / MN76AX / AZ (49ATVGEARCASE1332772)

Polaris A10MH76AJ/MN76AX/AZ SPORTSMAN 800 EFI A10MH76AJ/MN76AX/AZ SPORTSMAN 800 EFI DRIVE TRAIN FRONT GEARCASE (Built 11 / 01 / 09 and Before) - A10MH76AJ / MN76AX / AZ (49ATVGEARCASE1332772)

№	Наименование	Примечание	Кол-во
	ASM-GEARCASEAWD [Incl. All]		1
1	ASM-COVEROUTPUT [Incl. Coil Thrust Plate O-Ring Seal Insert set Screw]		1
3	ASM-CLUTCHOS [Incl. Armature Plate Clutch Housing/Ring Gear Roll Cage]		1
4	ASM-THRUST BUTTON [Incl. Seal]		1
5	ASM-ROLL CAGE [Incl. Roll Cage Clips]		1
5	ASM-ROLL CAGEAL(NT) [Opt]		1
6	ASM-GEARCASE [Incl. Bushings Seal Vent Plugs]		1
7	ASM-PLUGDRAINMAGNETIC		1
8	ASM-INPUT COVER [Incl. Bushing O-Ring Seal]		1
9	ASM-GEARPINION [Incl. Pin]		1
10	KIT-BOLT [Incl. All Bolts]		1
11	KIT-REPAIRSEAL [Incl. All Seals O-Rings}		1
12	KIT-ROLLOVERSIZED [Incl. Complete Set Rollers]		1
13	KIT-CAGESPRINGS & OUTPUT HUBS [Incl. Spacer]		1
14	HUB-OUTPUTRH [Incl. Spacer Bearing Hub Bushing]		1
15	SET-SCREWtahos_10-14 W/NYLOK		1
16	BEARING		3
17	HSG-CLUTCHOS		1
18	PLUG-OIL FILL 3/4-16 HOLLOW		1
19	COVER-INPUT		1
20	BUSHING-1X1.316X1		1
21	SPACER-RING GEAR		1
22	PLATE-ARMATURE		1
23	RING-RETAININGINTRNL5000-218		1
24	PLATE-THRUSTDU		1
