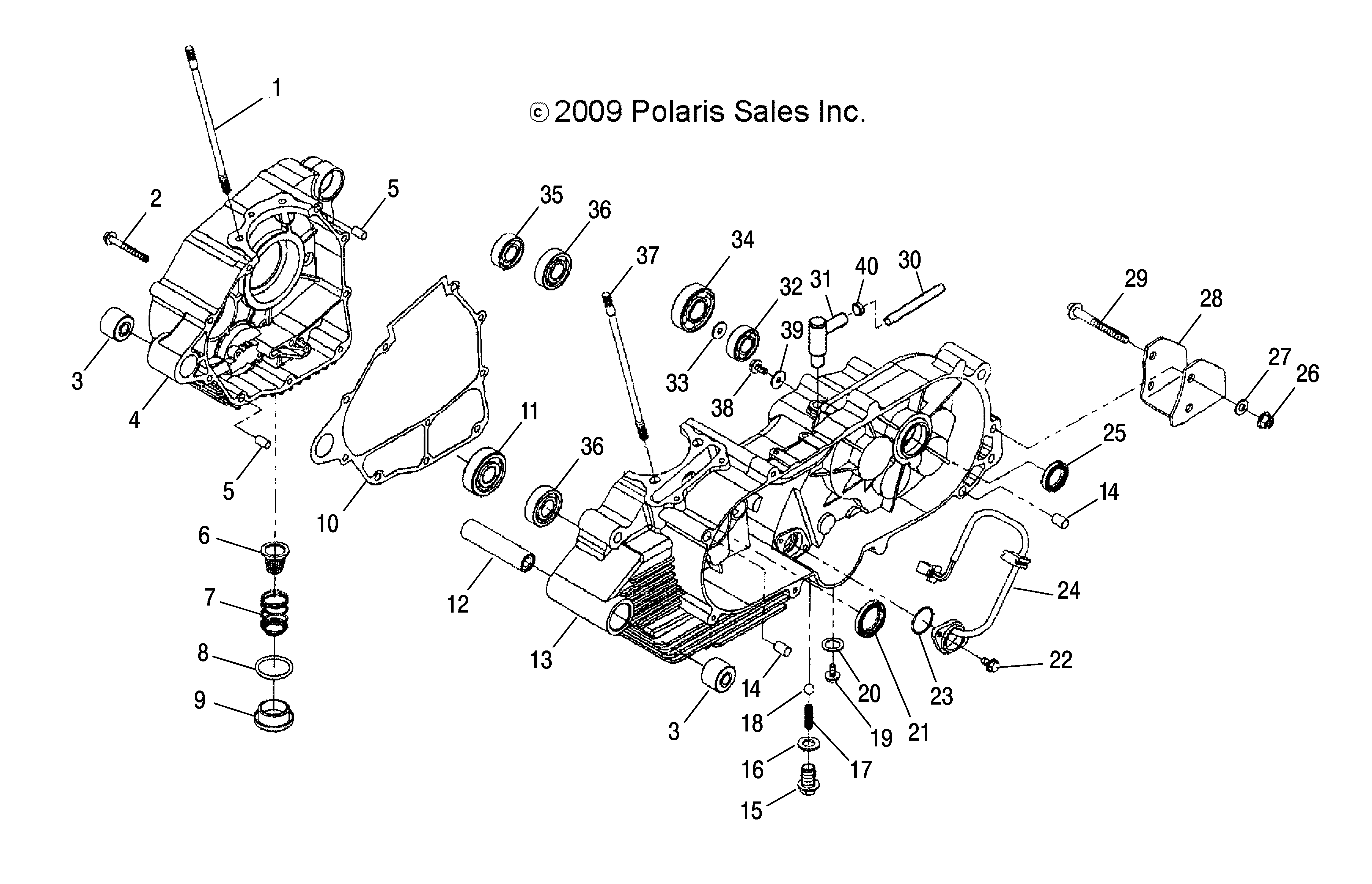

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | BOLT-STUD | 2 | |
| 2 | BOLT-HEXFLANGE | 2 | |
| 3 | BUSHING-RUBBER | 2 | |
| 4 | CRANKCASE-RH | 1 | |
| 5 | PIN-DOWEL | 2 | |
| 6 | SCREEN-OIL* | 1 | |
| 7 | SPRING-OIL SCREEN | 1 | |
| 8 | O-RINGDRAIN PLUG | 1 | |
| 9 | PLUG-DRAINOIL* | 1 | |
| 10 | GASKET-CRANK CASE | 1 | |
| 11 | BEARING-BALL | 1 | |
| 12 | SPACER-COLLAR | 1 | |
| 13 | CRANKCASE-LH | 1 | |
| 14 | PIN-DOWEL | 2 | |
| 15 | BOLT-HEX | 1 | |
| 16 | WASHER-FLAT | 1 | |
| 17 | SPRING-DETENT10KG (10) (10 per pack) | 1 | |
| 18 | BALL-STEEL | 1 | |
| 19 | BOLT-HEXWASHER FACE | 1 | |
| 20 | WASHER-FLAT | 1 | |
| 21 | SEAL-OIL | 1 | |
| 22 | BOLT-HEXFLANGE | 2 | |
| 23 | O-RING-GEAR POSITION SENSOR | 1 | |
| 24 | SWITCH-CRANK CASE | 1 | |
| 25 | SEAL-OIL | 1 | |
| 26 | NUT-FLANGE(10) (10 per pack) | 2 | |
| 27 | WASHER-FLAT | 2 | |
| 28 | BRKT-MOTOR MOUNT | 1 | |
| 29 | BOLT-HEXFLANGE | 2 | |
| 30 | HOSE-VENTGEARCASE | 1 | |
| 31 | BREATHER-CRANKCASELOWER | 1 | |
| 32 | BEARING-NEEDLE | 1 | |
| 33 | WASHER-FLAT | 1 | |
| 34 | BEARING-BALL | 1 | |
| 35 | BEARING-MAIN TRNSMSN SHAFT | 1 | |
| 36 | BEARING-BALL | 2 | |
| 37 | BOLT-STUD | 2 | |
| 38 | BOLT-HEXFLANGE | 1 | |
| 39 | WASHER-FLAT | 1 | |
| 40 | CLIP(10) * (10 per pack) | 1 |
