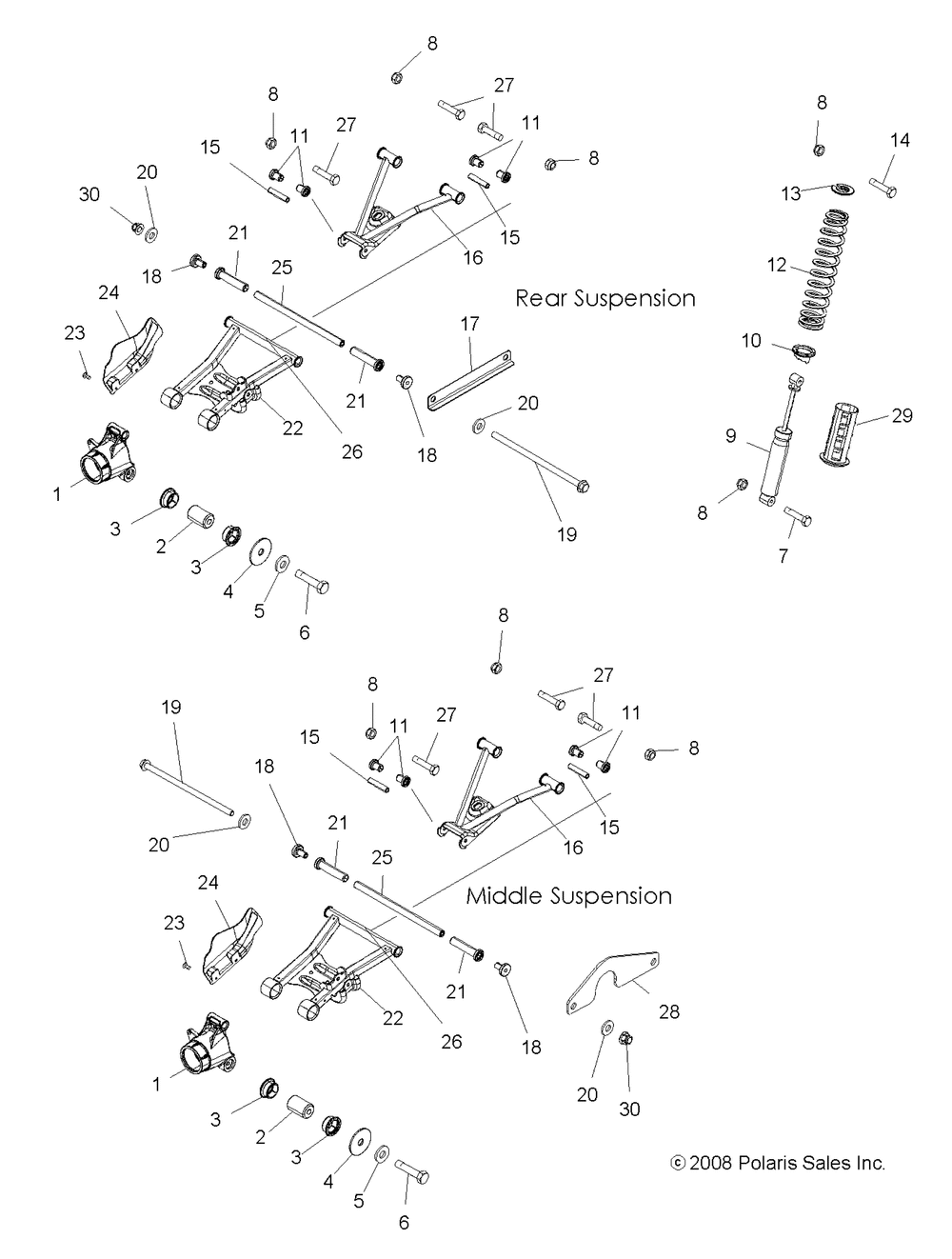

SUSPENSION REAR - A09CL76AA (49ATVSUSPRR096X6)

№	Наименование	Кол-во
1	CARRIER-BEARINGWHEEL(MACH)	4
2	BUSHING-BRNGCARRIERPM7/16	8
3	BUSHING-CONTROLLOWERBLK(10) (10 per pack)	16
4	WASHER(10) * (10 per pack)	8
5	WASHER LOCK	8
6	BOLT-7/16-14 UNC-2AX2.75" GR5 (	8
7	SCREW(10) (10 per pack)	4
8	NUTNYLOK(10) (10 per pack)	24
9	SHOCK-RRIRS6X6	4
10	CAMSPRING ADJUST1-3/8	4
11	BUSHING-A-ARM-SHORTBLK(10) (10 per pack)	12
12	SPRING-COMP130/16513.8LG	4
13	RETAINER-SPRINGSTEEL	4
14	SCREW(10) (10 per pack)	4
15	SHAFTA-ARMSHORT	12
16	WELD-UPPER CONTROL ARMRHBLK	2
16	WELD-UPPER CONTROL ARMLHBLK	2
17	STRAP-REAR GEARCASE6X6BLK	1
18	BUSHING-PIVOTWEAR.385 ID	8
19	SCR-3/8-24X12.25 FLG HX GR8-Y	4
20	WASHER3/8 FW(10) (10 per pack)	8
21	BUSHING-CONTROL ARM2.7	8
22	WELD-CONTROLLOWERLHBLK	2
22	WELD-CONTROLLOWERRHBLK	2
23	SCREW(10) (10 per pack)	8
24	SHIELD-CVREARBASICBLKRH	2
24	SHIELD-CVREARBASICBLKLH	2
25	TUBE-PIVOT.625 OD X .385 ID	4
26	FITTINGLUBRICATIONTHREADED(10	4
27	BOLT	12
28	STRAP-MID GEAR CASE6X6BLK	1
29	SLEEVESHOCK PROTECTOR	4
30	NUT-3/8-24 HEX LOCGR8	4
