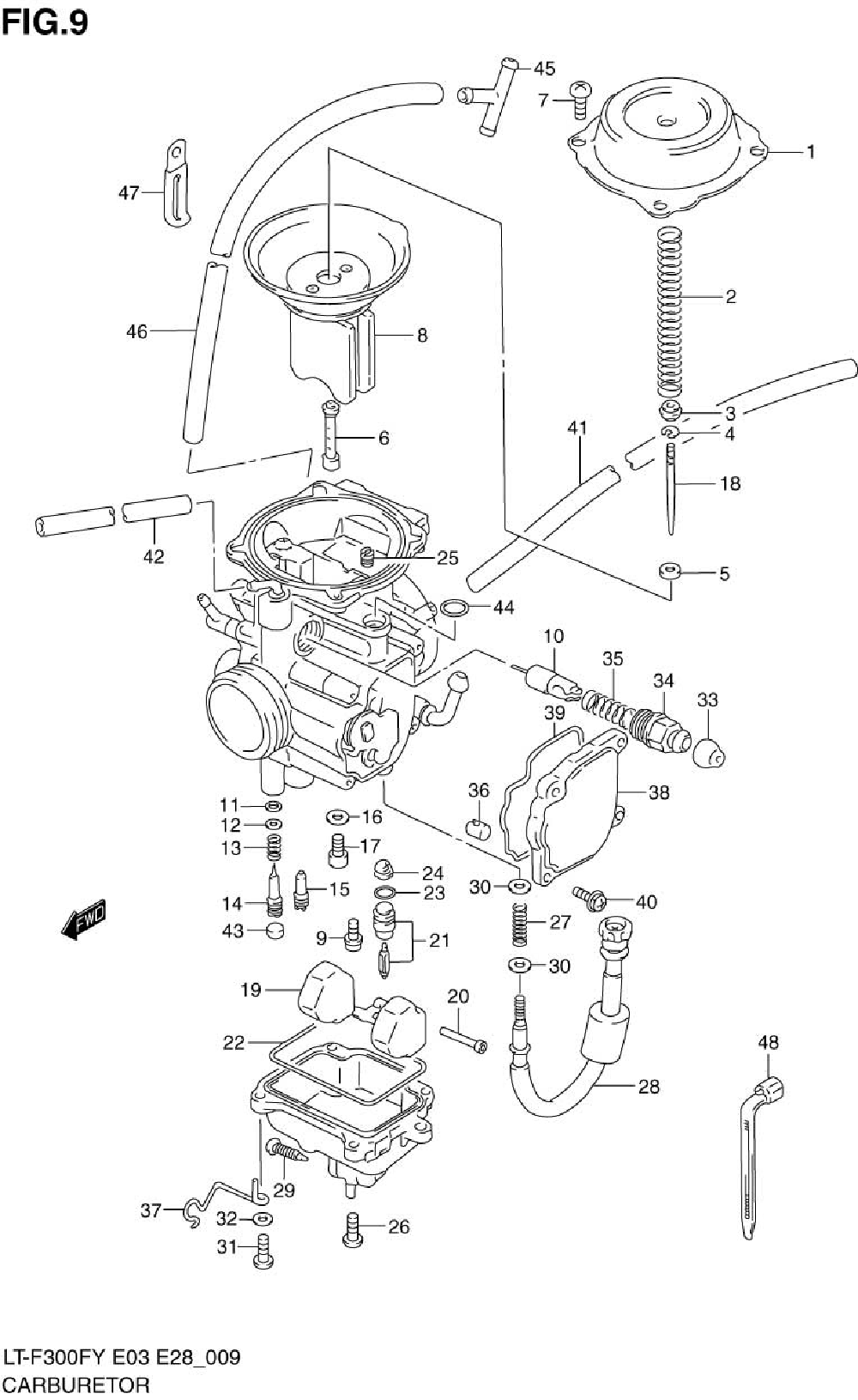

CARBURETOR (MODEL X)

№	Наименование	Кол-во
	CARBURETOR ASSY	1
	Деталь	1
1	COVER	1
2	SPRING	1
3	RING	1
4-1	NEEDLE CLIP (0010 per pack)	1
4-2	E RING	1
5	JET NEEDLE RING	1
6-1	JETNEEDLE	1
6-2	JETNEEDLE (0-6	1
7-1	SCREW 4X8	4
7-2	SCREW	4
8-1	DIAPHRAGM ASSY	1
8-2	DIAPHRAGM ASSY	1
9	SCREW	1
10-1	PLUNGER ASSY	1
10-2	PLUNGER ASSY	1
11	O RING	1
12	WASHER	1
13	SPRING	1
14-1	SCREW PILOT	1
15-1	JET PILOT	1
15-2	JET PILOT	1
16	WASHER	1
17-1	JETMAIN tahos_120	1
17-2	JET MAIN 117.5	1
18-1	NEEDLEJET	1
18-2	NEEDLE JET (5D8	1
19	FLOAT	1
20	FLOAT PIN	1
21-1	VALVENEEDLE	1
21-2	VALVENEEDLE	1
22	O RINGFLOAT CH	1
23	O RINGNEEDLE V	1
24	FILTER	1
25-1	JET PILOT AIR	1
25-2	Деталь	1
26	SCREW	3
27	SPRING	1
28	ADJUSTER ASSY	1
29	PLUG DRAIN	1
30	WASHER	2
31-1	SCREW	1
31-2	SCREW	1
32	WASHER	1
33	CARBURETOR CAP	1
34	HOLDER GUIDE	1
35	SPRINGSTARTER	1
36	GUIDE CABLE	1
37	CLIP	1
38	COVER	1
39	0 RING	1
40	SCREW	4
41-1	(E3E28L:2000->650)	1
41-2	HOSEAIR VENT (	1
42	HOSE4.5 X 8.5	1
43	PLUG	1
44	O-RINGBELT LUB	1
45	UNION3 WAY	1
47	CLAMP	1
48	CLAMP	1
