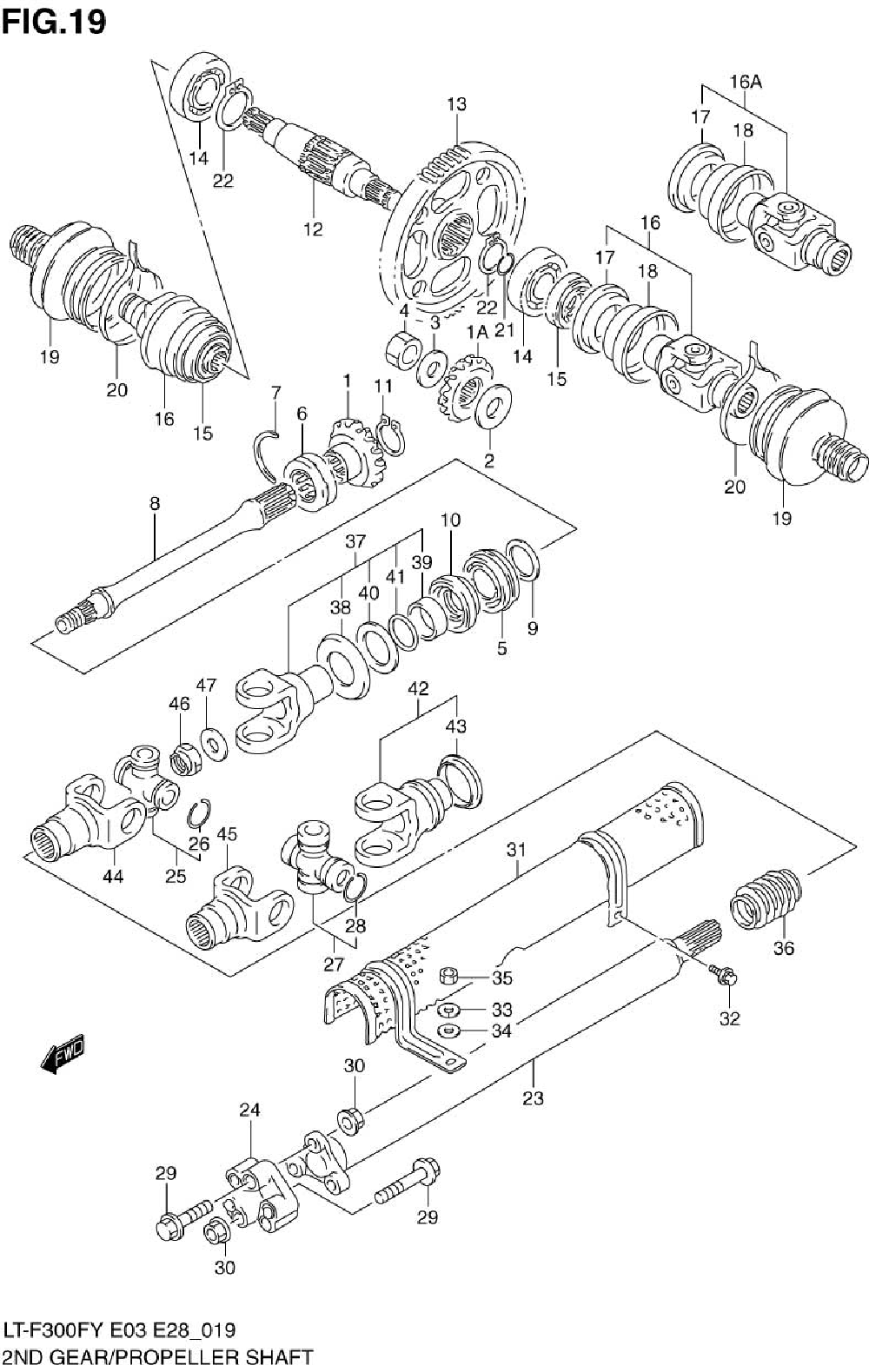

SECONDARY GEAR - PROPELLER SHAFT

№	Наименование	Кол-во
1	Деталь	1
1A	Деталь	1
2	SHIM SETSEC DR (MODEL K3/K4/K5T:0.25/0.30/0.35/0.90/1.00/1.05/1.10/1.15)	1
3	WASHER	1
4-1	DRIVE SPROCKET	1
4-2	DRIVE SPROCKET	1
5	BRGRR OTPT25X	1
6-1	NDL BRG 30X50X	1
7	C RING	1
8	Деталь	1
9-1	WASHER SHIM	1
9-10	WASHER5TH DRIV	1
9-11	SHIM	1
9-12	SHIM	1
9-13	SHIM	1
9-14	SHIM	1
9-2	SHIMSEC DRIVEN	1
9-3	SHIMSEC DRIVEN	1
9-4	SHIM 0.7	1
9-5	SHIM	1
9-6	SHIM 0.8	1
9-7	SHIM	1
9-8	SHIM 0.9	1
9-9	SHIM	1
10	OIL SEAL (34X52X9)	1
11	CIRCLIP	1
12	SHAFTREAR FINA	1
13	Деталь	1
14	B1 25X62X17 BEA	2
16-1	JOINTREAR FINA	1
17-1	COVEROUTPUT OI	2
18	COVERUNIVERSAL	2
19	BOOTUNIVERSAL	2
20	BANDBOOT	2
21	RINGSNAP	2
22	CIRCLIP	2
23	SHAFT COMPPROP	1
24	COUPLINGPROP S	1
25	Шарнир продольного вала	1
26	.SNAP RING	4
27	.JOINT SET	1
28	..CIRCLIP	4
29	BOLT	6
30	NUTWHEEL RIM	6
31	PROTECTORPROPE	1
32	BOLT	2
33	WASHERLOCK	2
34	WASHER 6.3X15X1	2
35	NUT	2
36	BOOTPROP SHAFT	1
37	YOKEFR DRIVE O	1
38	PLATE	1
39	COLLAROUTPUT O	1
40	PLATEOUTPUT YO	1
41	O RING D:1 ID:2	1
42	YOKERR DRIVE O	1
43	.PLATE OUTPUT	1
44	YOKE COMPPROP	1
45-1	YOKEPROP SHAFT	1
45-2	YOKEPROP SHAFT	1
46	NUT	1
47	WASHER SEC DRIV	1
