| № | Наименование | Примечание | Кол-во |
|---|---|---|---|

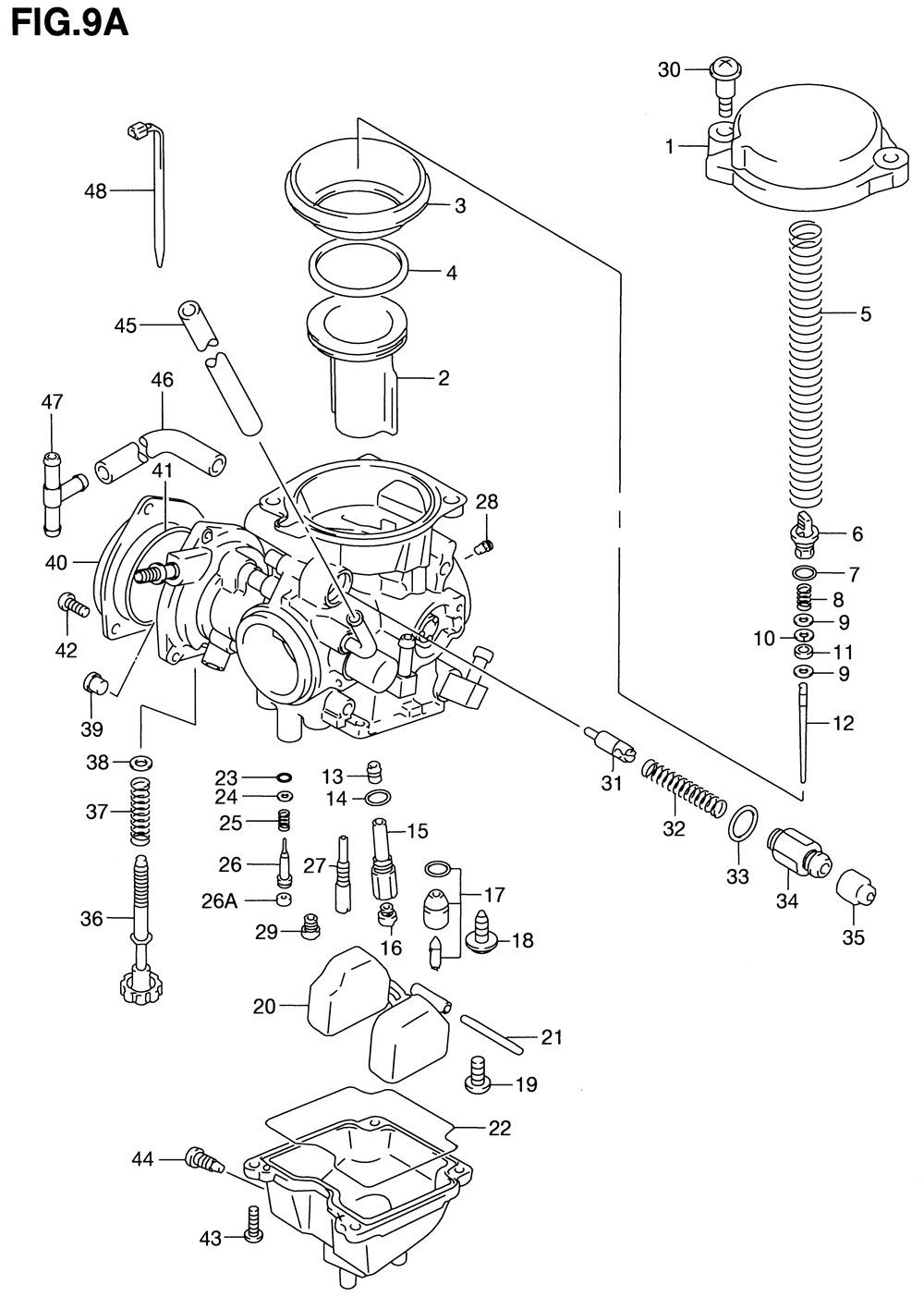

| CARBURETOR ASSY | 1 | ||
| CARBURETOR ASSY | 1 | ||
| 1 | COVERDIAPHRAGM | 1 | |
| 2 | VALVEPISTON | 1 | |
| 3 | DIAPHRAGM | 1 | |
| 4 | RING | 1 | |
| 5 | SPRING | 1 | |
| 6 | HOLDER | 1 | |
| 7 | 0 RING D:1.9 ID | 1 | |
| 8 | SPRING | 1 | |
| 9 | WASHER | 2 | |
| 10 | E RING JET NOZ | 1 | |
| 11 | RING | 1 | |
| 12-1 | NEEDLEJET | 1 | |
| 13 | JETNEEDLE(P-0M | 1 | |
| 14 | O RING | 1 | |
| 15 | HOLDERJET | 1 | |
| 16 | JETMAIN | 1 | |
| 17 | VALVE ASSY NEE | 1 | |
| 18 | SCREW | 1 | |
| 19 | SCREW | 1 | |
| 20 | FLOAT ASSY | 1 | |
| 21 | FLOAT PIN | 1 | |
| 22 | GASKET | 1 | |
| 23 | O RING | 1 | |
| 24 | WASHER | 1 | |
| 25 | SPRING | 1 | |
| 26 | ADJUSTER | 1 | |
| 26A | PLUG | 1 | |
| 27 | JET PILOT 15 | 1 | |
| 28 | JETAIR(160) | 1 | |
| 29 | M/J 67.5 (N1022 | 1 | |
| 30 | SCREW | 2 | |
| 31 | PLUNGER ASSY | 1 | |
| 32 | SPRING | 1 | |
| 33 | O RING | 1 | |
| 34 | HOLDERGUIDE | 1 | |
| 35 | CARBURETOR CAP | 1 | |
| 36 | ADJUST SCREW AS | 1 | |
| 37 | THROTTLE STOP S | 1 | |
| 38 | O RING | 1 | |
| 39 | GUIDE CABLE | 1 | |
| 40 | COVER THROTTLE | 1 | |
| 41 | O-RING | 1 | |
| 42 | SCREW | 3 | |
| 43 | SCREW | 4 | |
| 44 | PLUG DRAIN | 1 | |
| 45 | HOSE4.5X8X650 | 1 | |
| 46 | HOSE7X11 | 1 | |
| 47 | UNION3 WAY | 1 | |
| 48 | CLAMP | 1 |
