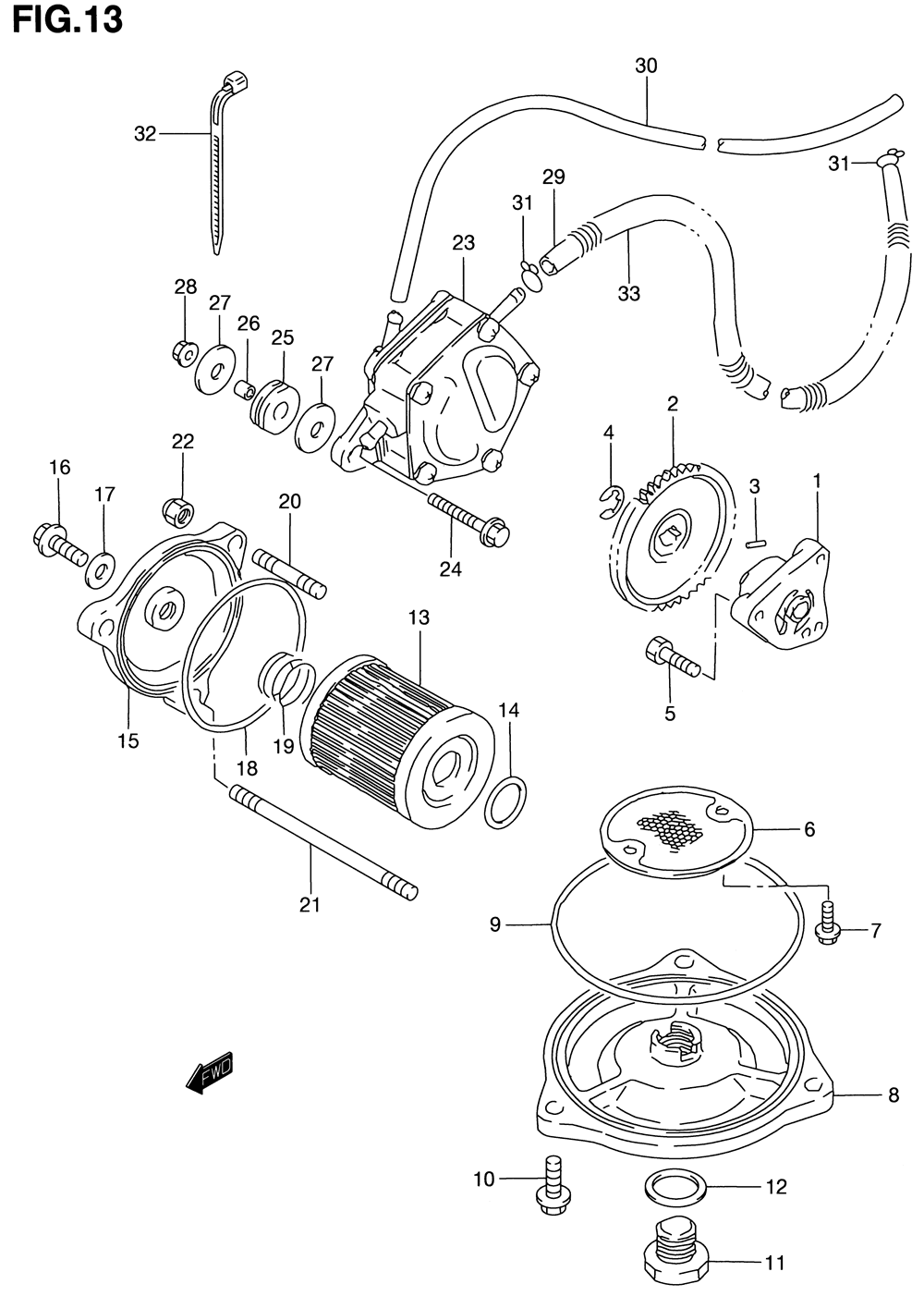

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | PUMP ASSYENG O | 1 | |
| 2 | GEAROIL PUMP D | 1 | |
| 3 | ROTOR DRIVE PIN | 1 | |
| 4 | E RING | 1 | |
| 5 | SCREW | 3 | |
| 6 | STRAINERENGINE | 1 | |
| 7 | SCREW | 2 | |
| 8 | CAPOIL STRAINE | 1 | |
| 9 | O RING OIL STR | 1 | |
| 10 | BOLT | 3 | |
| 11 | DRAIN PLUG | 1 | |
| 12 | GASKET | 1 | |
| 13 | Фильтр масляный | 1 | |
| 14 | ENG OIL PUMP O | 1 | |
| 15 | CAPOIL FILTER | 1 | |
| 16 | BOLT | 1 | |
| 17 | GASKET | 1 | |
| 18 | Упл.кольцо SUZUKI [ORG] | 1 | |
| 19 | TORQUE RING SPR (0010 per pack) | 1 | |
| 20 | BOLTSTUD | 2 | |
| 21 | STUD 6 X 75 | 1 | |
| 22 | NUT | 3 | |
| 23-1 | PUMP ASSYFUEL | 1 | |
| 23-2 | PUMP ASSYFUEL | 1 | |
| 24-1 | BOLT | 2 | |
| 24-2 | BOLT | 2 | |
| 25 | CUSHION FUEL TA | 2 | |
| 26 | FENDER FRONT SP | 2 | |
| 27 | WASHER | 4 | |
| 28 | NUT | 2 | |
| 29-1 | HOSE (MODEL XL:2000->750) | 1 | |
| 29-2 | HOSE5.8X12.2X1 (MODEL Y/K1/K2L:1000->800) | 1 | |
| 30-1 | HOSE | 1 | |
| 30-2 | HOSEVACUUM FUE | 1 | |
| 31-1 | FUEL HOSE CLAMP | 2 | |
| 31-2 | CLIP | 2 | |
| 32 | CLAMP | 1 | |
| 33-1 | (CA) SPRING | 2 | |
| 33-2 | SPRINGFUEL HOS | 1 |
