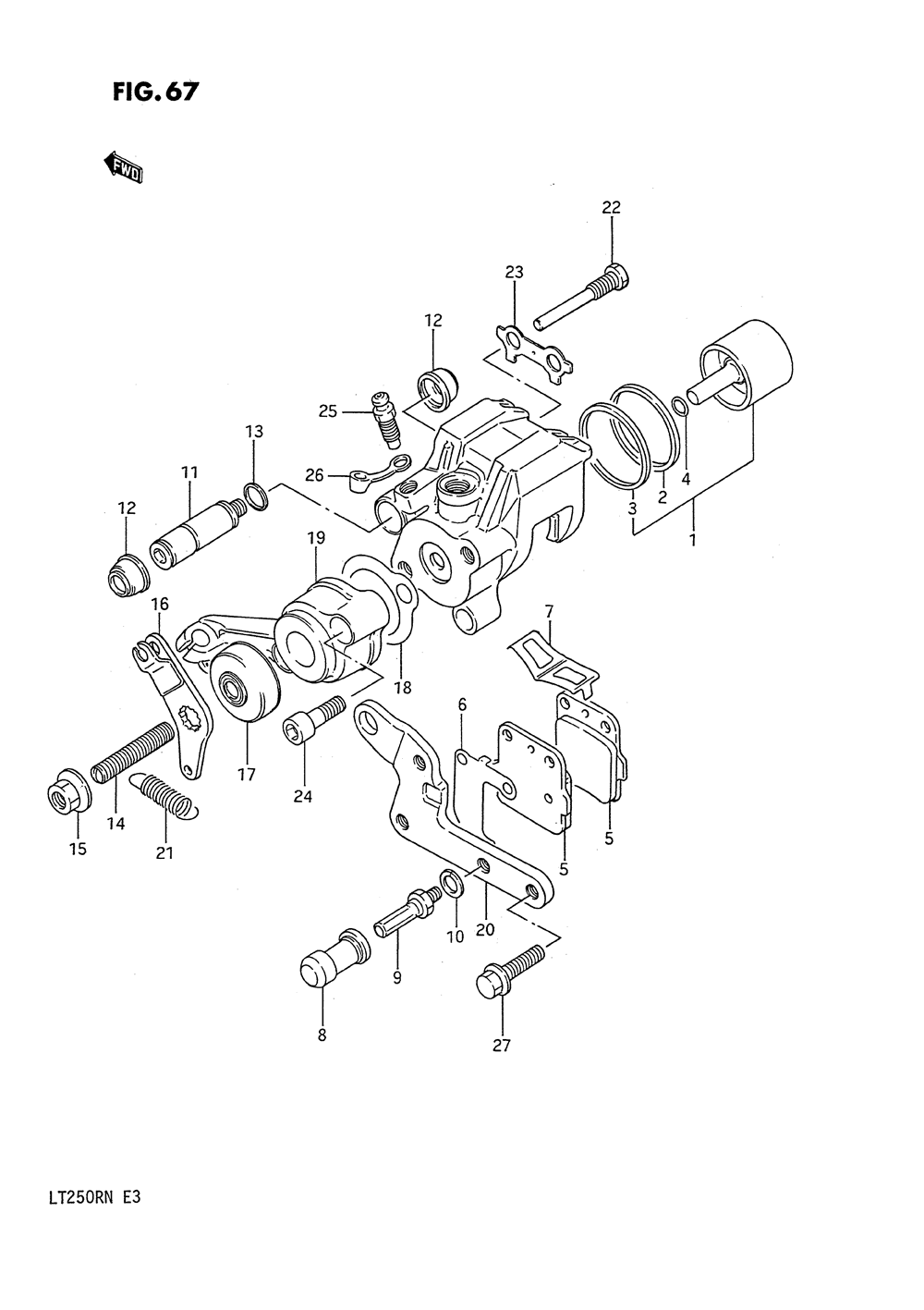

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| CALIPER ASSY R | 1 | ||
| CALIPER ASSYRE | 1 | ||
| 1 | PISTON SET | 1 | |
| 2 | Деталь | 1 | |
| 3 | SEAL SET PISTO | 1 | |
| 4 | O RING | 1 | |
| 5-1 | PAD SET | 2 | |
| 5-2 | PAD SET | 2 | |
| 6 | SHIM | 1 | |
| 7 | SPRING | 1 | |
| 8 | BOOT | 1 | |
| 9 | BOLT | 1 | |
| 10 | WASHER | 1 | |
| 11 | PIN | 1 | |
| 12 | BOOT | 2 | |
| 13 | SPRING | 1 | |
| 14 | ADJUST BOLT | 1 | |
| 15 | WASHER | 1 | |
| 16 | ARM | 1 | |
| 17 | BOOT | 1 | |
| 18 | PACKING | 1 | |
| 19-1 | Деталь | 1 | |
| 20 | BRACKET | 1 | |
| 21 | SPRING | 1 | |
| 22 | PIN | 2 | |
| 23 | WASHER | 1 | |
| 24 | BOLT | 2 | |
| 25 | BLEEDER | 1 | |
| 26 | CAP BLEEDER | 1 | |
| 27 | BOLT | 2 |
