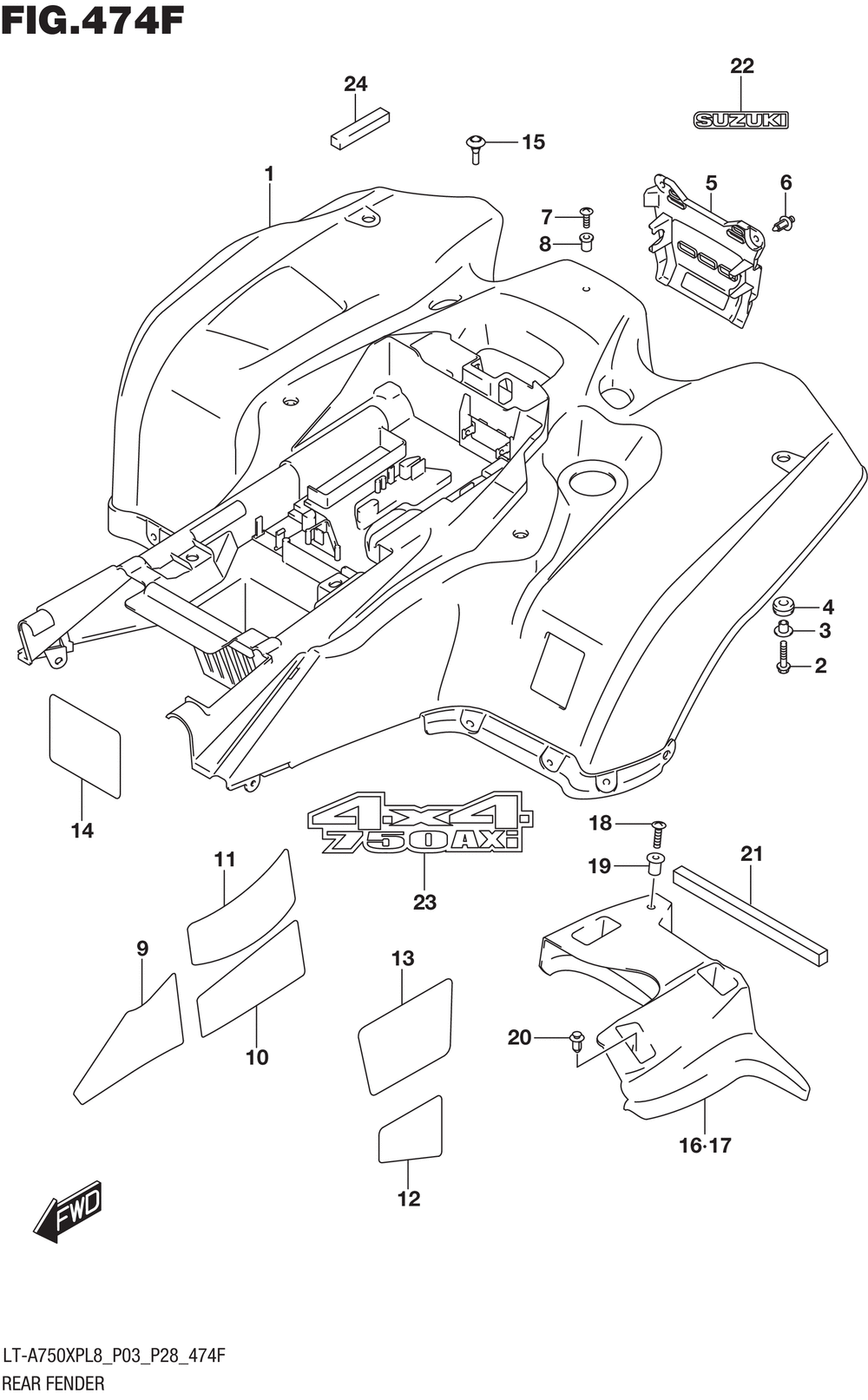

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FENDER REAR (BLACK) | 1 | |
| 2 | BOLT | 2 | |
| 3 | WASHER | 2 | |
| 4 | CUSHION | 2 | |
| 5 | COVER REAR | 1 | |
| 6 | CLIP | 2 | |
| 7 | SCREW | 1 | |
| 8 | NUT | 1 | |
| 9 | SHIELD REAR FENDER | 1 | |
| 10 | SHIELD REAR FENDER | 1 | |
| 11 | SHIELD REAR FENDER | 1 | |
| 12 | SHIELD REAR FENDER | 1 | |
| 13 | SHIELD REAR FENDER | 1 | |
| 14 | SHIELD REAR FENDER | 1 | |
| 15 | PLUG | 1 | |
| 18 | SCREW | 2 | |
| 19 | NUT | 2 | |
| 20 | CLIP | 6 | |
| 22 | EMBLEM SUZUKI (GRAY) | 1 | |
| 23 | EMBLEM REAR FENDER | 2 | |
| 24 | CUSHION TOOL | 1 |
