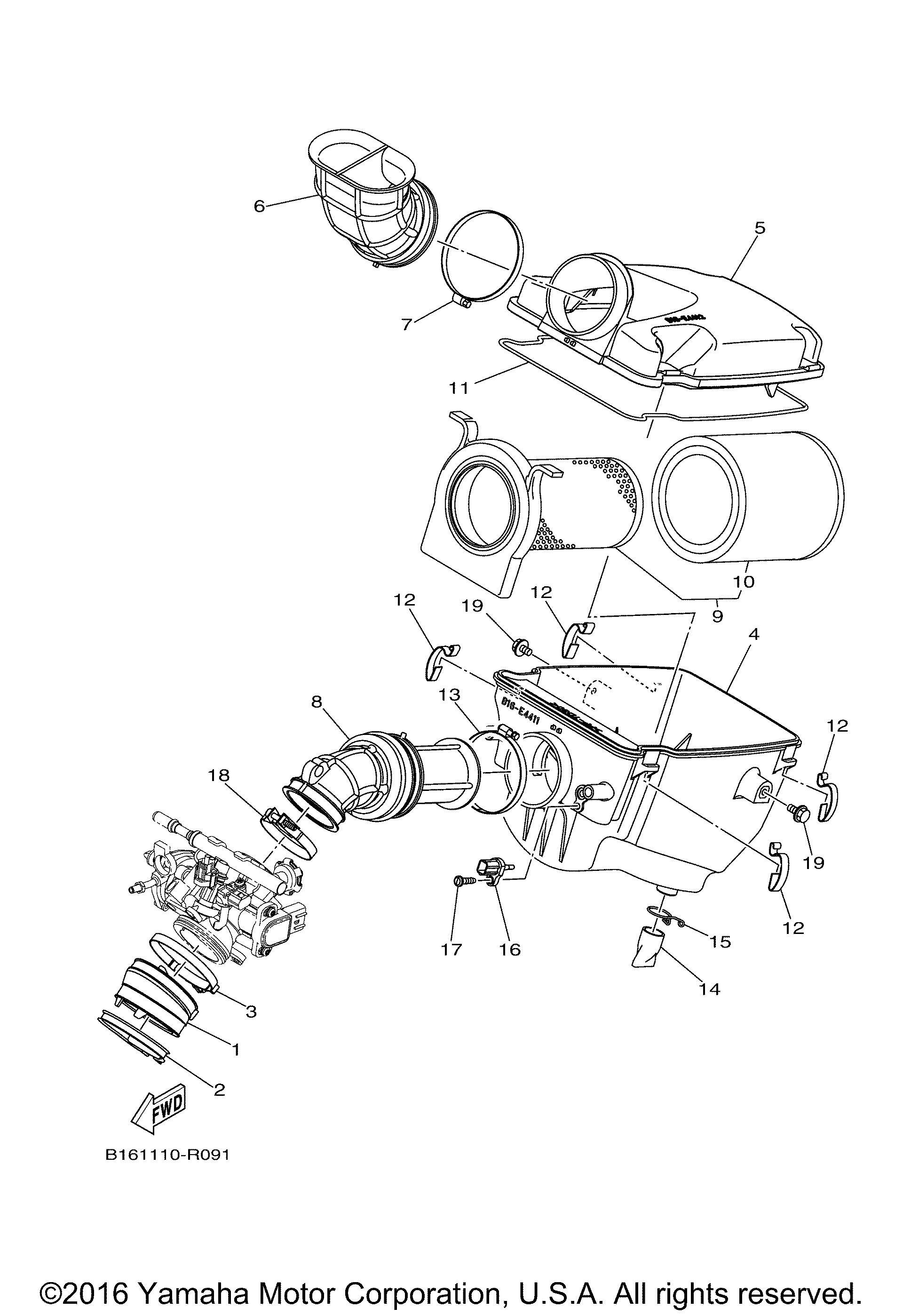

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | JOINT CARBURETOR | 1 | |
| 2 | CLAMP HOSE 2 | 1 | |
| 3 | HOSE CLAMP ASSY | 1 | |
| 4 | CASE AIR CLEANER | 1 | |
| 5 | CAP CLEANER CASE | 1 | |
| 6 | DUCT | 1 | |
| 7 | BAND | 1 | |
| 8 | JOINT AIR CLEANER | 1 | |
| 9 | ELEMENT ASSY AIR | 1 | |
| 11 | SEAL | 1 | |
| 12 | CLIP CAP FITTING | 4 | |
| 13 | BAND | 1 | |
| 14 | PIPE DRAIN | 1 | |
| 15 | CLIP | 1 | |
| 16 | AIR TEMP SENSOR | 1 | |
| 17 | SCREWTAPPING | 1 | |
| 18 | HOSE CLAMP ASSY | 1 | |
| 19 | BOLTFLANGE | 2 |
