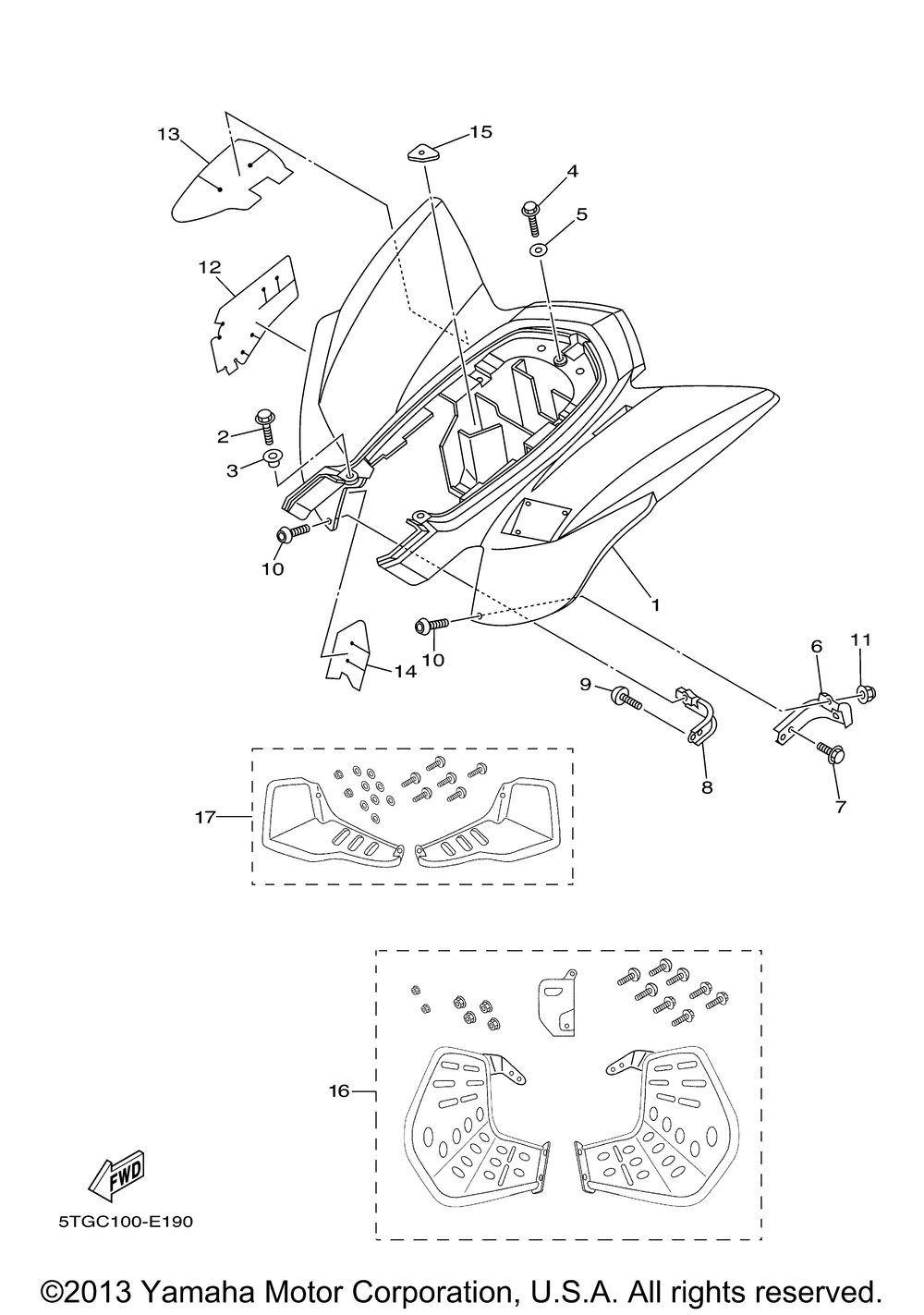

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | REAR FENDER COMP. | 1 | |
| 2 | BOLT FLANGE | 2 | |
| 3 | COLLAR | 2 | |
| 5 | WASHER PLATE | 1 | |
| 6 | STAY REAR | 1 | |
| 7 | BOLT FLANGE | 2 | |
| 8 | STAY REAR | 1 | |
| 9 | BOLT BUTTON HEAD | 2 | |
| 10 | BOLT | 2 | |
| 11 | NUT-U | 1 | |
| 12 | COVER REAR FENDER 1 | 1 | |
| 13 | COVER REAR FENDER 2 | 1 | |
| 14 | COVER REAR FENDER 3 | 1 | |
| 15 | DAMPER 2 | 1 | |
| 16 | FOOTWELL KIT BLACK HARDWARE INCLUDED | 1 | |
| 17 | PLASTIC FOOTWELL EXT PLUS HARDWEAR | 1 |
