Yamaha KODIAK 4WD YFM400FWBL/YFM400FWBL KODIAK 4WD YFM400FWBL/YFM400FWBL FRONT DIFFERENTIAL

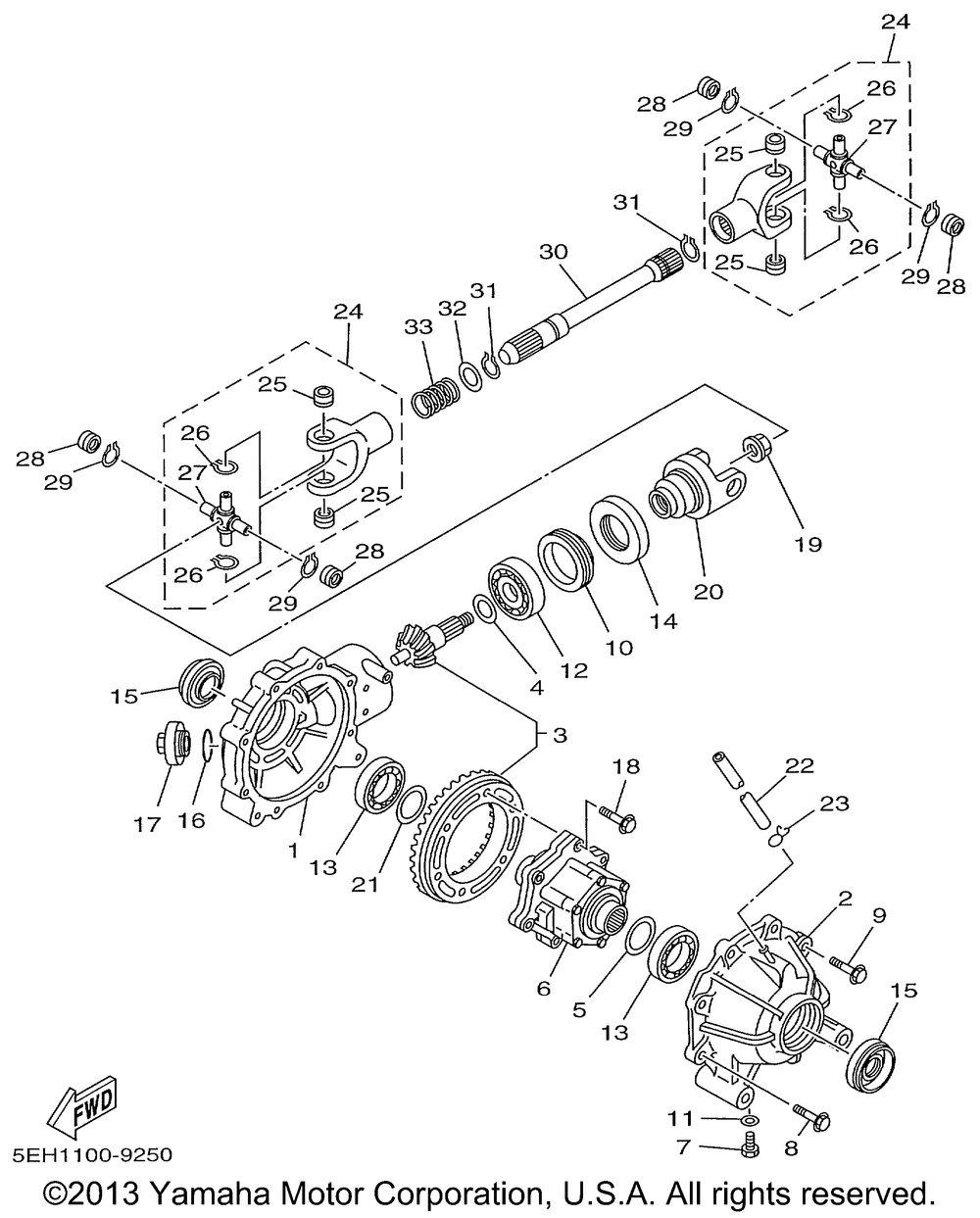

FRONT DIFFERENTIAL
№ Наименование Примечание Кол-во
1 HOUSINGSHAFT DRIVE 1
2 HOUSINGBEARING 2 1
3 PINIONDRIVE GEAR SE 1
4 SHIMDRV.PIN 2.18T (2.18T) UR 1
4 SHIMDRV.PIN 1.94T (1.94T) UR 1
4 SHIMDRV.PIN 1.88T (1.88T) UR 1
4 SHIMDRV.PIN 1.82T (1.82T) UR 1
4 SHIMDRV.PIN 2.00T (2.00T) UR 1
4 SHIMDRV.PIN 2.06T (2.06T) UR 1
4 SHIMDRV.PIN 2.12T (2.12T) UR 1
5 SHIMRING GEAR (0.75 (0.75T) UR 1
5 SHIMRING GEAR (0.80 (0.80T) UR 1
5 SHIMRING GEAR (1.35 (1.35T) UR 1
5 SHIMRING GEAR (0.90 (0.90T) UR 1
5 SHIMRING GEAR (0.95 (0.95T) UR 1
5 SHIMRING GEAR (1.00 (1.00T) UR 1
5 SHIMRING GEAR (1.05 (1.05T) UR 1
5 SHIMRING GEAR (1.10 (1.10T) UR 1
5 SHIMRING GEAR (1.15 (1.15T) UR 1
5 SHIMRING GEAR (1.20 (1.20T) UR 1
5 SHIMRING GEAR (1.30 (1.30T) UR 1
5 SHIMRING GEAR (1.40 (1.40T) UR 1
5 SHIMRING GEAR (1.45 (1.45T) UR 1
5 SHIMRING GEAR (1.50 (1.50T) UR 1
5 SHIMRING GEAR (1.25 (1.25T) UR 1
5 SHIMRING GEAR (1.60 (1.60T) UR 1
5 SHIMRING GEAR (0.85 (0.85T) UR 1
5 SHIMRING GEAR (.05T (0.50T) UR 1
5 SHIMRING GEAR (.55T (0.55T) UR 1
5 SHIM RING GEAR (1.5 (1.55T) UR 1
5 SHIMRING GEAR (0.60 (0.60T) UR 1
5 SHIMRING GEAR (0.65 (0.65T) UR 1
5 SHIMRING GEAR (0.70 (0.70T) UR 1
6 LIMITED SLIP DIFF. A (USA) 1
7 BOLTWASHER BASED 1
8 BOLT WASHER BASED 6
9 BOLT WASHER BASED 2
10 NUT 1
11 WASHERPLATE 1
12 BEARING 1
13 BEARING 2
14 OIL SEAL 1
15 OIL SEAL 2
16 O-RING 1
17 COVERCYL.HEAD 2 1
18 BOLTWASHER BASED 6
19 NUT 1
20 YOKE JOINT 2 1
21 SHIM THRUST (1.60T) UR 1
21 SHIM THRUST (1.20T) UR 1
21 SHIM THRUST (0.50T) UR 1
21 SHIM THRUST (0.55T) UR 1
21 SHIM THRUST (0.60T) UR 1
21 SHIM THRUST (0.65T) UR 1
21 SHIM THRUST (0.75T) UR 1
21 SHIM THRUST (0.80T) UR 1
21 SHIM THRUST (0.85T) UR 1
21 SHIM THRUST (0.90T) UR 1
21 SHIM THRUST (0.95T) UR 1
21 SHIM THRUST (1.00T) UR 1
21 SHIM THRUST (1.05T) UR 1
21 SHIM THRUST (1.10T) UR 1
21 SHIM THRUST (1.10T) UR 1
21 SHIM THRUST (0.70T) UR 1
21 SHIM THRUST (1.25T) UR 1
21 SHIM THRUST (1.30T) UR 1
21 SHIM THRUST (1.35T) UR 1
21 SHIM THRUST (1.40T) UR 1
21 SHIM THRUST (1.45T) UR 1
21 SHIM THRUST (1.50T) UR 1
21 SHIM THRUST (1.55T) UR 1
22 HOSE (L590) 1
23 CLIPSCISSOR 1
24 CROSS JOINT COMP 3 (U49) 1
25 BEARINGSPECIAL 2
26 CIRCLIPOUTER (5 per pack) 2
27 SPIDER 1
30 SHAFT DRIVE 2 1
31 CIRCLIPS-TYPE (5 per pack) 2
32 WASHERPLATE (3HN) 1
33 SPRINGCOMPRESSION 1
