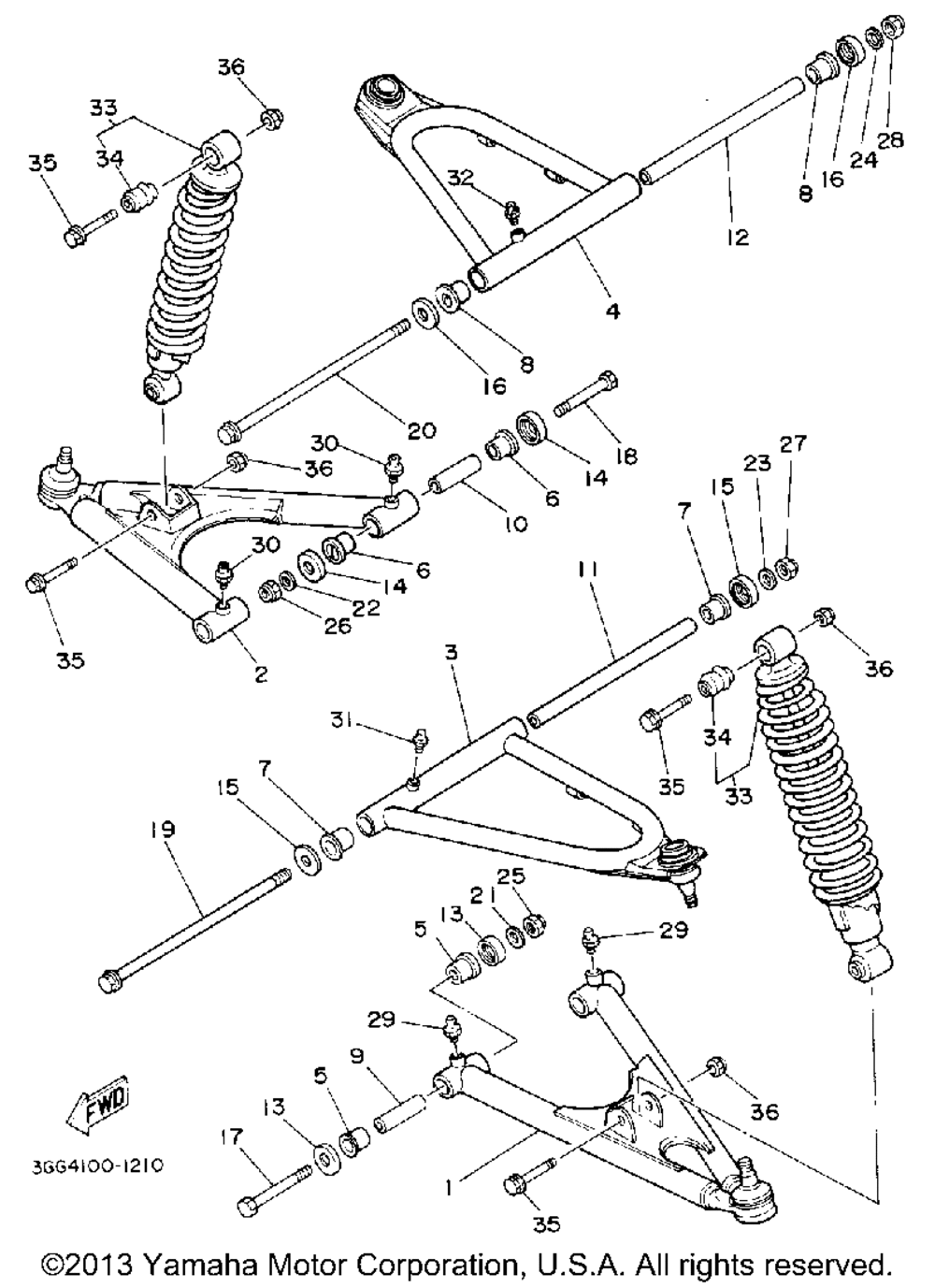

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FRT LWR ARM CMPL (L) (LEFT) SL | 1 | |
| 2 | FRT LWR ARM CMPL (R) (RIGHT) SL | 1 | |
| 3 | FRT. UPPER ARM (L) (LEFT) SL | 1 | |
| 4 | FRT. UPPER ARM (R) (RIGHT) SL | 1 | |
| 5 | BUSHSOLID | 4 | |
| 9 | COLLAR | 2 | |
| 11 | COLLAR | 1 | |
| 13 | COVER THRUST 1 | 4 | |
| 17 | BOLT | 2 | |
| 19 | BOLTWASHER BASED | 1 | |
| 21 | WASHERPLATE | 2 | |
| 25 | NUTSELF-LOCKING | 2 | |
| 29 | NIPPLEGREASE | 2 | |
| 33 | SHOCK ABSORBER ASSY VIVID MAGENTA SOLID 2 | 2 | |
| 34 | DAMPER BUSH B | 1 | |
| 35 | BOLTWASHER BASED | 4 | |
| 36 | NUTSELF-LOCKING | 4 |
