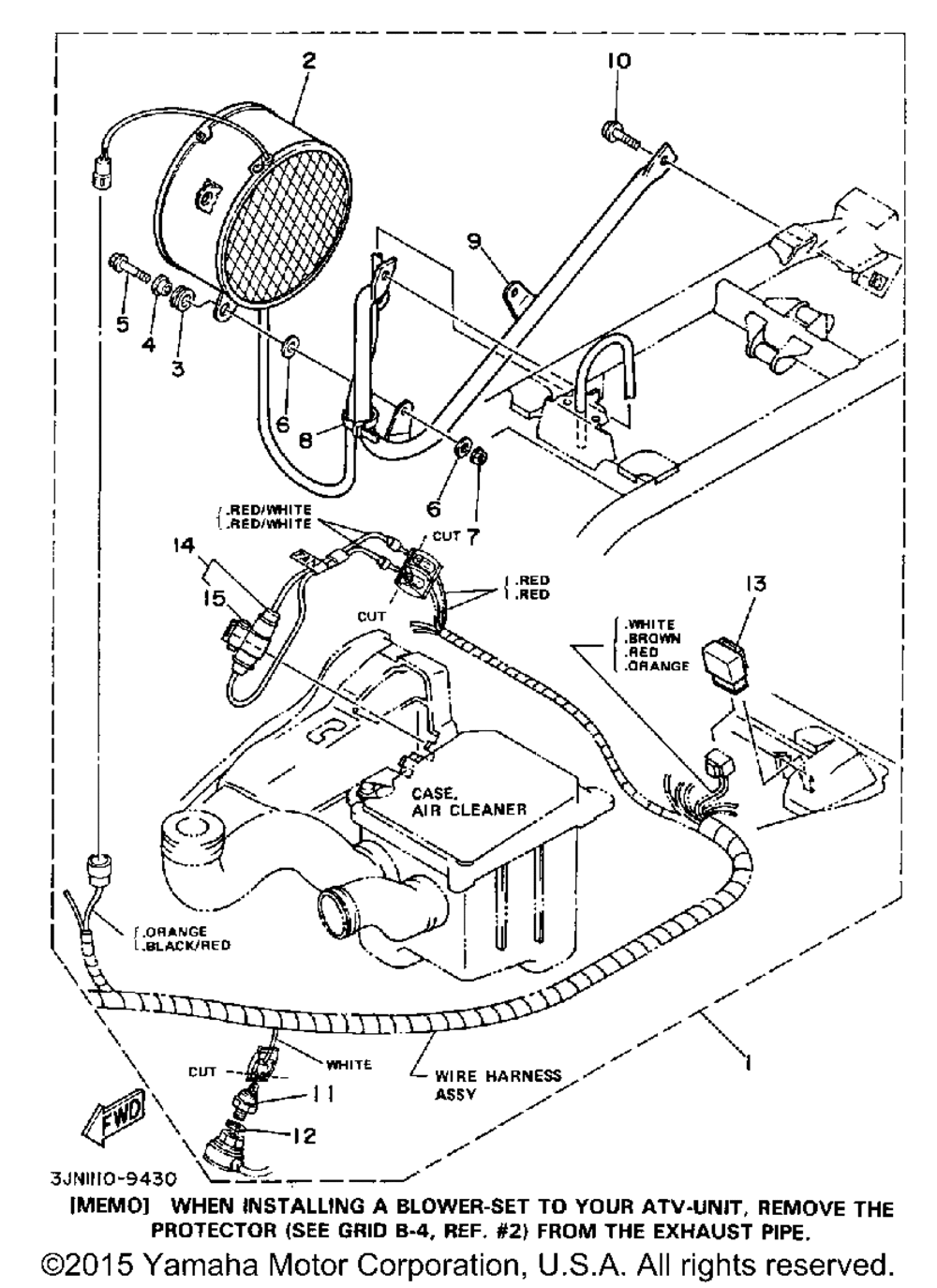

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | BLOWER SET | 1 | |
| 2 | BLOWER ASSY | 1 | |
| 3 | GROMMET | 3 | |
| 4 | COLLAR | 3 | |
| 5 | BOLTFLANGE | 3 | |
| 6 | WASHERPLATE | 6 | |
| 7 | NUT-U | 3 | |
| 8 | BANDSWITCH CORD | 1 | |
| 10 | BOLT FLANGE | 2 | |
| 11 | THERMO SWITCH ASSY M | 1 | |
| 12 | WASHERPLATE | 1 | |
| 13 | RELAY ASSY (ACA12115-1) | 1 | |
| 14 | FUSE HOLDER ASSY BLOWER SYSTEM O | 1 | |
| 15 | FUSE (10 AMP 30 MM (10A) | 2 |
