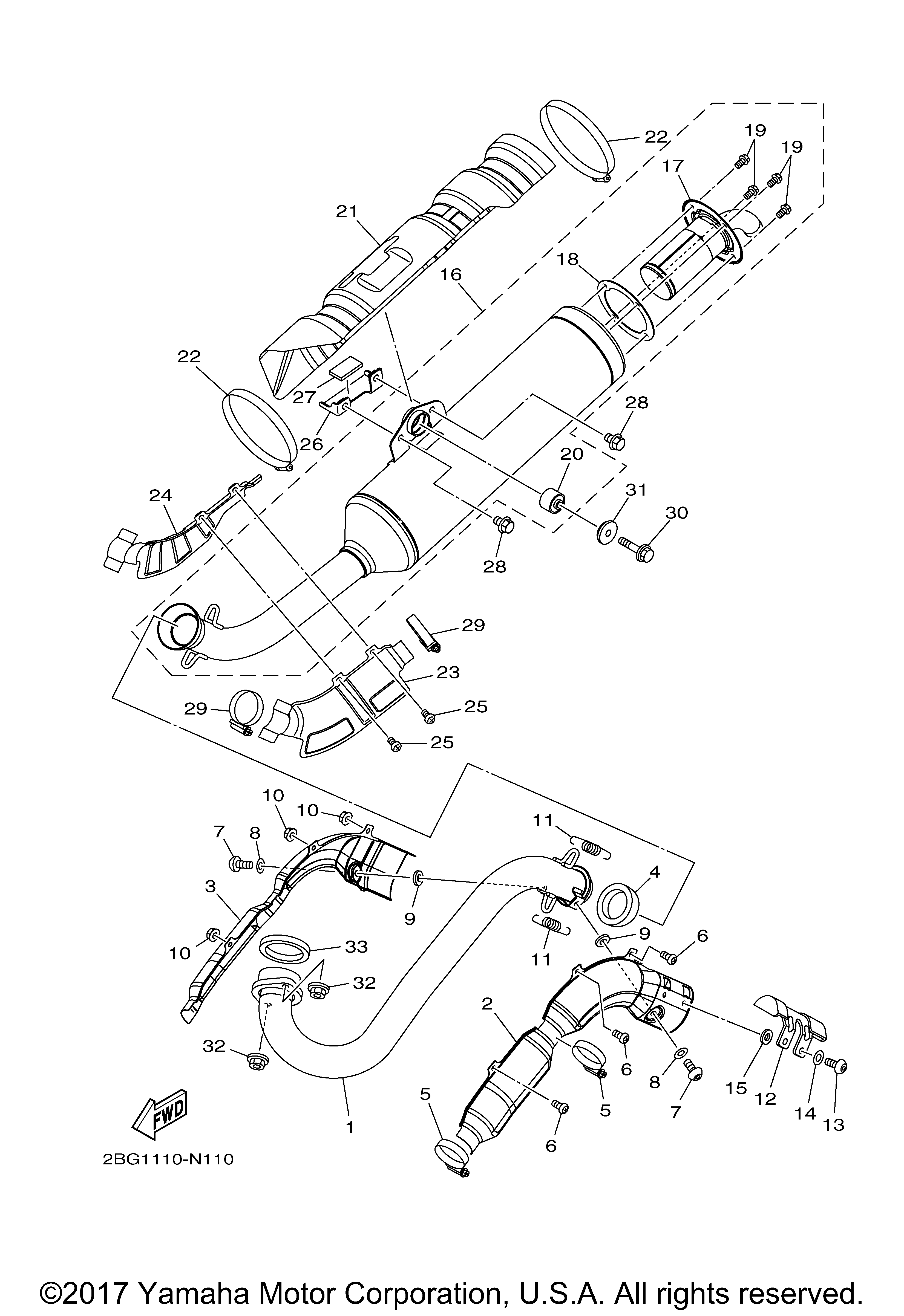

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | PIPE EXHAUST 1 | 1 | |
| 2 | COVER EXHAUST | 1 | |
| 3 | PROTECTOR EXT. PI | 1 | |
| 4 | GASKETMUFFLER | 1 | |
| 5 | HOSE CLAMP ASSY | 2 | |
| 6 | SCREWPAN | 3 | |
| 7 | BOLT BUTTON HEAD | 2 | |
| 8 | WASHER (5 per pack) | 2 | |
| 9 | WASHER PLATE | 2 | |
| 10 | NUTFLANGE | 3 | |
| 11 | SPRING TENSION | 2 | |
| 12 | PROTECTOR SILENCE | 1 | |
| 13 | BOLT BUTTON HEAD | 2 | |
| 15 | WASHER PLATE | 2 | |
| 16 | MUFFLER COMP. 1 | 1 | |
| 17 | SPARK ARRESTER ASS | 1 | |
| 18 | GASKET SILENCER | 1 | |
| 19 | BOLT FLANGE | 4 | |
| 20 | DAMPERFOOTREST | 1 | |
| 21 | PROTECTOR MUFFLER | 1 | |
| 22 | HOSE CLAMP ASSY | 2 | |
| 23 | PROTECTOR ASSY 1 | 1 | |
| 24 | PROTECTOR ASSY. 2 | 1 | |
| 26 | STOPPER 1 | 1 | |
| 27 | MAT 1 | 1 | |
| 28 | BOLT FLANGE | 2 | |
| 30 | BOLT FLANGE | 1 | |
| 31 | WASHER | 1 | |
| 32 | Гайка с фланцем | 2 | |
| 33 | Кольцо уплотнительное выхлопной системы | 1 |
