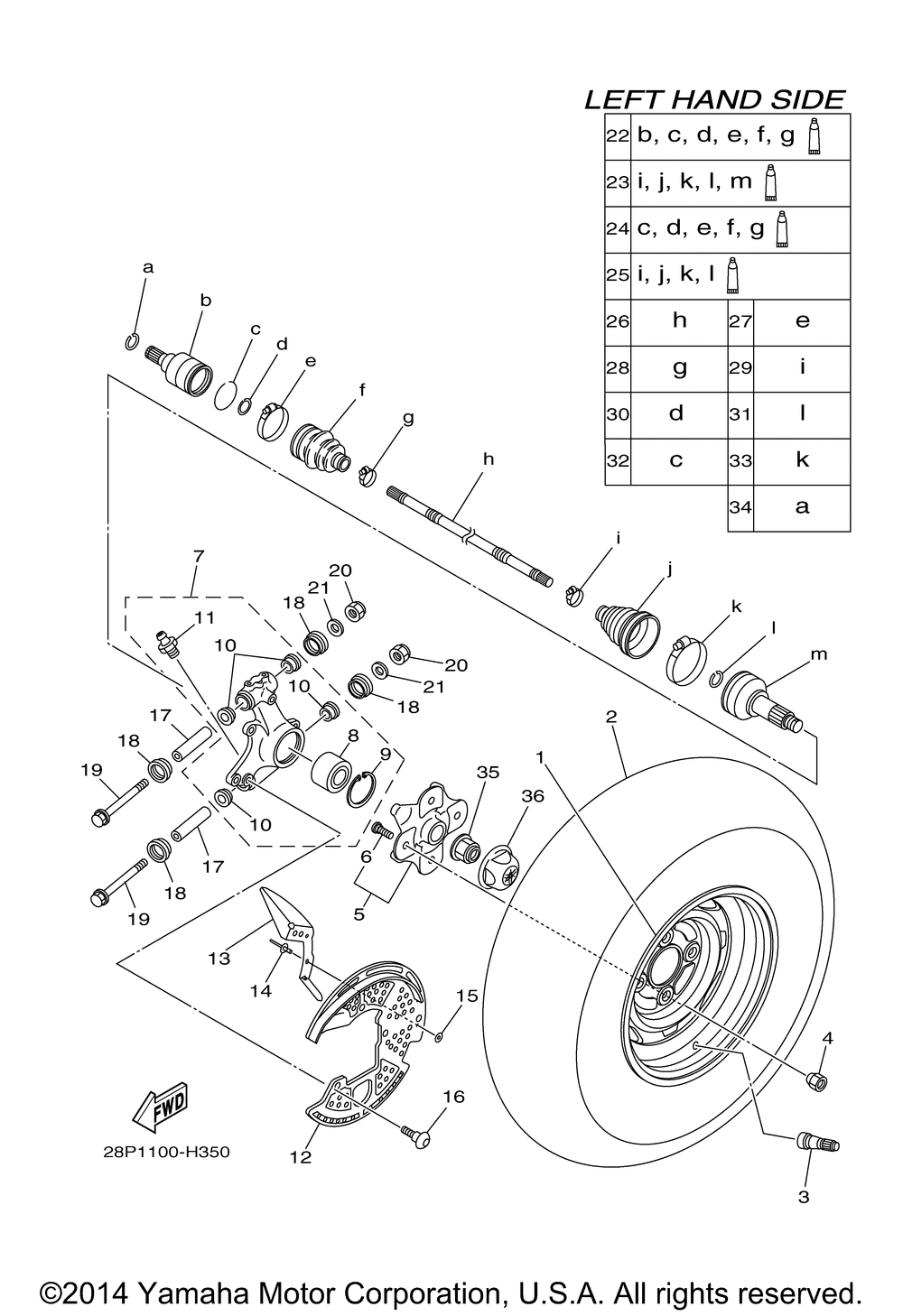

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | REAR WHEEL COMP. | 1 | |
| 2 | AT25X10.00-12 MU20 (AT25X10-12** KT425T/L N) DUNLOP | 1 | |
| 3 | VALVERIM (TR412) TAIHEIYO | 1 | |
| 4 | NUT | 4 | |
| 5 | HUB FRONT | 1 | |
| 6 | BOLT SERRATION | 4 | |
| 7 | REAR KNUCKLE ASSY | 1 | |
| 8 | BEARING | 1 | |
| 9 | . .CIRCLIP | 1 | |
| 10 | BUSH SOLID | 4 | |
| 11 | NIPPLEGREASE | 2 | |
| 12 | RING WHEEL 1 (LEFT) | 1 | |
| 13 | PLATE 1 | 1 | |
| 14 | RIVETBLIND (4.7X16.4 BLACK) | 2 | |
| 15 | WASHER PLATE | 2 | |
| 16 | SCREW | 3 | |
| 17 | SPACER | 2 | |
| 18 | COVER THRUST 1 | 4 | |
| 19 | BOLT FLANGE | 2 | |
| 20 | NUT SELF-LOCKING | 2 | |
| 21 | WASHER PLATE | 2 | |
| 22 | DOUBLE OFF SET JOINT | 1 | |
| 23 | BALL JOINT SET | 1 | |
| 24 | BOOT SET(DOUBLE OFFS (DOUBLE OFFSET JOINT) | 1 | |
| 25 | BOOT SET (BALL JOINT (BALL JOINT) | 1 | |
| 26 | SHAFT | 1 | |
| 27 | BOOT BAND(DOUBLE OFF (DOUBLE OFFSET JOINT) | 1 | |
| 28 | BOOT BAND (SMALL) (SMALL) | 1 | |
| 29 | BOOT BAND (SMALL) (SMALL) | 1 | |
| 30 | SNAP RING | 1 | |
| 31 | CIRCLIP | 1 | |
| 32 | CIRCLIP | 1 | |
| 33 | BOOT BAND(DOUBLE OFF (DOUBLE OFFSET JOINT) | 1 | |
| 34 | CLIP SPRING | 1 | |
| 35 | NUT | 1 | |
| 36 | CAP WHEEL | 1 |
