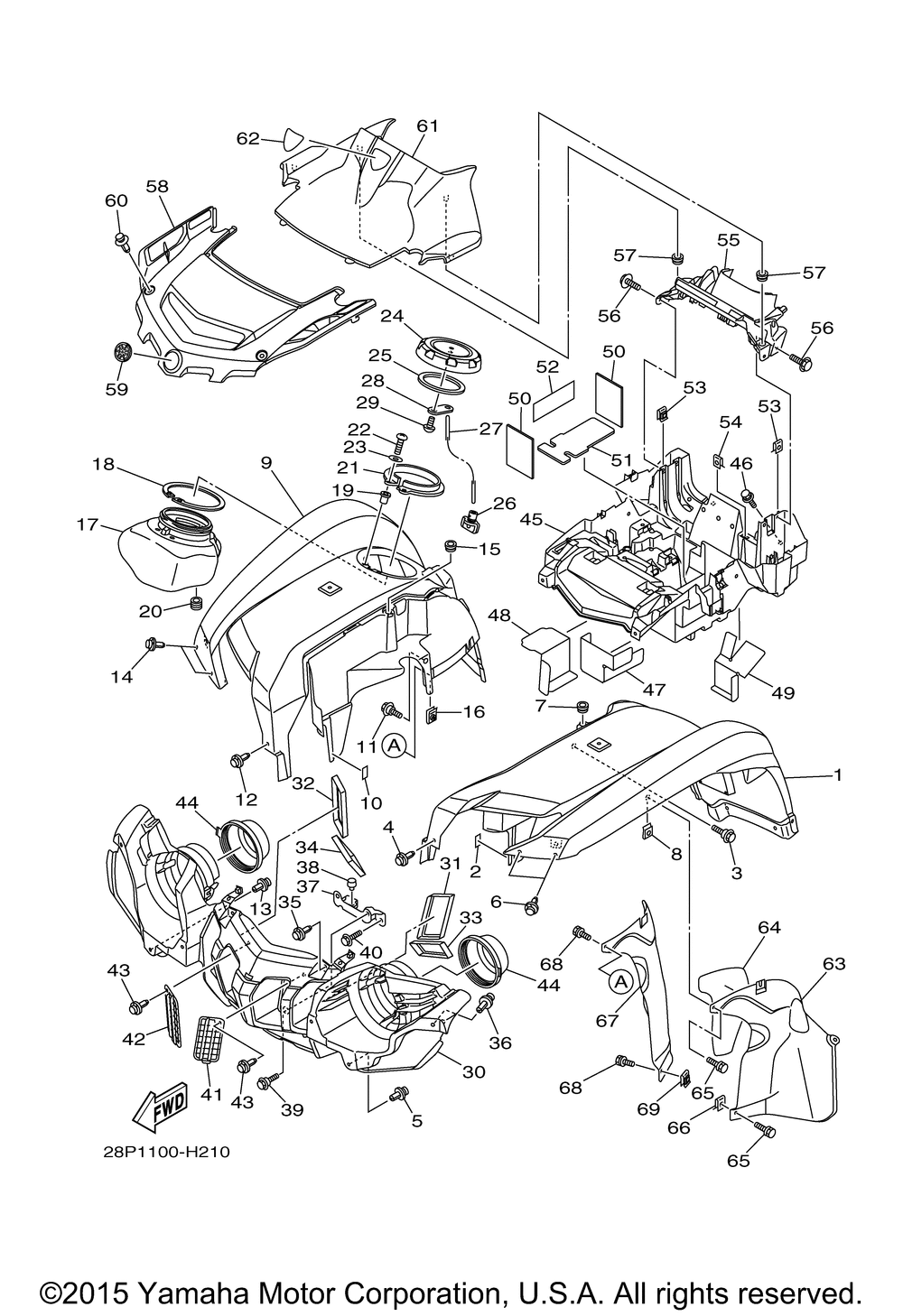

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FRONT FENDER COMP. | 1 | |
| 2 | DAMPER 1 | 1 | |
| 3 | BOLT | 1 | |
| 4 | RIVET | 1 | |
| 7 | GROMMET | 1 | |
| 8 | NUT SPRING (4ES) | 1 | |
| 9 | FENDER FRONT 2 UR FOR PDG | 1 | |
| 17 | BOX 1 | 1 | |
| 18 | SEAL BOX 1 | 1 | |
| 19 | NUTSPEC'L SHAPE (5 per pack) | 2 | |
| 20 | GROMMET | 1 | |
| 21 | HOLDER | 1 | |
| 22 | SCREW PAN HEAD | 2 | |
| 23 | WASHER (5 per pack) | 2 | |
| 24 | CAP | 1 | |
| 25 | SEAL | 1 | |
| 26 | PLUG DRAIN | 1 | |
| 27 | STOPPER OPEN | 1 | |
| 28 | PLATE 2 | 1 | |
| 29 | SCREWTAPPING | 1 | |
| 30 | GRILLE FRONT | 1 | |
| 31 | DAMPER 1 | 1 | |
| 32 | DAMPER 2 | 1 | |
| 33 | DAMPER 3 | 1 | |
| 34 | DAMPER 4 | 1 | |
| 35 | RIVET | 2 | |
| 37 | STAY LEG SHIELD | 1 | |
| 38 | STOPPER | 2 | |
| 40 | BOLT FLANGE | 2 | |
| 41 | GRILL AIR INTAKE 1 | 1 | |
| 42 | GRILL AIR INTAKE 2 | 1 | |
| 43 | RIVET | 2 | |
| 44 | CAP | 2 | |
| 45 | BOX BATTERY 1 | 1 | |
| 46 | BOLT WITH WASHER | 3 | |
| 47 | INSULATOR 1 | 1 | |
| 48 | INSULATOR 2 | 1 | |
| 49 | INSULATOR | 1 | |
| 50 | INSU. | 2 | |
| 51 | SEAT BATTERY | 1 | |
| 52 | DAMPER | 1 | |
| 54 | NUT SPRING | 2 | |
| 55 | PANEL CONSOLE 1 | 1 | |
| 57 | GROMMET | 2 | |
| 58 | PANEL FRONT | 1 | |
| 59 | TUNING FORK MARK | 1 | |
| 61 | LID | 1 | |
| 62 | EMBLEM 3D | 1 | |
| 63 | FENDER INNER | 1 | |
| 64 | SEAL 1 | 1 | |
| 67 | FENDER INNER 2 | 1 |
