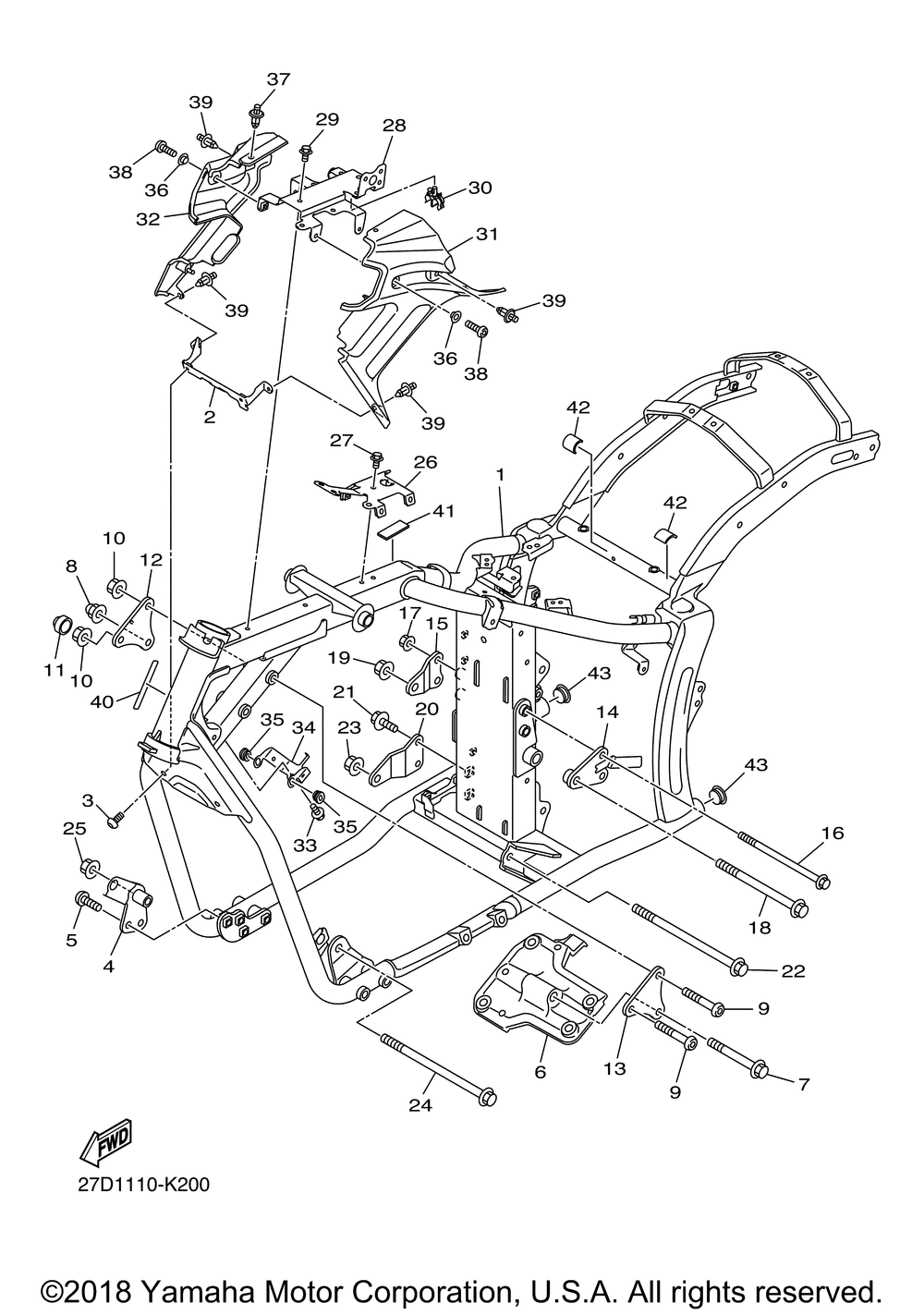

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FRAME COMP. | 1 | |
| 2 | BRKT. 10 | 1 | |
| 3 | BOLTBUTTON | 2 | |
| 4 | STAY ENGINE 7 | 1 | |
| 5 | BOLTHEX. SOCKET BUT | 2 | |
| 6 | STAY ENGINE 3 | 1 | |
| 7 | BOLT FLANGE | 1 | |
| 8 | NUT CROWN | 1 | |
| 9 | BOLTHEX. SOCKET BUT | 2 | |
| 10 | NUT SELF-LOCKING | 2 | |
| 11 | CAP | 1 | |
| 12 | BRACKET 11 | 1 | |
| 13 | BRKT. | 1 | |
| 14 | STAY ENGINE 5 | 1 | |
| 15 | STAY ENGINE 5 | 1 | |
| 16 | BOLT FLANGE | 2 | |
| 17 | NUTSELF LOCKING | 2 | |
| 18 | BOLT FLANGE | 1 | |
| 19 | NUT SELF-LOCKING | 1 | |
| 20 | STAY ENGINE 3 | 1 | |
| 21 | BOLT FLANGE | 2 | |
| 22 | BOLT FLANGE | 1 | |
| 24 | BOLT FLANGE | 1 | |
| 26 | BRACKET COIL | 1 | |
| 27 | BOLT FLANGE | 1 | |
| 28 | BRACKET FRONT UPPER | 1 | |
| 30 | CLAMP | 1 | |
| 31 | COVER SIDE 5 | 1 | |
| 32 | COVER SIDE 6 | 1 | |
| 33 | BOLTFLANGE (4MY) | 1 | |
| 34 | STAY SIDE COVER 2 | 1 | |
| 35 | GROMMET | 2 | |
| 36 | SPACER | 2 | |
| 37 | RIVET | 1 | |
| 38 | SCREWSPEC'L SHAPE | 2 | |
| 39 | RIVET | 4 | |
| 40 | PROTECTOR | 1 | |
| 41 | DAMPER (5 per pack) | 1 | |
| 42 | PROTECTOR | 2 | |
| 43 | PLUG | 2 |
