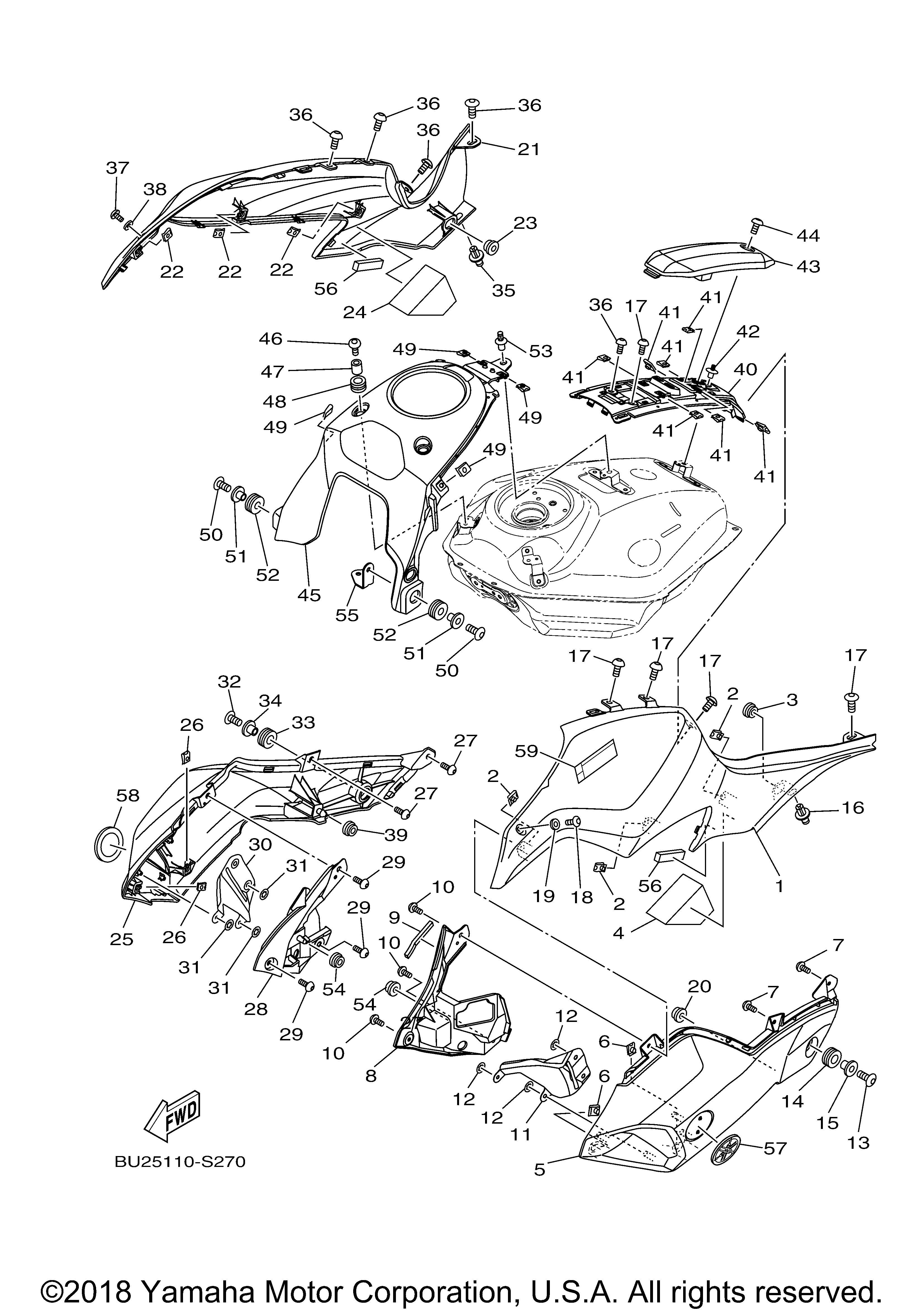

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | COVER SIDE 1 VRC1 | 1 | |
| 2 | NUT SPRING | 3 | |
| 3 | GROMMET | 1 | |
| 4 | DAMPER PLATE 5 | 1 | |
| 5 | SCOOP AIR 1 | 1 | |
| 7 | BOLT | 2 | |
| 8 | PANEL INNER 1 | 1 | |
| 9 | DAMPER PLATE | 1 | |
| 11 | GRILL AIR INTAKE | 1 | |
| 12 | NUTSPRING (5 per pack) | 4 | |
| 13 | BOLTHEXHEAD (59W) | 1 | |
| 14 | GROMMET | 1 | |
| 15 | COLLAR | 1 | |
| 16 | RIVET | 1 | |
| 18 | BOLTHEX. SOCKET BUT | 1 | |
| 19 | WASHERPLATE | 1 | |
| 20 | GROMMET | 1 | |
| 21 | COVER SIDE 2 VRC1 | 1 | |
| 24 | DAMPER PLATE 6 | 1 | |
| 25 | SCOOP AIR 2 | 1 | |
| 28 | PANEL INNER 2 | 1 | |
| 30 | GRILL AIR INTAKE | 1 | |
| 40 | COVER TOP VRC1 | 1 | |
| 43 | COVER 1 | 1 | |
| 44 | BOLT | 1 | |
| 45 | COVER CAP | 1 | |
| 47 | COLLAR | 2 | |
| 48 | GROMMET FOR CAL | 2 | |
| 50 | BOLTHEX. SOCKET BUT | 2 | |
| 51 | COLLAR | 2 | |
| 52 | GROMMET | 2 | |
| 55 | BRACKET CAP | 1 | |
| 56 | DAMPER PLATE | 2 | |
| 57 | EMBLEM | 1 | |
| 59 | LABEL CAUTION | 1 |
