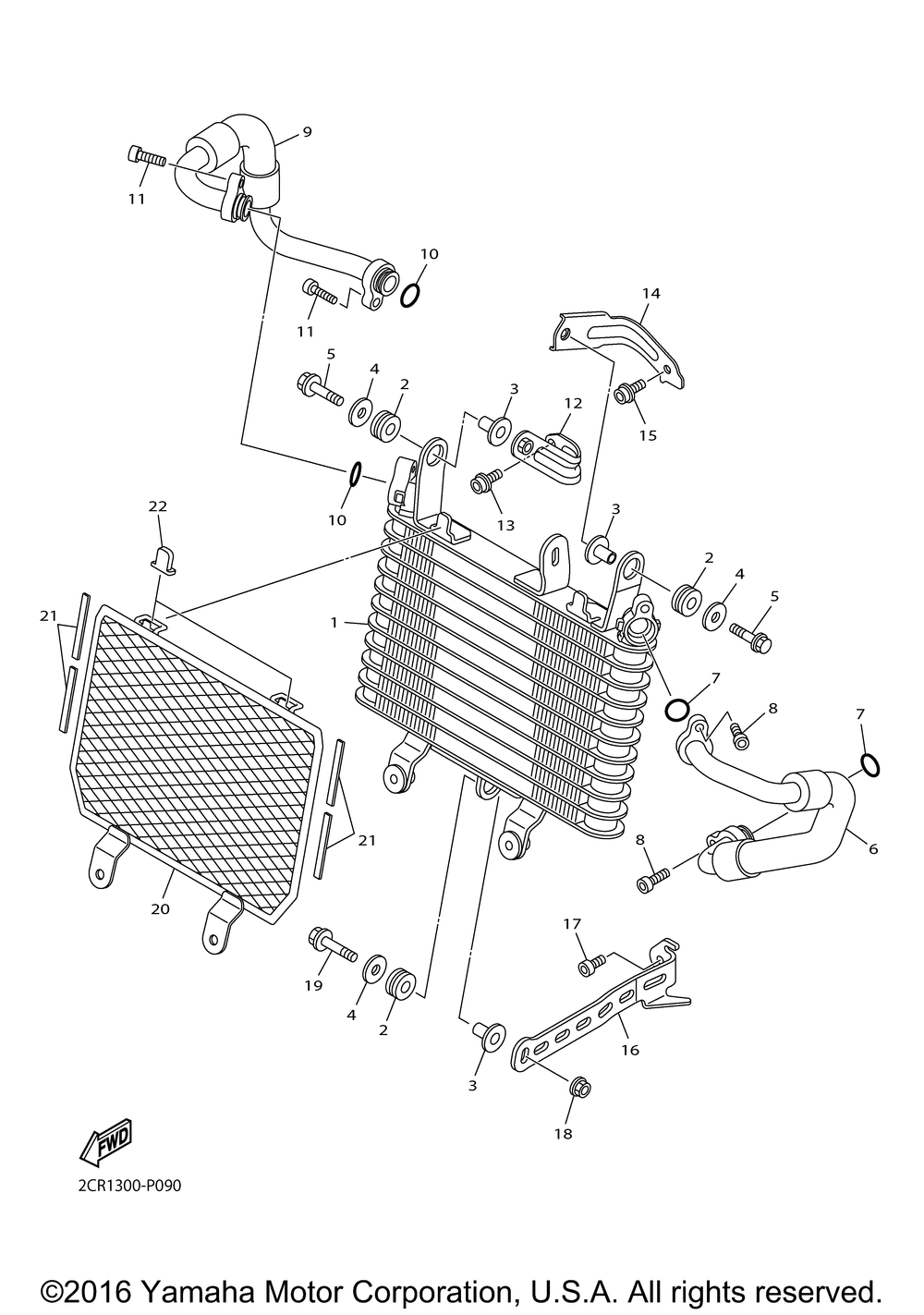

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | OIL COOLER ASSY | 1 | |
| 2 | GROMMET | 3 | |
| 3 | COLLAR | 3 | |
| 4 | WASHERPLATE | 3 | |
| 5 | BOLT HEXAGON SOCKET | 2 | |
| 6 | HOSE OIL 1 | 1 | |
| 7 | O-RING (5 per pack) | 2 | |
| 8 | BOLT (3JB) | 2 | |
| 9 | HOSE OIL 2 | 1 | |
| 12 | STAY | 1 | |
| 13 | BOLT HEXAGON SOCKET | 1 | |
| 14 | STAY 2 | 1 | |
| 16 | STAY | 1 | |
| 18 | NUT-U | 1 | |
| 19 | BOLTFLANGE | 1 | |
| 20 | COVER OIL COOLER | 1 | |
| 21 | DAMPER | 4 | |
| 22 | DAMPER SIDE COVER | 2 |
