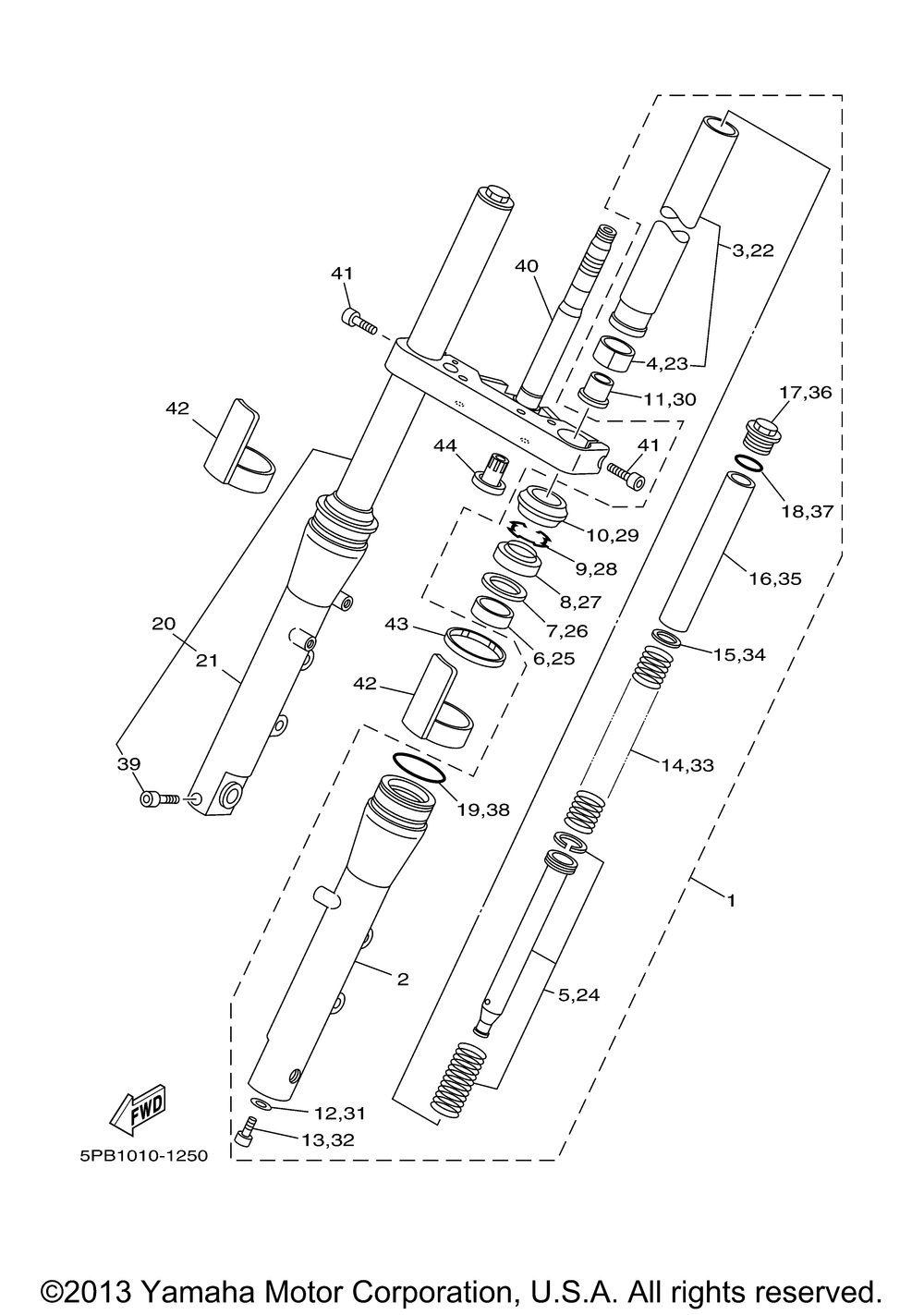

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FRONT FORK ASSY (L.H (L.H) | 1 | |
| 2 | TUBE OUTER (LEFT) (LEFT) | 1 | |
| 3 | INNER TUBE COMP.1 | 1 | |
| 4 | PISTONFRONT FORK | 1 | |
| 5 | CYLINDER COMP. FRON | 1 | |
| 6 | METALSLIDE 1 | 1 | |
| 7 | WASHEROIL SEAL | 1 | |
| 8 | OIL SEAL | 1 | |
| 9 | CLIPOIL SEAL | 1 | |
| 10 | SEALDUST | 1 | |
| 11 | SPINDLE TAPER (KYB) | 1 | |
| 12 | GASKET (KYB) | 1 | |
| 13 | BOLT HEXAGON SOCKET | 1 | |
| 14 | SPRING FRONT FORK | 1 | |
| 15 | WASHER SPRING UPP | 1 | |
| 16 | SPACER | 1 | |
| 17 | BOLT CAP | 1 | |
| 18 | O-RING | 1 | |
| 19 | O-RING | 1 | |
| 20 | FRONT FORK ASSY (R.H (R.H) | 1 | |
| 21 | TUBE OUTER (RIGHT) (RIGHT) | 1 | |
| 39 | BOLT (3JP) | 1 | |
| 40 | UNDER BRACKET COMP. | 1 | |
| 41 | BOLT SOCKET | 2 | |
| 42 | COVER | 2 | |
| 43 | STOPPER | 2 | |
| 44 | COVER LOWER 1 | 1 |
