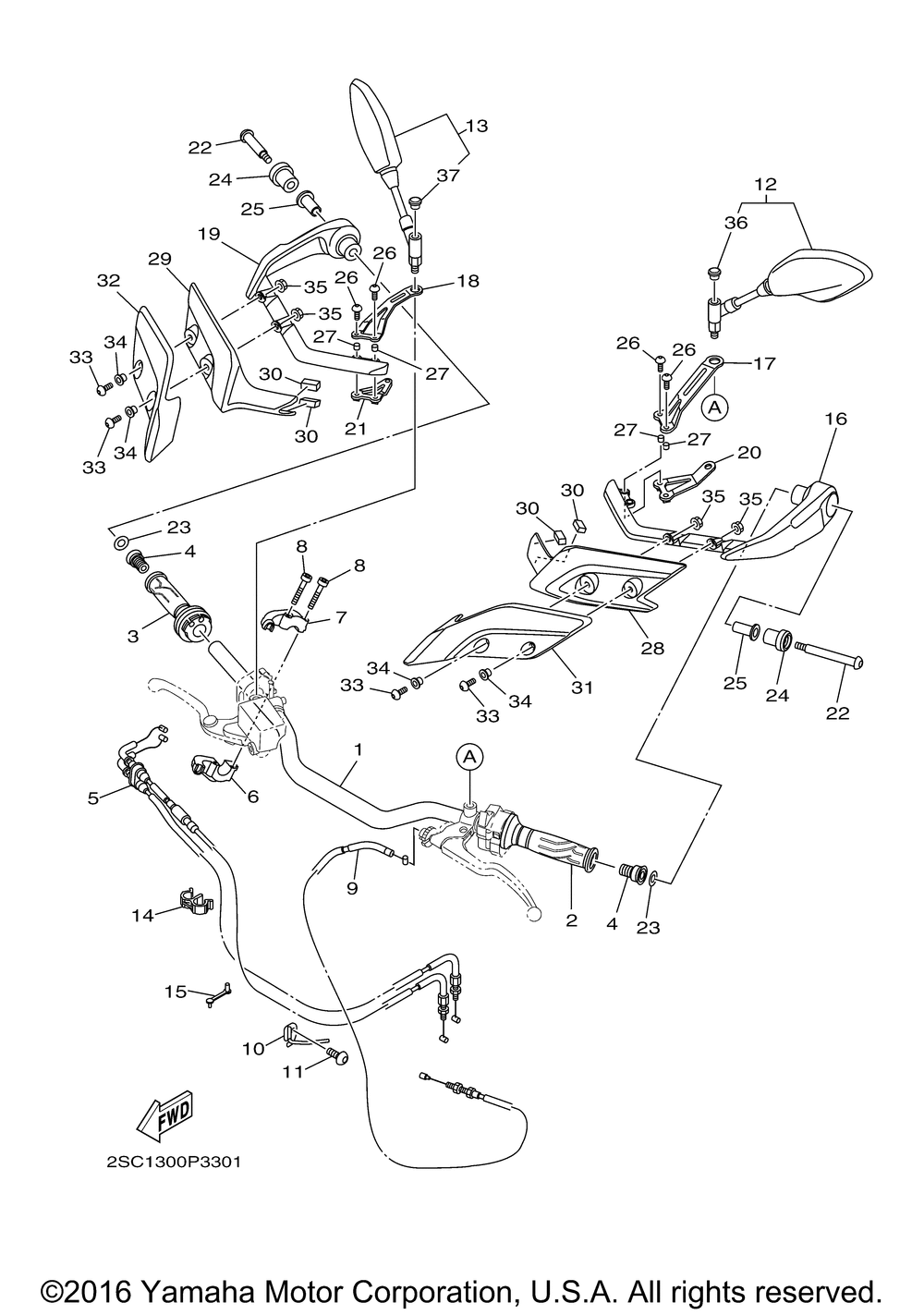

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | HANDLEBAR | 1 | |
| 2 | GRIP (LEFT) | 1 | |
| 3 | GRIP ASSY | 1 | |
| 4 | END GRIP | 2 | |
| 5 | THROTTLE CABLE ASSY | 1 | |
| 6 | CAP GRIP UPPER | 1 | |
| 7 | CAPGRIP LOWER | 1 | |
| 8 | BOLT(4PU) | 2 | |
| 9 | CABLE CLUTCH | 1 | |
| 10 | HOLDER | 1 | |
| 11 | SCREW(4JY) | 1 | |
| 12 | REAR VIEW MIRROR ASSY (LEFT) | 1 | |
| 13 | REAR VIEW MIRROR ASSY (RIGHT) | 1 | |
| 14 | CLAMP | 1 | |
| 15 | CLAMP | 1 | |
| 16 | GUARD BRUSH 1 | 1 | |
| 17 | BRACKET HANDLE 1 | 1 | |
| 18 | BRACKET HANDLE 3 | 1 | |
| 19 | GUARD BRUSH 2 | 1 | |
| 20 | BRACKET HANDLE 2 | 1 | |
| 21 | BRACKET HANDLE 4 | 1 | |
| 22 | BOLT BUTTON HEAD | 2 | |
| 23 | WASHER | 2 | |
| 24 | END GRIP 2 | 2 | |
| 25 | COLLAR | 2 | |
| 26 | BOLT BUTTON HEAD | 4 | |
| 27 | COLLAR | 4 | |
| 28 | COVER HANDLE LEVER 1 | 1 | |
| 29 | COVER HANDLE LEVER 2 | 1 | |
| 30 | DAMPER 1 | 4 | |
| 31 | COVER HANDLE UPPER 1 | 1 | |
| 32 | COVER HANDLE UPPER 2 | 1 | |
| 33 | BOLT BUTTON HEAD | 4 | |
| 34 | COLLAR | 4 | |
| 35 | NUT FLANGE 3GM (BLA | 4 | |
| 36 | CAP | 1 |
