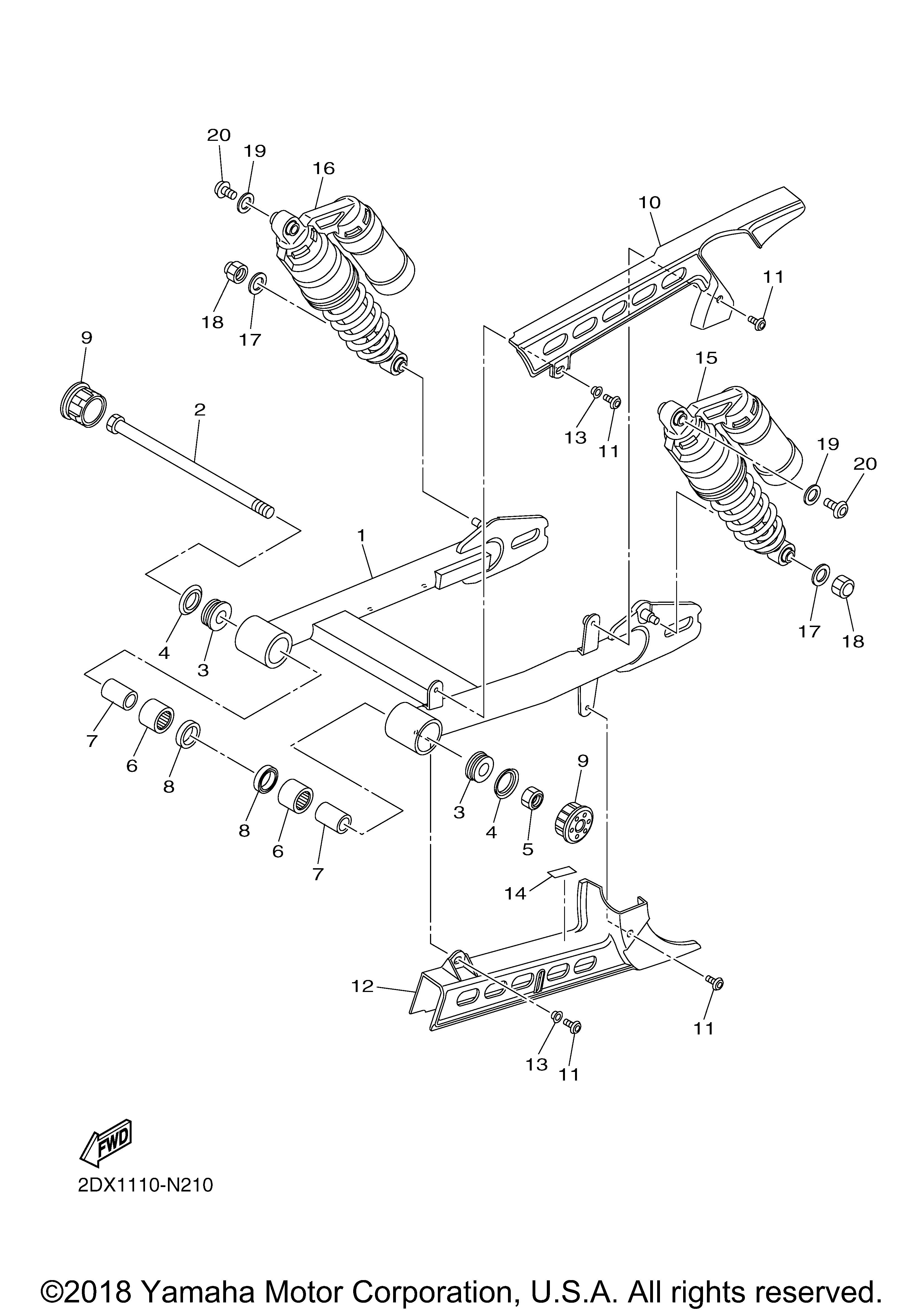

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | REAR ARM COMP. | 1 | |
| 2 | SHAFT PIVOT | 1 | |
| 3 | COLLAR | 2 | |
| 4 | OIL SEAL | 2 | |
| 5 | NUT U | 1 | |
| 6 | BEARING | 2 | |
| 7 | COLLAR | 2 | |
| 8 | OIL SEAL | 2 | |
| 9 | COVER | 2 | |
| 10 | CASE CHAIN | 1 | |
| 11 | BOLTHEX. SOCKET BUT | 4 | |
| 12 | CASE CHAIN 2 | 1 | |
| 13 | COLLAR | 2 | |
| 14 | LABEL TIRE | 1 | |
| 15 | SHOCK ABSORBER ASSY | 1 | |
| 16 | SHOCK ABSORBER ASSY | 1 | |
| 17 | WASHER PLATE | 2 | |
| 18 | NUTCROWN | 2 | |
| 19 | Шайба | 2 | |
| 20 | SCREW | 2 |
