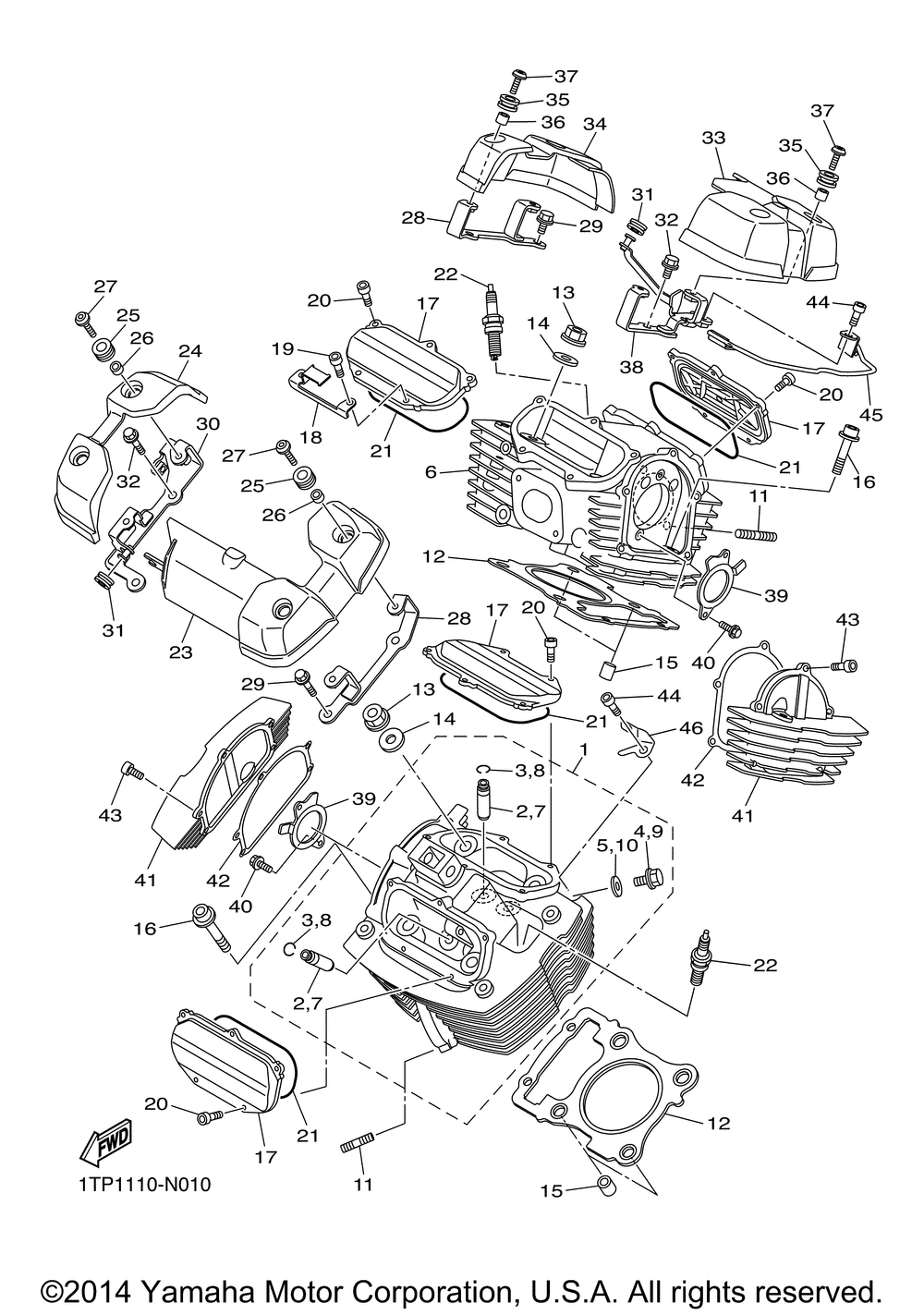

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CYLINDER HEAD ASSY | 1 | |
| 2 | Направляющая клапана | 4 | |
| 3 | CIRCLIPOUTER | 4 | |
| 4 | Болт с фланцем | 1 | |
| 5 | Шайба уплотнительная сливной пробки | 1 | |
| 6 | Головка цилиндра | 1 | |
| 11 | BOLT STUD | 4 | |
| 12 | GASKET CYLINDER HEA | 2 | |
| 13 | NUT | 8 | |
| 14 | WASHER PLATE | 8 | |
| 15 | PINDOWEL (MHO) | 4 | |
| 16 | BOLT HEXAGON SOCKET | 4 | |
| 17 | COVER CYLINDER HEAD | 4 | |
| 18 | PLATE 4 | 1 | |
| 19 | BOLT | 2 | |
| 20 | BOLT | 18 | |
| 21 | GASKET CYLINDER HEA | 4 | |
| 22 | CPR7EA9 NGK SPLUG (NGK CPR7EA) (10 per pack) | 2 | |
| 23 | COVER 1 | 1 | |
| 24 | COVER 2 | 1 | |
| 25 | GROMMET | 4 | |
| 26 | COLLAR | 4 | |
| 27 | BOLTHEX. SOCKET BUT | 4 | |
| 28 | PLATE | 2 | |
| 29 | BOLTFLANGE(8AB) | 4 | |
| 30 | PLATE 2 | 1 | |
| 31 | GROMMET | 2 | |
| 33 | COVER 3 | 1 | |
| 34 | COVER 4 | 1 | |
| 38 | PLATE 3 | 1 | |
| 39 | PLATE | 2 | |
| 40 | BOLT FLANGE | 4 | |
| 41 | COVER CYLINDER HEAD | 2 | |
| 42 | GASKET | 2 | |
| 43 | BOLT (3JB) | 10 | |
| 44 | BOLT | 3 | |
| 45 | BRACKET CYLINDER HE | 1 | |
| 46 | STAY | 1 |
