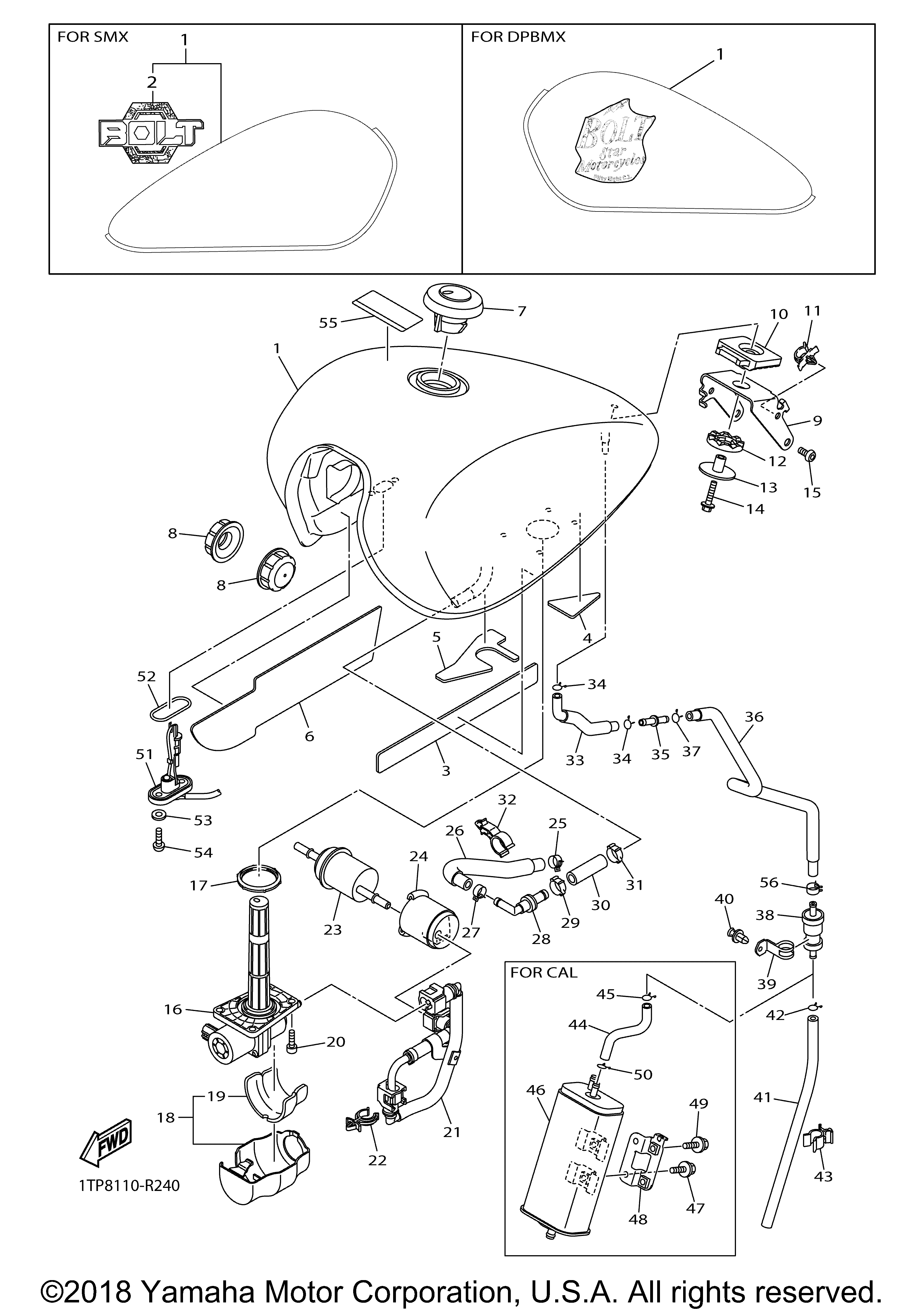

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL TANK COMP. UR FOR DPBMX | 0 | |
| 1 | FUEL TANK COMP. UR FOR SMX | 1 | |
| 2 | GRAPHIC FUEL TANK 1 FOR SMX | 2 | |
| 3 | DAMPER PLATE 1 | 1 | |
| 4 | DAMPER PLATE 2 | 1 | |
| 5 | DAMPER PLATE 3 | 1 | |
| 6 | PROTECTOR FUEL TANK | 1 | |
| 7 | CAP ASSY | 1 | |
| 8 | DAMPER LOCATING 1 | 2 | |
| 9 | BRACKET TANK FITTIN | 1 | |
| 10 | DAMPER LOCATING 2 | 1 | |
| 11 | CLAMP | 1 | |
| 12 | DAMPER LOCATING 3 | 1 | |
| 13 | COLLAR | 1 | |
| 14 | BOLT FLANGE | 1 | |
| 15 | BOLT BUTTON HEAD | 2 | |
| 16 | FUEL PUMP COMP. | 1 | |
| 17 | O-RING | 1 | |
| 18 | COVER | 1 | |
| 19 | DAMPER PLATE 4 | 1 | |
| 20 | BOLT SOCKET | 4 | |
| 21 | FUEL PIPE ASSY. 2 | 1 | |
| 22 | CLAMP | 1 | |
| 23 | FILTER | 1 | |
| 24 | BAND 1 | 1 | |
| 25 | CLIP | 1 | |
| 26 | PIPE 5 | 1 | |
| 28 | CHECK VALVE ASSY | 1 | |
| 29 | CLIP | 1 | |
| 30 | PIPE 4 | 1 | |
| 32 | CLAMP | 1 | |
| 33 | PIPE 3 | 1 | |
| 34 | CLIP | 2 | |
| 35 | JOINT | 1 | |
| 36 | PIPE 6 | 1 | |
| 38 | ROLL OVER VALVE ASSY | 1 | |
| 39 | CLAMP 2 | 1 | |
| 40 | RIVET | 1 | |
| 41 | HOSE (L280) | 1 | |
| 43 | CLAMP | 1 | |
| 44 | PIPE 1 FOR CALIFORNIA | 0 | |
| 46 | CANISTER ASSY FOR CALIFORNIA | 0 | |
| 47 | BOLTFLANGE | 0 | |
| 48 | PLATE FOR CALIFORNIA | 0 | |
| 49 | BOLT FLANGE | 0 | |
| 51 | SENDER UNIT ASSY FU | 1 | |
| 52 | GASKETSENDER UNIT | 1 | |
| 53 | WASHERPLATE | 2 | |
| 54 | SCREW | 2 | |
| 55 | LABEL CAUTION | 1 | |
| 56 | CLIP | 1 |
