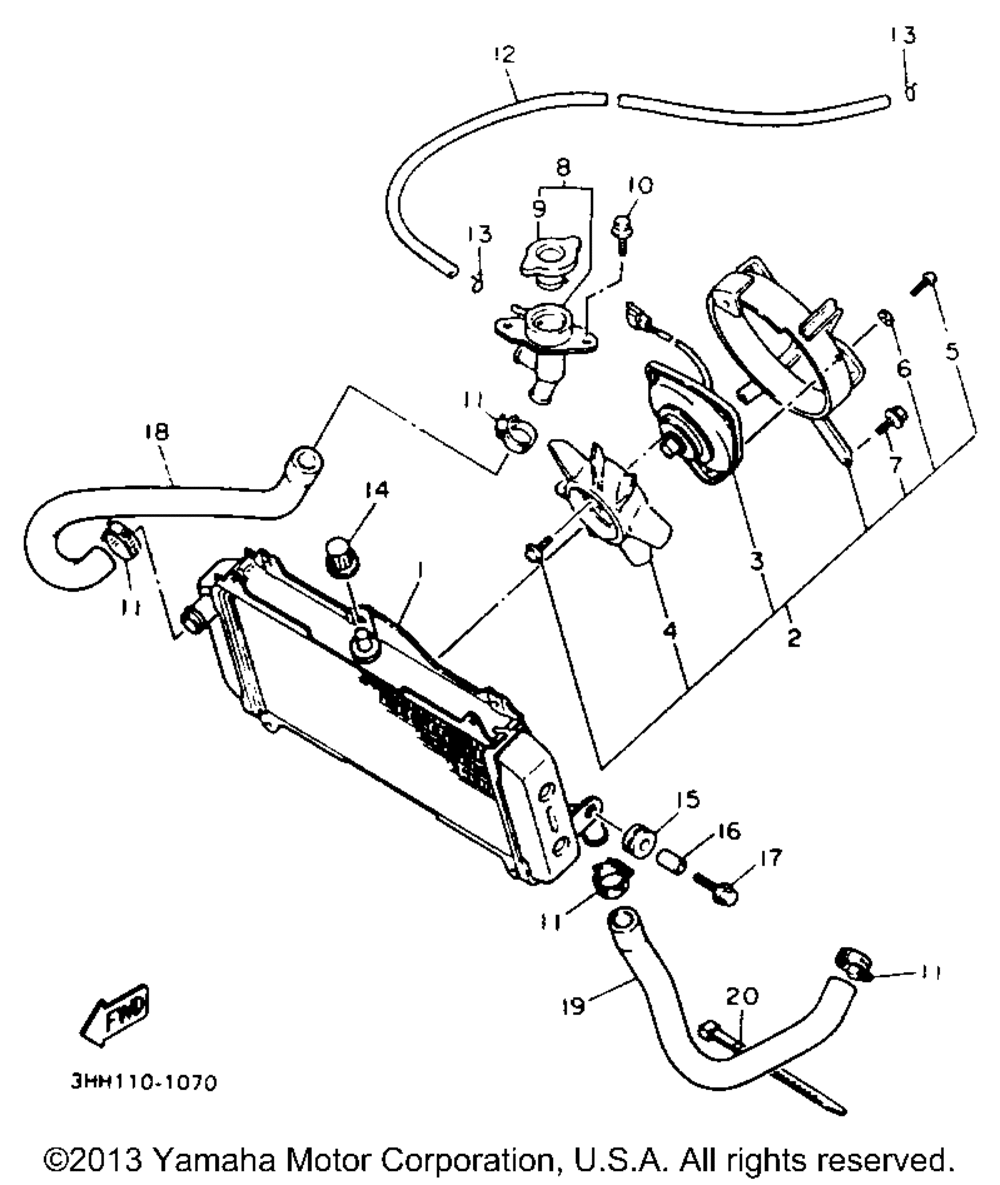

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | RADIATOR ASY | 1 | |
| 2 | BLOWER ASSY | 1 | |
| 3 | MOTOR ASSY | 1 | |
| 4 | FAN | 1 | |
| 5 | SCREW PAN HEAD | 3 | |
| 6 | WASHER PLATE | 3 | |
| 7 | BOLT WITH WASHER | 3 | |
| 8 | CONDUCTION ASSY | 1 | |
| 9 | CAPRADIATOR | 1 | |
| 10 | BOLTFLANGE | 2 | |
| 11 | HOSE CLAMP ASSY | 4 | |
| 12 | HOSE | 1 | |
| 13 | CLIPSCISSOR (5 per pack) | 2 | |
| 14 | PLUGSPEC'L SHAPE | 1 | |
| 15 | GROMMET | 2 | |
| 16 | COLLAR (2UJ) | 2 | |
| 17 | BOLTFLANGE | 2 | |
| 18 | HOSE 3 | 1 | |
| 19 | HOSE 5 | 1 | |
| 20 | BANDSWITCH CORD | 1 |
