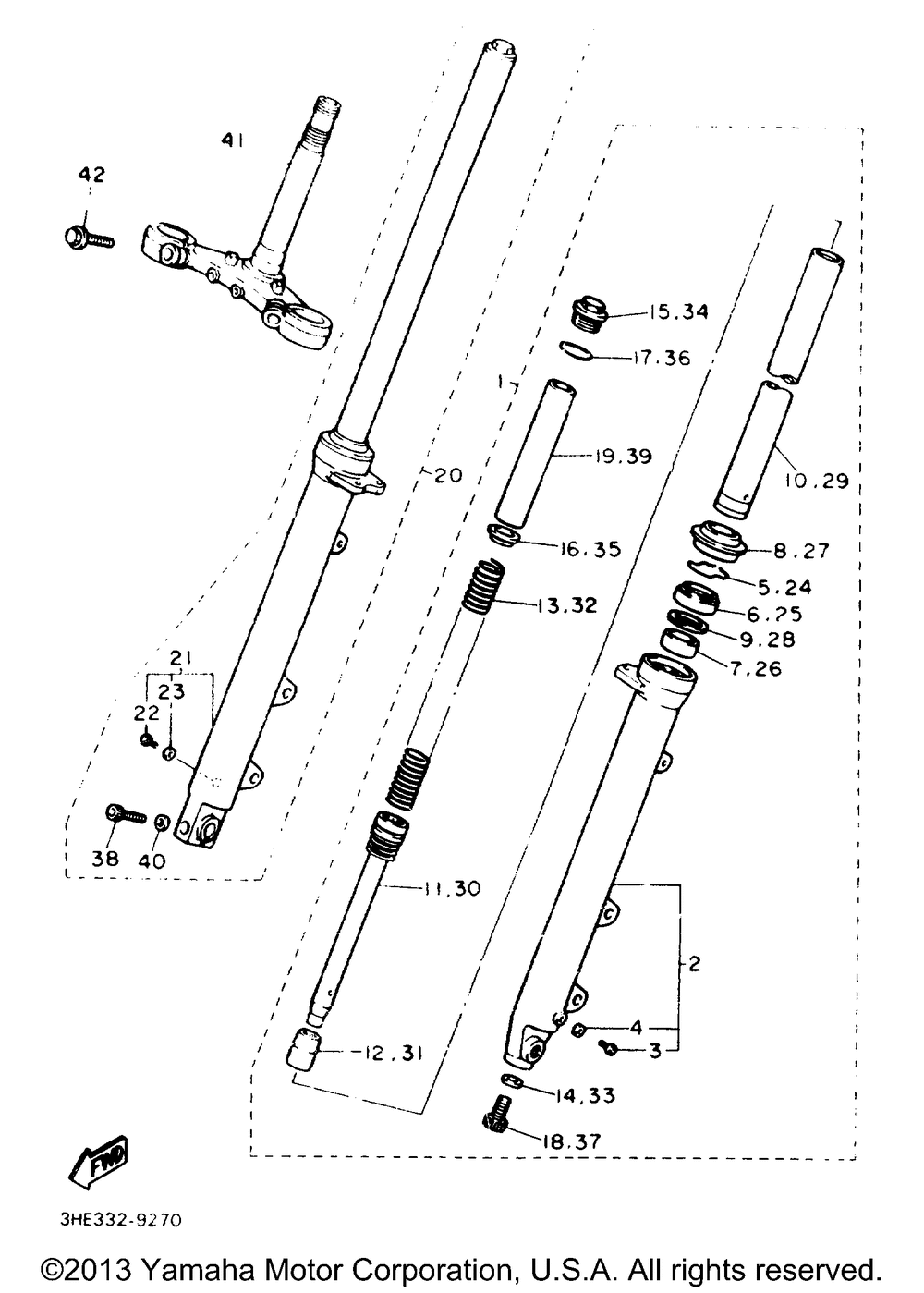

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FRONT FORK ASSY (LH) (L.H) | 1 | |
| 2 | TUBEOUTER 1 (LEFT) | 1 | |
| 3 | SCREWPAN HEAD | 1 | |
| 4 | GASKETDRAIN PLUG | 1 | |
| 5 | RINGSNAP | 1 | |
| 6 | OIL SEAL | 1 | |
| 7 | METALSLIDE 1 | 1 | |
| 8 | SEALDUST | 1 | |
| 9 | WASHEROIL SEAL | 1 | |
| 10 | INNER TUBE 1 | 1 | |
| 11 | CYLINDERFRTFRK | 1 | |
| 12 | SPINDLETAPER | 1 | |
| 13 | SPRINGFRONT FORK | 1 | |
| 14 | GASKET (KYB) | 1 | |
| 15 | BOLTCAP | 1 | |
| 16 | SEATSPRING UPPER | 1 | |
| 17 | GASKET | 1 | |
| 18 | BOLT HEXAGON SOCKET | 1 | |
| 19 | SPACER | 1 | |
| 20 | FRONT FORK ASY R (R.H) | 1 | |
| 21 | TUBEOUTER 2 (RIGHT) | 1 | |
| 38 | BOLT (3JP) | 1 | |
| 40 | WASHERPLATE | 1 | |
| 41 | UNDER BRACKET COMP. | 1 | |
| 42 | BOLT 2 | 2 |
