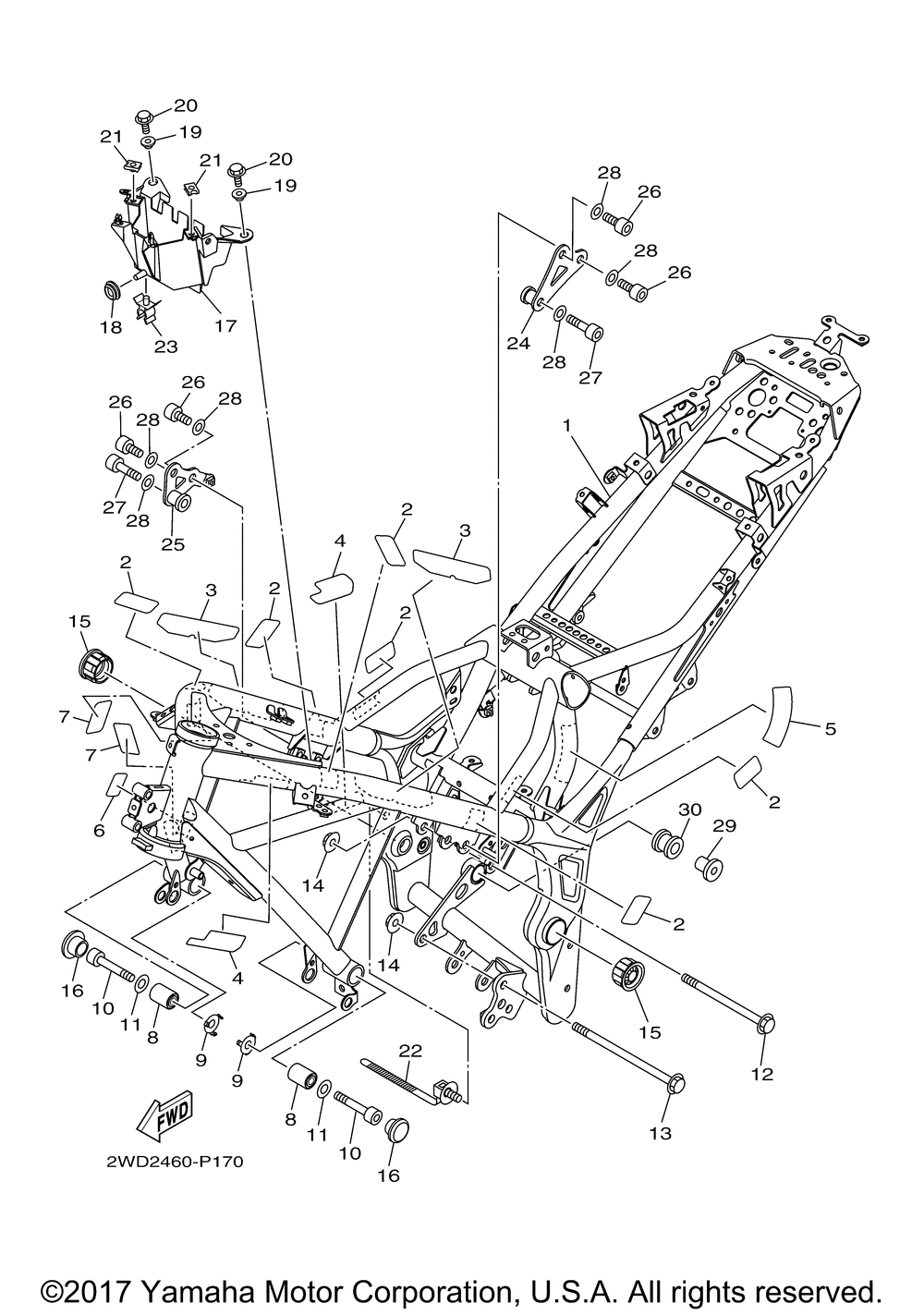

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FRAME COMP. | 1 | |
| 2 | DAMPER | 6 | |
| 3 | DAMPER 2 | 2 | |
| 4 | PROTECTOR | 2 | |
| 5 | PROTECTOR | 1 | |
| 6 | PROTECTOR | 1 | |
| 7 | SEAL | 2 | |
| 8 | BUSH 1 | 2 | |
| 9 | PLATE 1 | 2 | |
| 10 | BOLTSOCKET | 2 | |
| 11 | WASHER | 2 | |
| 12 | BOLT FLANGE | 1 | |
| 13 | BOLT FLANGE | 1 | |
| 14 | NUT (1S725C81) | 2 | |
| 15 | COVER | 2 | |
| 16 | PLUG | 2 | |
| 17 | BOX | 1 | |
| 18 | GROMMET | 1 | |
| 19 | COLLAR | 2 | |
| 20 | BOLT FLANGE | 2 | |
| 21 | NUT SPRING | 2 | |
| 22 | CLAMP | 1 | |
| 23 | CLAMP | 1 | |
| 24 | STAY 1 | 1 | |
| 25 | STAY 2 | 1 | |
| 26 | BOLTSOCKET | 4 | |
| 27 | BOLTSOCKET | 2 | |
| 28 | WASHER (6TA) | 6 | |
| 29 | COLLAR | 1 | |
| 30 | DAMPER FOOTREST 2 | 1 |
