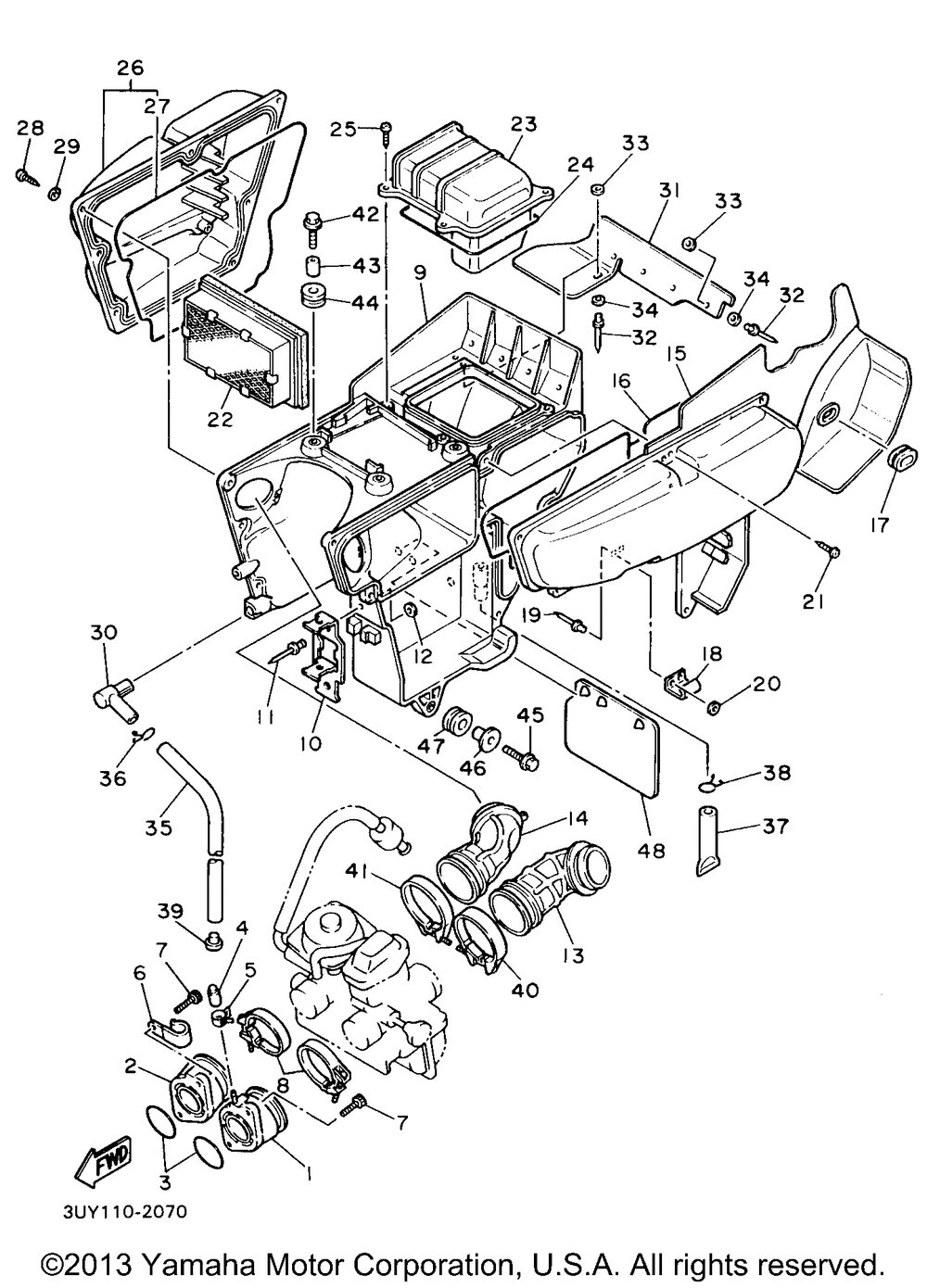

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | JOINT CARB. 1 | 1 | |
| 2 | JOINTCARBURETOR 2 | 1 | |
| 3 | O-RING (2TY) | 2 | |
| 4 | PLUGBLIND | 1 | |
| 5 | CLIPSCISSOR | 1 | |
| 6 | CLAMP | 1 | |
| 7 | BOLT (4FL) | 4 | |
| 8 | HOSE CLAMP ASSY | 2 | |
| 9 | CASEAIR CLEANER 1 | 1 | |
| 10 | STAYRELAY | 1 | |
| 11 | RIVETBLIND | 1 | |
| 12 | WASHER PLATE | 1 | |
| 13 | JOINTAIR CLNR 1 | 1 | |
| 14 | JOINT | 1 | |
| 15 | COVERCLNR CASE 1 | 1 | |
| 16 | SEAL | 1 | |
| 17 | GROMMET | 1 | |
| 18 | HOOK | 1 | |
| 21 | SCREW TRUSS | 7 | |
| 22 | Фильтр воздушный | 1 | |
| 23 | CAPCLEANER CASE 1 | 1 | |
| 24 | SEAL | 1 | |
| 26 | COVERCLNR CASE 2 | 1 | |
| 27 | SEAL | 1 | |
| 28 | SCREW PAN HEAD | 7 | |
| 29 | WASHER (1RW) | 7 | |
| 30 | PIPE | 1 | |
| 31 | FLAP | 1 | |
| 32 | RIVETBLIND (4ESA) (5 per pack) | 5 | |
| 33 | WASHERPLATE | 5 | |
| 34 | WASHER (5 per pack) | 5 | |
| 35 | HOSE | 1 | |
| 36 | CLIPSCISSOR | 1 | |
| 37 | PIPEDRAIN | 1 | |
| 38 | CLIP | 1 | |
| 39 | PLUGSPEC'L SHAPE | 1 | |
| 40 | CLAMPHOSE | 1 | |
| 41 | HOSE CLAMP ASSY | 1 | |
| 42 | BOLT FLANGE | 3 | |
| 43 | COLLAR | 3 | |
| 44 | GROMMET | 3 | |
| 45 | BOLTFLANGE | 1 | |
| 46 | COLLAR | 1 | |
| 47 | GROMMET | 1 | |
| 48 | FLAP | 1 |
