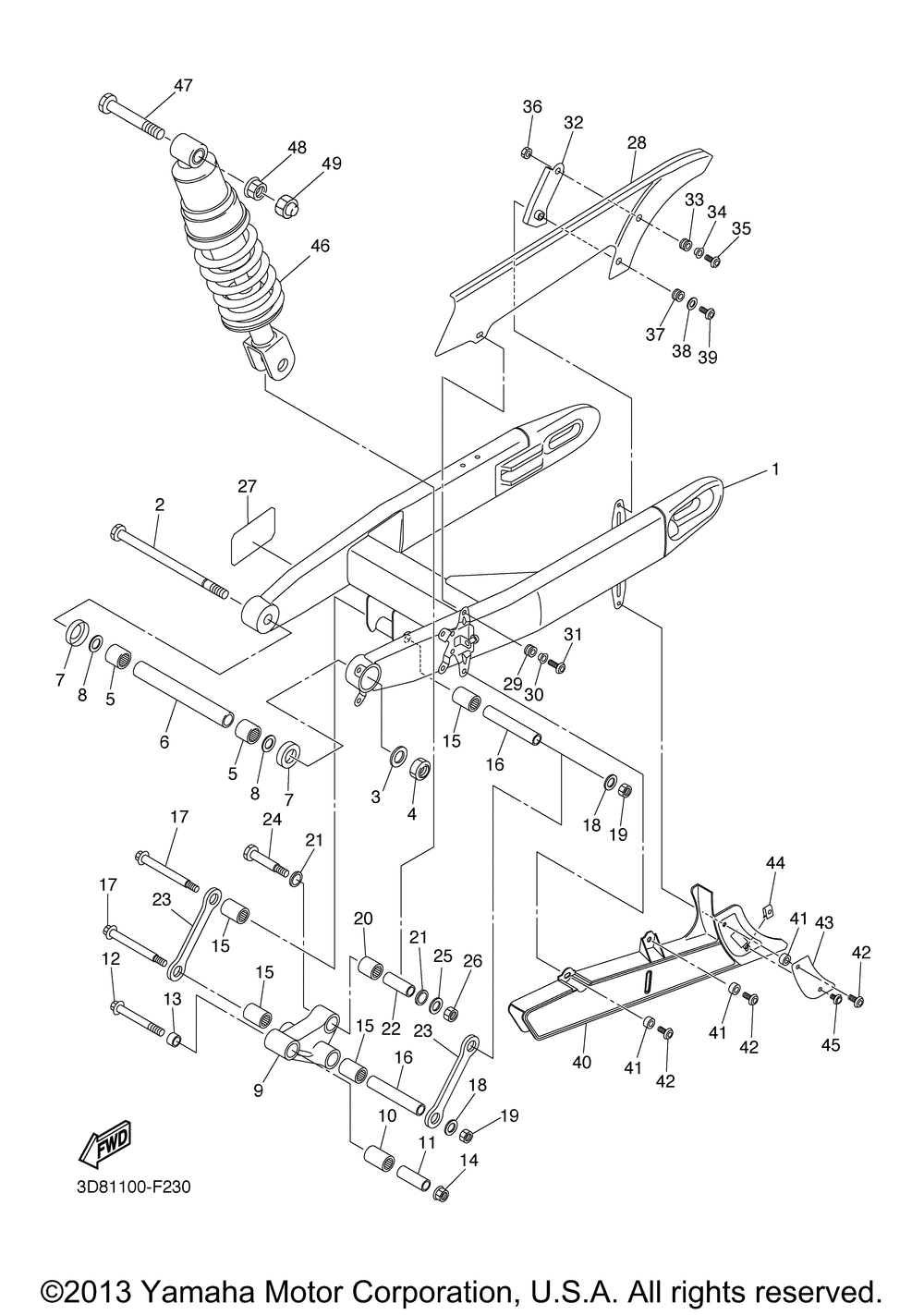

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | REAR ARM COMP. | 1 | |
| 2 | SHAFT PIVOT | 1 | |
| 3 | WASHER PLATE | 1 | |
| 4 | NUT SELF-LOCKING | 1 | |
| 5 | BEARINGCYL.tahos_20 | 2 | |
| 6 | BUSH 2 | 1 | |
| 7 | COVER THRUST 2 | 2 | |
| 8 | WASHER PLATE | 2 | |
| 9 | ARM RELAY | 1 | |
| 10 | BEARINGCYL.tahos_17 | 1 | |
| 11 | COLLAR | 1 | |
| 12 | BOLT FLANGE | 1 | |
| 13 | COLLAR | 1 | |
| 14 | NUTSELF LOCKING | 1 | |
| 15 | BEARINGCYL.tahos_17 | 4 | |
| 16 | COLLAR | 2 | |
| 17 | BOLT | 2 | |
| 18 | WASHER PLATE | 2 | |
| 19 | NUT U | 2 | |
| 20 | BEARING CYL.(3YL) | 1 | |
| 21 | OIL SEAL | 2 | |
| 22 | COLLAR | 1 | |
| 23 | ARM 1 | 2 | |
| 24 | BOLT | 1 | |
| 25 | WASHER PLATE | 1 | |
| 26 | NUTU | 1 | |
| 27 | PROTECTOR | 1 | |
| 28 | CASE CHAIN | 1 | |
| 29 | GROMMET | 1 | |
| 30 | COLLAR | 1 | |
| 31 | SCREWSPEC'L SHAPE | 1 | |
| 32 | STAY CHAIN CASE | 1 | |
| 35 | BOLT | 1 | |
| 36 | NUT (5 per pack) | 1 | |
| 38 | WASHER PLATE | 1 | |
| 40 | CASE CHAIN 2 | 1 | |
| 41 | COLLAR | 3 | |
| 43 | пластина металлическая 5PX223410000 | 1 | |
| 44 | NUT SPRING (4ES) | 1 | |
| 45 | SCREWSPEC'L SHAPE | 1 | |
| 46 | SHOCK ABSORBER ASSY | 1 | |
| 47 | BOLT | 1 | |
| 49 | CAP | 2 |
