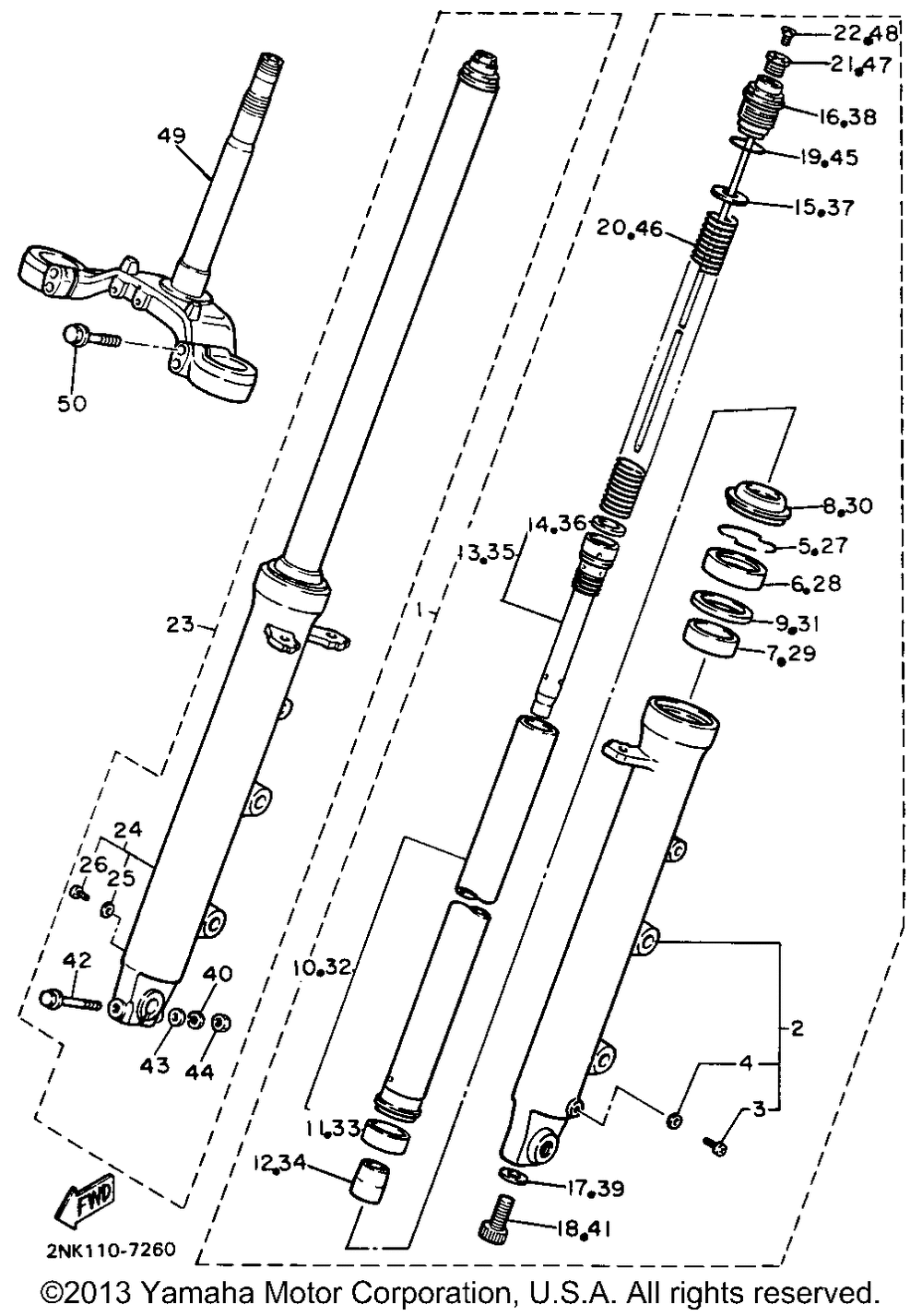

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FRONT FORK ASSY LH | 1 | |
| 2 | TUBE OUTER 1 | 1 | |
| 3 | SCREWPAN HEAD | 1 | |
| 4 | GASKETDRAIN PLUG | 1 | |
| 5 | CLIPOIL SEAL | 1 | |
| 6 | OIL SEAL | 1 | |
| 7 | METALSLIDE 1 | 1 | |
| 8 | SEALDUST | 1 | |
| 9 | WASHEROIL SEAL | 1 | |
| 10 | INNER TUBE COMP. | 1 | |
| 11 | PISTONFRONT FORK | 1 | |
| 13 | CYLINDERFRONTFORK | 1 | |
| 14 | RINGPISTON FRTFRK | 1 | |
| 15 | WASHERSPRING UPR | 1 | |
| 16 | BOLT CAP | 1 | |
| 17 | GASKET | 1 | |
| 18 | BOLTHEX SCKT HEAD | 1 | |
| 19 | O-RING | 1 | |
| 20 | SPRING FRONT FORK | 1 | |
| 21 | CAP FRONT FORK | 1 | |
| 22 | SCREW FLAT HEAD | 1 | |
| 23 | FRONT FORK ASSY RH (R.H) | 1 | |
| 24 | TUBE OUTER 2 | 1 | |
| 40 | WASHERSPRING | 1 | |
| 42 | BOLTAXLE HOLDER | 1 | |
| 43 | WASHER (5 per pack) | 1 | |
| 44 | NUT (6L2) | 1 | |
| 49 | UNDER BRACKET | 1 | |
| 50 | BOLT FLANGE | 4 |
