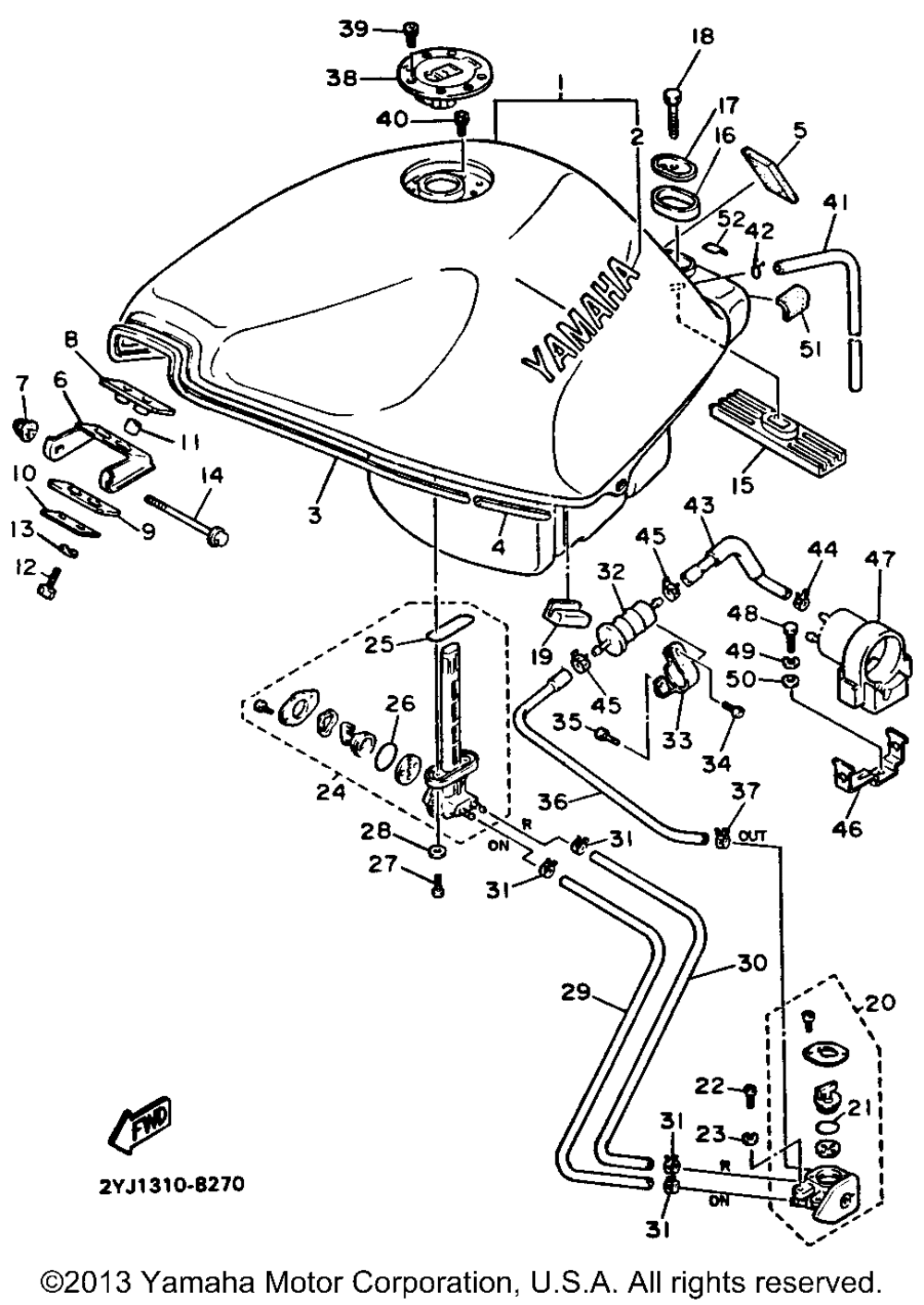

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL TANK SILKY WHITE FINE RED | 1 | |
| 2 | EMBLEM YAMAHA | 2 | |
| 3 | TRIM | 1 | |
| 4 | MOLD 6 | 2 | |
| 5 | DAMPER | 1 | |
| 6 | BRACKETFUEL TNK 1 | 1 | |
| 7 | NUT CROWN | 1 | |
| 8 | DAMPERLOCATING 1 | 1 | |
| 9 | DAMPERLOCATING 3 | 1 | |
| 10 | WASHERSPECIAL | 1 | |
| 11 | COLLAR | 2 | |
| 12 | BOLTHEXAGON | 2 | |
| 13 | WASHER (5 per pack) | 2 | |
| 14 | BOLTFLANGE (3GM) | 1 | |
| 15 | DAMPERLOCATING 4 | 1 | |
| 16 | DAMPERLOCATING 3 | 1 | |
| 17 | WASHERSPECIAL | 1 | |
| 18 | BOLTHEXAGON (97001-08030-00) | 1 | |
| 19 | DAMPERLOCATING 2 | 2 | |
| 20 | FUEL COCK ASY 1 | 1 | |
| 21 | SEALCOCK | 1 | |
| 22 | SCREWPAN | 2 | |
| 23 | WASHERSPRING (5 per pack) | 2 | |
| 24 | FUEL COCK ASY 2 | 1 | |
| 25 | GASKET | 1 | |
| 26 | SEALCOCK | 1 | |
| 27 | SCREWSPEC'L SHAPE | 2 | |
| 28 | WASHERPLATE | 2 | |
| 29 | HOSE | 1 | |
| 31 | CLIPSCISSOR | 4 | |
| 32 | FILTER ASSY (FUEL) | 1 | |
| 33 | CLAMPFUEL PIPE 1 | 1 | |
| 34 | SCREWBINDING | 1 | |
| 35 | SCREW (5 per pack) | 1 | |
| 36 | PIPE 2 | 1 | |
| 38 | CAP ASSY | 1 | |
| 39 | BOLTHEX SKT HEAD | 3 | |
| 40 | BOLT SCKT HD | 1 | |
| 41 | HOSE (L730) | 1 | |
| 42 | CLIP | 1 | |
| 43 | PIPE 3 | 1 | |
| 45 | CLIPSCISSOR | 2 | |
| 47 | BAND 1 | 1 | |
| 48 | BOLT (GA1) (5 per pack) | 1 | |
| 50 | WASHER (5 per pack) | 1 | |
| 51 | DAMPER (5 per pack) | 2 | |
| 52 | SEAL 1 | 1 |
