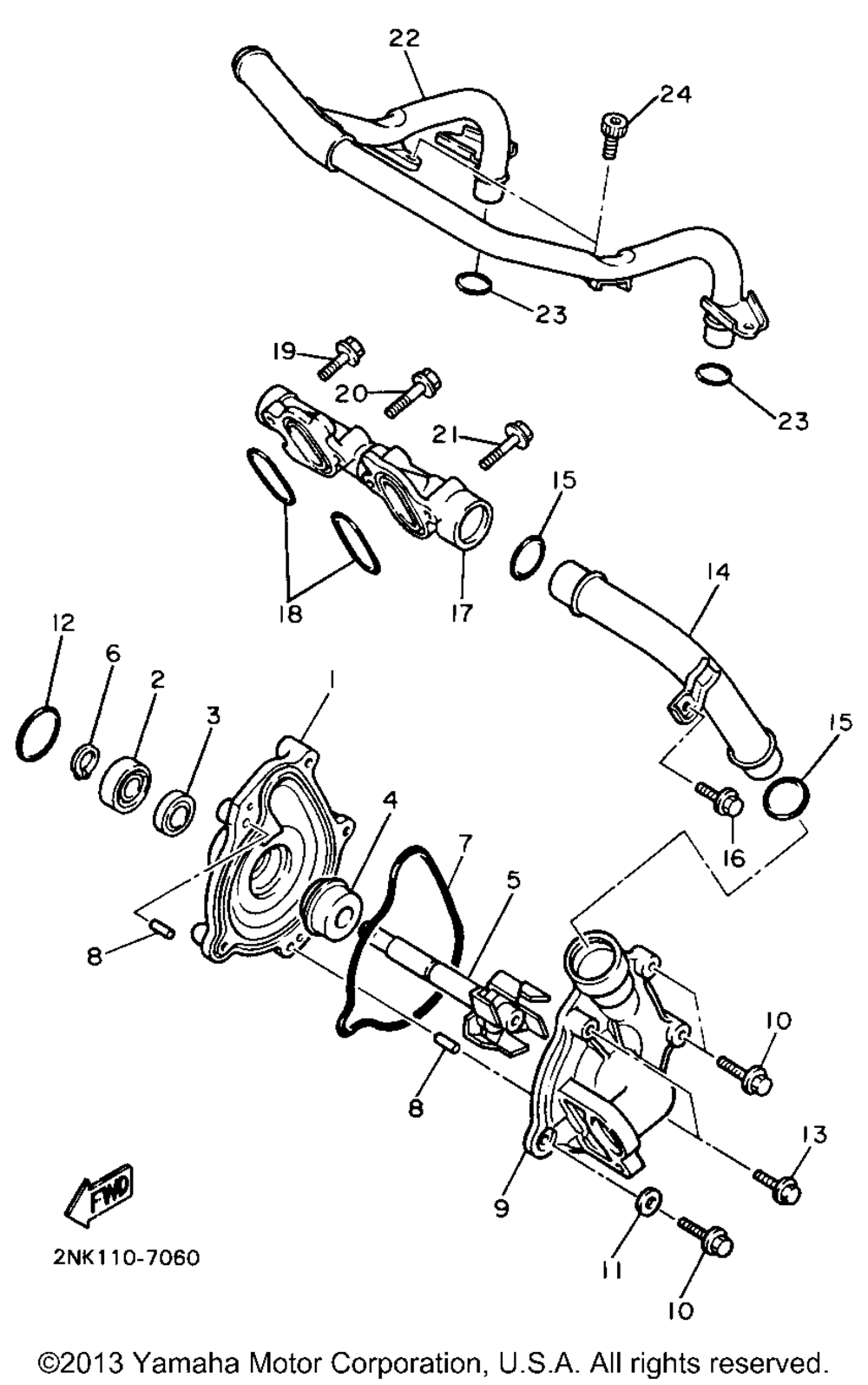

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | HOUSINGWATER PUMP | 1 | |
| 2 | BEARING | 1 | |
| 3 | OIL SEALS-TYPE | 1 | |
| 4 | SEAL MECHANICAL | 1 | |
| 5 | IMPELLER SHAFT ASY | 1 | |
| 6 | CIRCLIP | 1 | |
| 7 | O-RING | 1 | |
| 8 | PINDOWEL (5 per pack) | 2 | |
| 9 | COVERHOUSING | 1 | |
| 10 | BOLTSMALL FLANGE | 3 | |
| 11 | GASKET | 1 | |
| 12 | O-RING | 1 | |
| 13 | BOLTSMALL FLANGE | 2 | |
| 14 | PIPE 1 | 1 | |
| 15 | O'RING | 2 | |
| 16 | BOLTFLANGE (4MY) | 1 | |
| 17 | JOINT 1 | 1 | |
| 18 | O-RING (5 per pack) | 2 | |
| 19 | BOLTFLANGE(6U1) | 1 | |
| 20 | BOLTSMALL FLANGE | 1 | |
| 21 | BOLTSMALL FLANGE | 2 | |
| 22 | PIPE 2 | 1 | |
| 23 | O-RING (5 per pack) | 2 | |
| 24 | BOLT (4MY) | 2 |
