Arctic Cat HDX 700 CREW XT CAMO HDX 700 CREW XT CAMO ROPS AND TAILLIGHT ASSEMBLY

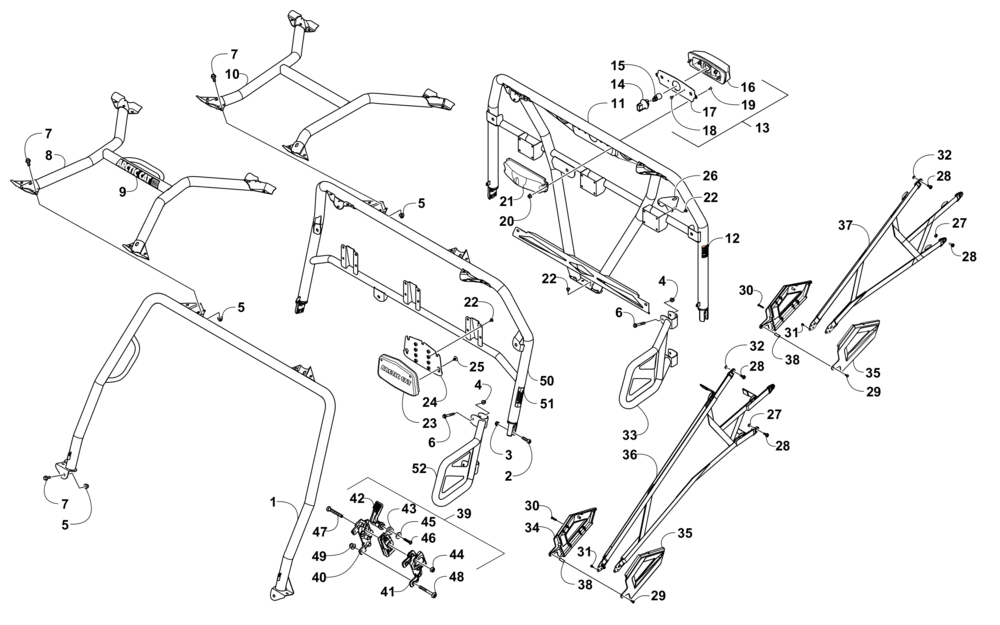

ROPS AND TAILLIGHT ASSEMBLY
№ Наименование Примечание Кол-во
1 HOOPCANOPY-FRONT-PTD-BLK 1
2 SCREWCAP-HSH M10 X 1.25 X 35 (4 per pack) 8
3 NUTHEX LOCK-NSL M10X1.25 GR 8 DIN 985 (4 per pack) 8
4 NUTHEX FLG-NYLOCK M8X1.25 CL8 RIE BLACK (4 per pack) 8
5 NUTHEX FLG-M10X1.25 CL10 W/2353 SCOTCH (10 per pack) 20
6 SCREWCAP-HFH M8X1.25X60 CL8.8 RIE BLK (2 per pack) 8
7 SCREW CAP-HFH M10-1.25 X 25 CL10.9 (4 per pack) 20
8 TOPCANOPY-PTD BLACK 1
9 DECALARCTIC CAT-BUILT RIGHT HERE-CANOPY 1
10 CANOPY6DX TOP-REAR-PAINTED BLACK 1
11 HOOPCANOPY-RR W/WARNING DECAL (CREW) (inc. 12) 1
12 DECALWARNING-ROPS (2017 HDX CREW) 1
13 TAILLIGHTASSY (inc. 2-4) 1
14 SOCKETTAIL LIGHT 1
15 BULBTAIL LIGHT-3157 1
16 HOUSINGTAIL LIGHT-ASSY 1
17 BRACKETTAILLIGHT MOUNT-BLACK 1
18 SCREWSELF TAP-HWH 10X1/2 AB Z&Y (2 per pack) 2
19 SCREWMACH-TSPNH M6X1.0X16 CL8.8 BLK (4 per pack) 2
20 NUTHEX FLG-NYL LOCK M6X1.0 CL8 Z&Y (5 per pack) 2
21 COVERTAILLIGHT 1
22 SCREWMACH-TSTRH M6-1.0 X 12 CL8.8 BLK (5 per pack) 28
23 PADHEADREST 6
24 HEADREST MOUNT-PAINTED-BLACK 6
25 PLUG CHRISTMAS TREE (4 per pack) 30
26 BRACKETFLAG MOUNTING-PTD BLACK 1
27 HEX NYLON NUT CL8 BLK ZINC M6(DIN 985) (2 per pack) 8
28 BOLTSHOULDER-M6 X 1.0 X 12mm LG (2 per pack) 8
29 SCREWBUTTON HEAD TORX BLK M5-0.8X12 (2 per pack) 8
30 SCREWBUTTON HEAD TORX BLK 4-1.34X28 (3 per pack) 12
31 SCREW BUTTON HEAD TORX BLK 4-1.34X9.5 (2 per pack) 8
32 NUTFLG LOCK-NYLON SL M6-1.0 CL8 Z&B (2 per pack) 4
33 GUARDSHOULDER-RH-PTD BLACK 1
33 GUARDSHOULDER-LH-PTD BLACK 1
34 HANDLENET-INSIDE-LH 2
34 HANDLENET-INSIDE-RH 2
35 HANDLENET-RH 2
35 HANDLENET-LH 2
37 NETSHOULDER RESTRAINT-RR-RH 1
37 NETSHOULDER RESTRAINT-RR-LH 1
38 PINSTRIKER 4
39 LATCH-RH-ASSY (inc. 40-47) 2
39 LATCH-LH-ASSY (inc. 40-47) 2
40 BRKTOUTER LATCH MTG 4
41 BRKTINNER LATCH MTG 4
42 LEVERRELEASE-RH 2
42 LEVERRELEASE-LH 2
43 LATCHROTARY-RH 2
43 LATCHROTARY-LH 2
44 NUTJAM-M6X1.0 LH 4
45 WASHER M4 BLACK FENDER (2 per pack) 4
46 SCREWBHTS HI-LO 4.0-1.34X22-BLK (2 per pack) 8
47 SCREWMACH-TSPNH M6X1.0X45 CL8.8 BLK (10 per pack) 8
48 SCREWMACH-TSTRH M6X1.0X50 Z&BLK (5 per pack) 8
49 NUTHEX FLG-NYL LOCK M6X1.0 CL8 RIE BLK 8
50 HOOPCANOPY-CENTER-W/WARNING DECALS (inc. 51) 1
51 DECALWARNING-REAR-PASSENGER-SIDE 2
52 SHOULDER RESTRAINT-PTD BLACK-RH 1
52 SHOULDER RESTRAINT-PTD BLACK-LH 1
