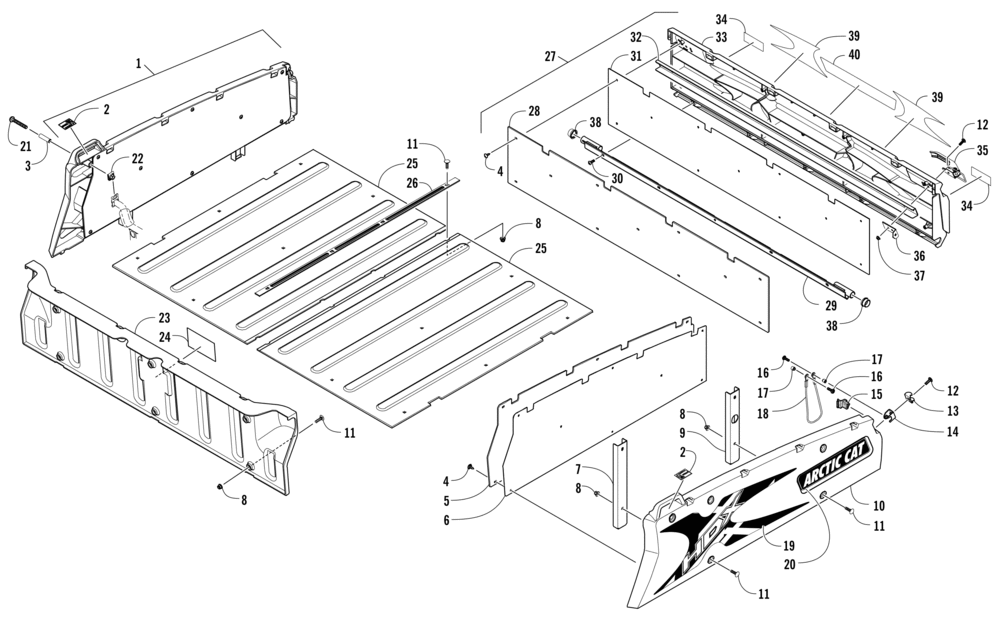

Arctic Cat HDX 500 XT BLACK HDX 500 XT BLACK CARGO BOX AND TAILGATE ASSEMBLY
CARGO BOX AND TAILGATE ASSEMBLY
№ Наименование Примечание Кол-во
1 CARGO BOXLH SIDE-ASSY (inc. 2-15) 1
1 CARGO BOXRH SIDE-ASSY (inc. 2-15) 1
2 DECALWARNING-BOX 2
3 TUBESPACER (2 per pack) 2
4 SCREWTSTRH SELF TAPtahos_10 X 3/4 4037A RIE (8 per pack) 27
5 PANELINNER-CARGO BOX-PTD 2
6 PADFOAM-SIDE PANEL 2
7 BRACKETSIDE MOUNT-REAR-WELDMENT 2
8 NUTHEX-FLG M8X1.25 CL8 Z&Y 22
9 BRACKETSIDE MOUNT-FRONT-WELDMENT 2
10 PANELSIDE-RH 1
10 PANELSIDE-LH 1
11 BOLTCRG-M8-1.25X30-BLK RIE (4 per pack) 30
12 SCREWMACH-TSTRH M6X1.0X20 (5 per pack) 6
13 BRACKET LATCH - PTD BLACK 2
14 BRACKETLATCH 2
15 PADTAILGATE-LH (4 per pack) 1
15 PADTAILGATE-RH (4 per pack) 1
16 SCREWMACH-TSPNH M5X.8X20 CL8.8 Z&Y (4 per pack) 4
17 SPACER TAILGATE CABLE (4 per pack) 4
18 CABLETAILGATE-HDX 2
19 DECALBOX-SIDE-"X"-RH (HDX) 1
19 DECALBOX-SIDE-"X"-LH (HDX) 1
20 DECALSIDE-RR-RH (ARCTIC CAT) 1
20 DECALSIDE-RR-LH (ARCTIC CAT) 1
21 SCREWTSPNH M10X1.25X70 4037A RIE (2 per pack) 2
22 CLIP SIDE PANEL MOUNTING (2 per pack) 2
23 PANELFRONT 1
24 DECALWARNING-CARGO(500 HDX) 1
25 PANELCARGO BOX-BED 2
26 STRIPBOX BOT CENTER-PTD BLACK 1
27 TAILGATE-ASSEMBLY (inc. 30-39) 1
28 PANELINNER-TAILGATE-PTD 1
29 PIVOTTAILGATE-PTD BLACK 1
30 SCREWTSPH 1/4-10 X 1-1/4 PLASTITE (5 per pack) 5
31 PADFOAM-TAILGATE 1
32 SUPPORT TAILGATE 1
33 PANELTAILGATE 1
34 REFLECTORREAR-HDX (2 per pack) 2
35 LATCH TAILGATE - PTD BLACK 2
36 BRACKET LATCH SUPPORT (2 per pack) 2
37 NUTHEX-FLG M6X1.0 CL8 Z&Y (4 per pack) 4
38 BUSHING TAILGATE PIVOT (2 per pack) 2
39 DECALTAILGATE-SIDE-RH (HDX 500) 1
39 DECALTAILGATE-SIDE-LH (HDX 500) 1
40 DECALTAILGATE-CENTER (ARCTIC CAT) 1
