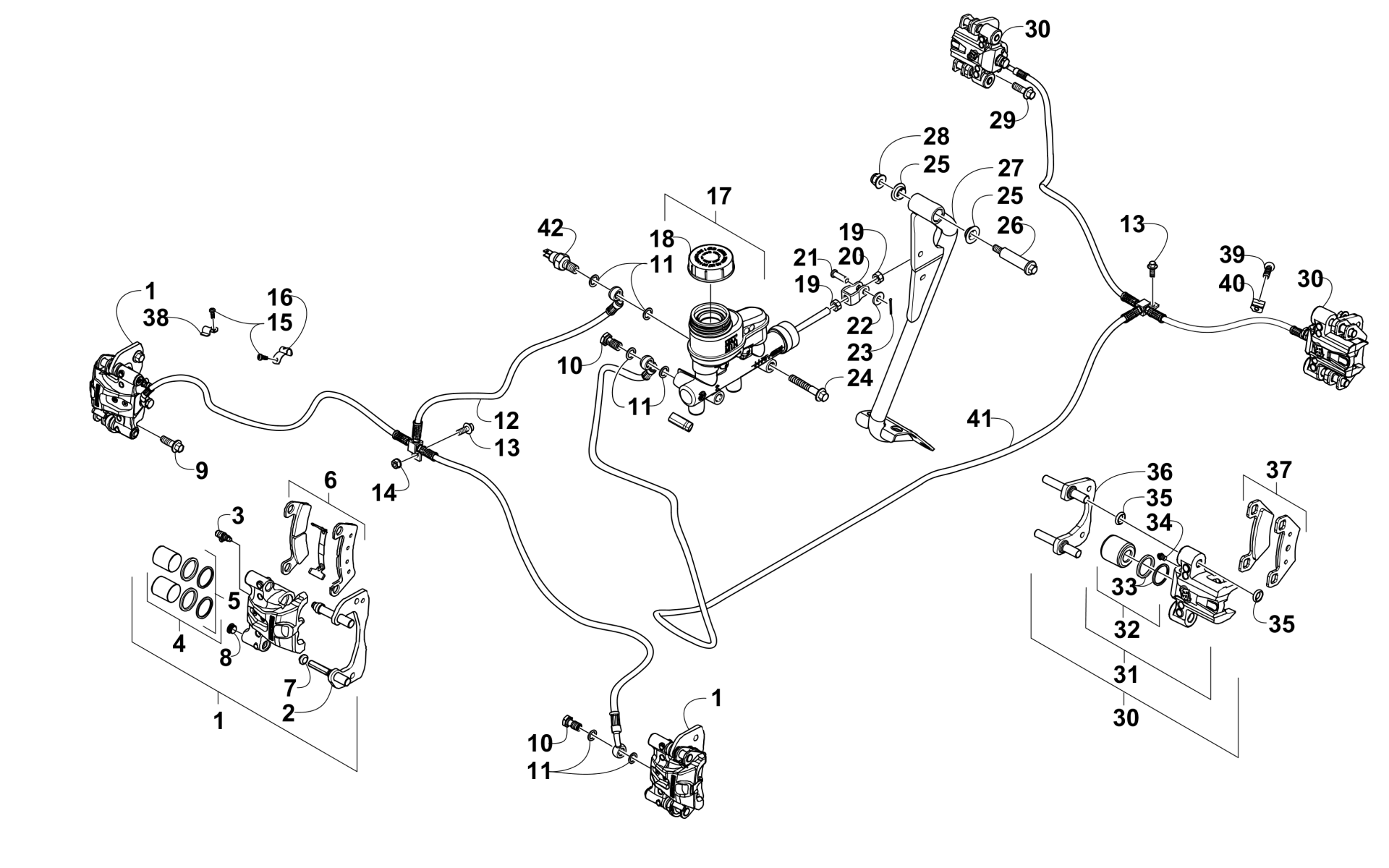

Arctic Cat WILDCAT SPORT XT EPS WILDCAT SPORT XT EPS HYDRAULIC BRAKE ASSEMBLY
HYDRAULIC BRAKE ASSEMBLY
№ Наименование Примечание Кол-во
1 KIT 2 PISTON FL CALIPER-LH-FULL ASSY (inc. 2-8) Front Left 1
1 KIT2 PISTON FL CALIPER-RH-FULL ASSY (inc. 2-8) Front Right 1
2 KIT CALIPER MOUNTING BRACKET 2
3 KITBLEEDER AND CAPS 2
4 KITPISTON2 PISTON2 WIPER2 SQUARE 4
5 KITPISTON SEALS & WIPER 4
6 KITBRAKE PADS 4
7 KIT BOOTS 2
8 KITJAM SCREW 2
9 SCREWCAP-HFH M10X1.25X25 CL10.9 W/2353 4
10 BOLTBANJO FITTING-20mm 5
11 WASHERCRUSH (5 per pack) 12
12 HOSEFRONT BRAKE-WC SPORT 1
13 SCREWCAP-HFH M6X1.0X16 CL8.8 Z&Y (4 per pack) 1
14 NUTHEX M6 Z&Y-SEMS (W/WASHER) (5 per pack) 2
15 SCREWSELF TAP-TSPNH-M5X0.8X12 BLK (4 per pack) 4
16 BRACKETBRAKE LINE - 1" OD (4 per pack) 2
17 CYLINDERMASTER BRAKE SIDEWINDER II-ASSY (inc. 2-4) 1
18 KITSERVICE CAP-TANDEM MC SIDEWINDER II 1
19 NUT JAMM8 X 1.25 (2 per pack) 2
20 CLEVIS 1
21 PINCLEVIS-6.75 DIA X 20.2 L Z&B 1
22 WASHERFLAT- 1/4 X .625 X .065 Z&Y (10 per pack) 1
23 PINCOTTER-1/16 X 3/4 (3 per pack) 1
24 SCREWCAP-HFH M8X1.25X50 CL8.8 Z&Y (2 per pack) 2
25 BUSHING (.5 ID X .594 OD X .25 L) (2 per pack) 2
26 SCREWSHOULDER-M8-1.25X45 (2 per pack) 1
27 PEDALBRAKE-BLACK-MACH 1
28 NUTHEX FLG-NYL LOCK M8X1.25 CL8 Z&Y 1
29 SCREWCAP-HFH M8X1.25X25 CL8.8 W/2353 (2 per pack) 4
30 KIT-CALIPERASSY-FRT LHRR RH (inc. 2-9) Front Left 1
30 KIT-CALIPERASSY-FRT RHRR LH (inc. 2-9) Front Right & Rear Right 1
31 KIT-HOUSINGPISTONSSEALSBLEADER-LH (inc. 3-6) Front Left & Rear Right 1
31 KIT-HOUSINGPISTONSSEALSBLEADER-RH (inc. 3-6) Front Right 1
32 SETPISTONS/SEALS (inc. 5) 2
33 САЛЬНИКИ 2
34 BLEEDERCALIPER (FC) 2
35 GUIDEO-RINGS-CALIPER (FC) 2
36 BRACKETASSEMBLY 4
37 KIT-PADBRAKE-SET 2
38 CLIPBRAKE HOSE (2 per pack) 4
39 SCREWCAP-TSPNH M6X1.0X12CL8 TRILOBE (5 per pack) 4
40 BRACKETBRAKE LINE - 1.25" OD 4
41 BRAKE-WC SPORT 1
42 SWITCH-BRAKE PRESSURE-BANJO 1
