Arctic Cat PROWLER 700 HDX XT BLACK PROWLER 700 HDX XT BLACK REAR DRIVE GEARCASE ASSEMBLY (SER. tahos_ 302246 AND BELOW)

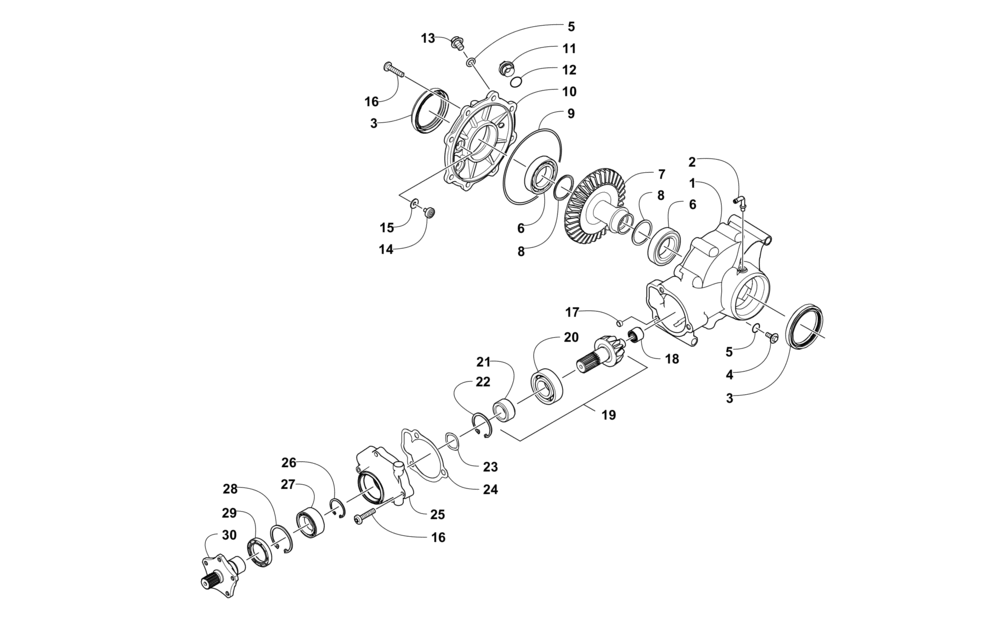

REAR DRIVE GEARCASE ASSEMBLY (SER. tahos_ 302246 AND BELOW)
№ Наименование Примечание Кол-во
- GEARCASEREAR-ASSY (3.6) HDX 1
1 HOUSINGGEARCASE-REAR MACH 1
2 FITTING90 DEG BARB 1
3 SEAL48X84X9 FKM 2
4 PLUGDRAIN-MAGNETIC (inc. one No. 4) 1
5 O-RING GEARCASE6X1.5MM (2 per pack) 2
6 BEARINGBALL-SR(6008 Z C-O) 2
7 GEAR REAR (36 TOOTH) 1
8 SHIM41X49X1.3 0
8 SHIM41X49X1.4 0
8 SHIM41X49X1.5 0
8 SHIM41X49X1.6 0
8 SHIM41X49X1.7 0
9 O-RING150X 2MM 1
10 COVERGEARCASE-REAR MACH 1
11 PLUG FILL (inc. 12) 1
12 O-RING GEARCASE20 X 2.5MM 1
13 PLUG OIL LEVEL (inc. one No. 4) 1
14 BUTTONTHRUST 1
15 SHIM6.3X18X1.3 0
15 SHIM6.3X18X1.4 0
15 SHIM6.3X18X1.5 0
15 SHIM6.3X18X1.6 0
15 SHIM6.3X18X1.7 0
16 SCREWSELF TAP-TSPNH M8X1.25X40 (3 per pack) 11
17 PINDOWEL 1
18 BEARINGNEEDLE (16NQ2316) 1
19 GEAR10 TOOTH PINION-SUBASSEMBLY (inc. 20-21) 1
20 BEARINGBALL (6305) 1
21 COLLARRETAINING 1
22 RINGRETAINING-INTL-65mm (DHO-62 ST ZDL) 1
23 WASHERSPRING 1
24 GASKET FLANGE 1
25 HOUSINGPINION-MACH 1
26 RINGRETAINING(MSR35) 1
27 BEARINGBALL (6007 OPEN ) 1
28 RINGRETAINING-INT 62 1
29 SEAL(44X62X8) 1
30 SHAFTINPUT-ASSEMBLY 1
