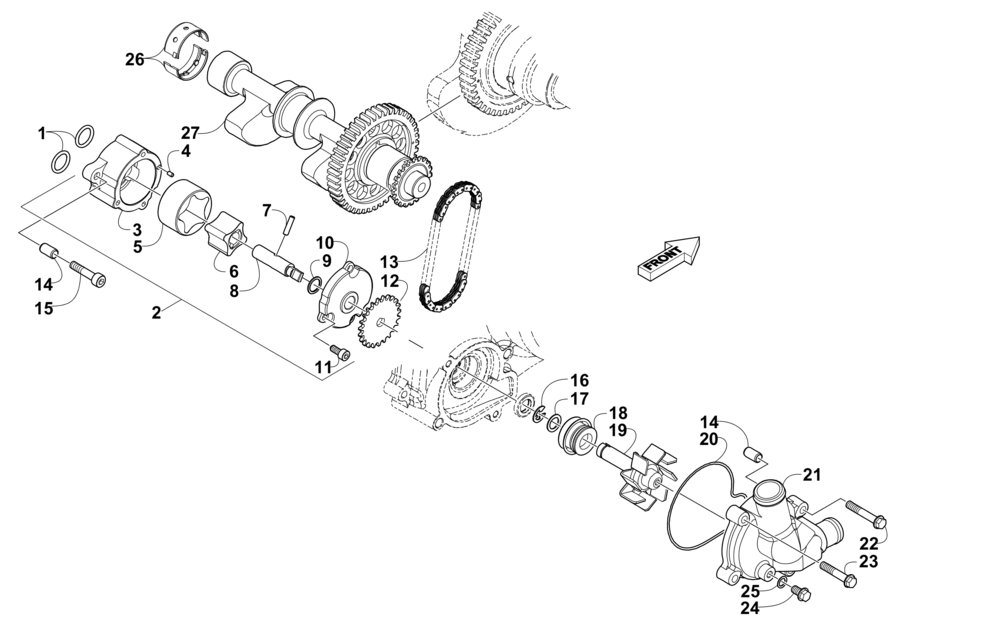

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | O-RING 14.8X2.4 | 2 | |
| 2 | OIL PUMP ASSY (inc. 3-11) | 1 | |
| 3 | BODY OIL PUMP | 1 | |
| 4 | DOWEL PIN 3*5 | 1 | |
| 5 | OUTER ROTOR OIL PUMP | 1 | |
| 6 | INNER ROTOR OIL PUMP | 1 | |
| 7 | PIN DRIVEN GEAR | 1 | |
| 8 | SHAFT OIL PUMP | 1 | |
| 9 | WASHER 11.2X15X1.0 | 1 | |
| 10 | COVER OIL PUMP GEAR | 1 | |
| 11 | SOCKET BOLT OIL PUMP COVER | 3 | |
| 12 | SPROCKET. OIL PUMP DRIV | 1 | |
| 13 | CHAIN OIL PUMP | 1 | |
| 14 | PIN DOWEL 8*14 (2 per pack) | 4 | |
| 15 | BOLT SOCKET 6*25 (5 per pack) | 2 | |
| 16 | E RING 9 | 1 | |
| 17 | WASHER THRUST 12M/M | 1 | |
| 18 | SEALMECHANICAL | 1 | |
| 19 | SHAFT ASSY IMPELLER | 1 | |
| 20 | O-RING WATER PUMP | 1 | |
| 21 | COVER ASSYWATER PUMP | 1 | |
| 22 | BOLT FLANGE SH 6*28 (5 per pack) | 2 | |
| 23 | BOLT FLANGE SH 6*35 (5 per pack) | 2 | |
| 24 | BOLT FLANGE SH 6*10 (10 per pack) | 1 | |
| 25 | WASHER A 6MM (5 per pack) | 1 | |
| 26 | BRG BALANCER SHAFT-BROWN (A) | 6 | |
| 26 | BRG BALANCER SHAFT-GREEN (B) | 6 | |
| 26 | BRG BALANCER SHAFT-YELLOW (C) | 6 | |
| 27 | SHAFT COMP BALANCER | 1 |
