Arctic Cat PROWLER 700 XTX CAMO PROWLER 700 XTX CAMO CONSOLE AND FLOOR PANEL ASSEMBLY

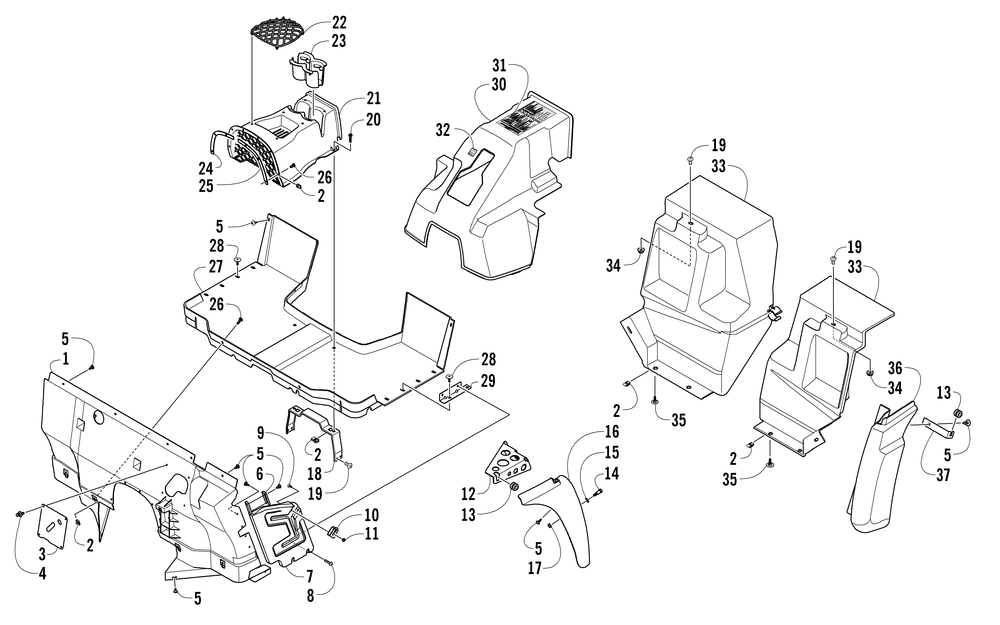

CONSOLE AND FLOOR PANEL ASSEMBLY
№ Наименование Примечание Кол-во
1 PANELINNER FENDER-RTD (XTX/Z) 1
2 CLIPU-NUT M6 (5 per pack) 16
3 BOOTSTEERING-PS (DIE CUT) 1
4 RIVETPLASTIC-REINSTALLABLE (5 per pack) 4
5 SCREWSELF TAP-TSTRH tahos_10-12X3/4 TP A BLK (5 per pack) 0
6 BRACKETKICK PANEL-PTD BLACK 2
7 PANELSIDE KICK 2
8 SCREWMACH-TSPNH M6X1.0X25 CL8.8 BLK (5 per pack) 4
9 SCREWMACH-TSTRH-M6-1.0 X 16 BLACK (5 per pack) 4
10 TONGUEBUCKLE 2
11 NUTLOCK M6X1 (2 per pack) 4
12 BRACKETSUPPORT-LH-PTD BLK 1
12 BRACKETSUPPORT-RH-PTD BLK 1
13 GROMMETGAUGE MOUNT (3 per pack) 4
14 SCREW HEXDOME HEAD SHOULDER-1/4-20X.50 2
15 WASHERFLAT- 1/4 X .625 X .065 Z&Y (10 per pack) 2
16 FENDERFRONT-LEFT (A. T. CAMO) Camo 1
16 FENDERFRONT-RIGHT (A. T. CAMO) Camo 1
17 NUTHEX FLG-TOP LOCK 1/4-20 GR F Z&Y (10 per pack) 2
18 BRACKETFLOOR SUPPORT-PAINTED 1
19 SCREWMACH-TSTRH M6X1.0X16 Z&Y (5 per pack) 6
20 SCREWMACH-TSPNH M6X1.0X70 CL8.8 BLK 2
21 TUNNELCENTER 1
22 NETSTORAGE BOX 1
23 GROMMETCUPHOLDER 1
24 FOAMTUNNEL-LH (2 per pack) 1
25 FOAMTUNNEL-RH (2 per pack) 1
26 SCREWFUEL TANK MOUNT (M6X18 DP) (4 per pack) 10
27 FLOOR- PROWLERS 1
28 SCREWBODY-SELF TAP tahos_12 X 3/4 A Z&B (5 per pack) 8
29 BRACKETKICK PANEL-RH-PTD BLACK 1
29 BRACKETKICK PANEL-LH-PTD BLACK 1
30 CONSOLECENTER-PARK BRAKE (700 XTX) 1
31 DECALWARNING CONSOLE 1
32 DECALCAUTION-ENGINE RPM 1
33 PANELSPLASH-REAR-LH 1
33 PANELSPLASH-REAR-RH 1
34 NUTHEX-FLG M6X1.0 CL8 Z&Y (4 per pack) 2
35 SCREWSHOULDER 11 X 3.5 X 6MM (4 per pack) 4
36 FENDERREAR LOWER-RIGHT (A. T. CAMO) Camo 1
36 FENDERREAR LOWER-LEFT (A. T. CAMO) Camo 1
37 BRACKETLOWER FENDER SUPPORT-BLACK 2
