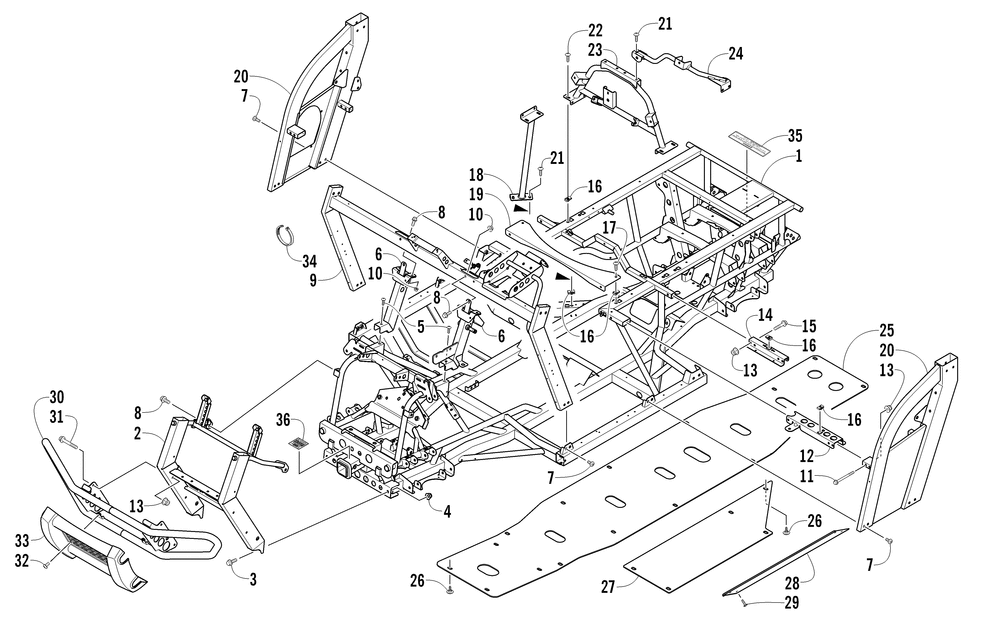

FRAME AND RELATED PARTS

№	Наименование	Кол-во
1	FRAME HDX - PTD BLK	1
2	BUMPERXTZ-PTD BLK	1
3	SCREWCAP-HFH M10X1.25X20 CL10.9 Z&Y (4 per pack)	2
4	NUTHEX FLG-NYL LOCK M10X1.25 CL8 Z&Y (4 per pack)	2
5	SCREWMACH-TSTRH M8X1.25X20 Z&Y	2
6	BRKTSTEERING SUPPORT-PTD BLACK	1
6	BRACKETSTEERING SUPPORT-PTD BLK	1
7	SCREWMACH-TSTRH M8X1.25X20 CL8.8 W/LOCK (4 per pack)	12
8	SCREWCAP-HFH M8X1.25X20 CL8.8 Z&Y (4 per pack)	8
9	STEERING SUPPORT-PTD BLK	1
10	NUTHEX-FLG M8X1.25 CL8 Z&Y	6
11	SCREWCAP-HFH M8X1.25X70 CL8.8 Z&Y (5 per pack)	6
12	BRACKETSEAT-SUPPORT-FRONT-RH-PTD BLK	1
12	BRACKETSEAT-SUPPORT-FRONT-LH-PTD BLK	1
13	NUTHEX FLG-NYL LOCK M8X1.25 CL8 Z&Y	16
14	BRACKETSEAT-SUPPORT-REAR-PAINTED BLK	2
15	SCREWCAP-HFH M8X1.25X50 CL8.8 Z&Y (2 per pack)	6
16	CLIPU-NUT M6 (5 per pack)	14
17	SCREWMACH-TSTRH M6X1.0X20 Z&BLK (4 per pack)	2
18	TUBESUPPRT-PTD BLK	1
19	BRKTFRONT SEAT-PTD BLK	1
20	SUPPORTOVERHEAD-RH-PTD	1
20	SUPPORTOVERHEAD-LH-PTD	1
21	SCREWMACH-TSTRH M6X1.0X16 Z&Y (5 per pack)	6
22	SCREWMACH-TSPNH M6X1.0X16 CL8.8 BLK (4 per pack)	4
23	CANOPY SUPPRT-PTD BLK	1
24	SEAT SUPPORT-LH-PTD BLK	1
24	SEAT SUPPORT-RH-PTD BLK	1
25	SKID PLATE-MAIN (2016 HDX)	1
26	SCREWBODY-SELF TAP tahos_12 X 3/4 A Z&B (5 per pack)	26
27	SKID PLATESIDE	2
28	PLATESKID-SIDE-BLACK	2
29	SCREWSELFTAP-THFT STS12-24 X 3/4 AB Z&B (4 per pack)	8
30	BUMPERPUSH-PAINTED (BLACK)	1
31	SCREWCAP-HFH M8X1.25X60 CL8.8 Z&Y (8 per pack)	4
32	SCREWMACH-TSTRH M6X1.0X16 Z&BLK (5 per pack)	4
33	FASCIABUMPER-FRONT	1
34	TIECABLE-8.5/7.5/7.4 (10 per pack)	0
35	DECALWARNING-TOWING RR	1
36	DECALWARNING-TOWING FR	1
