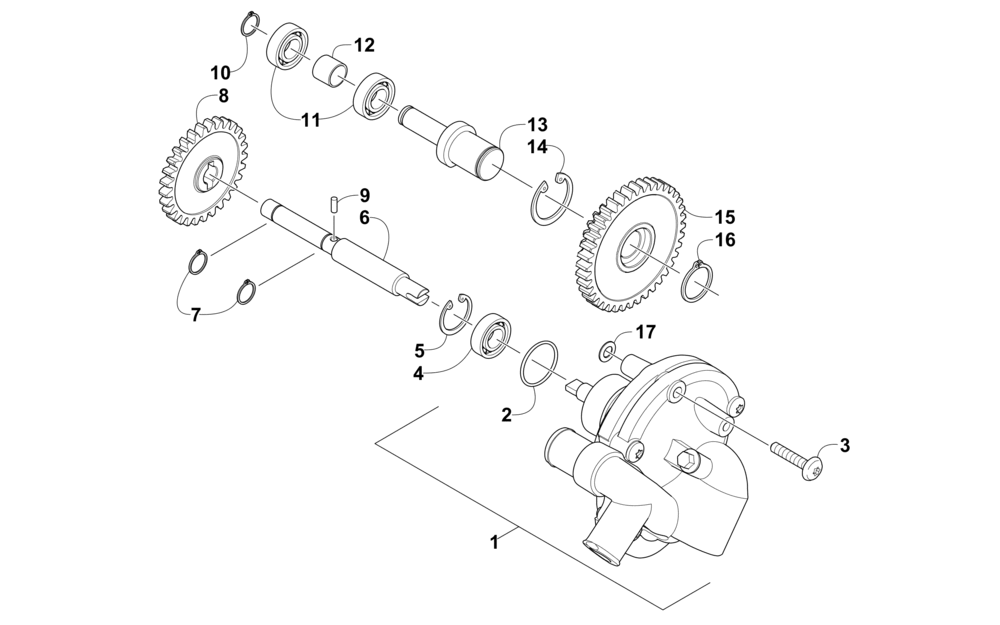

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | KITWATERPUMP-SC CASE (inc. 2) | 1 | |
| 2 | MOTO O-RING, 32.5 ID X 2 W ARCTIC CAT 0830029 | 1 | |
| 3 | SCREWMACH-TSPNH M6X1.0X50 CL8.8 BLK | 2 | |
| 4 | BEARING6201 12 X 32 X 10 | 1 | |
| 5 | CIRCLIPSHAFT BEARING 33 | 1 | |
| 6 | SHAFTWATERPUMP-DRIVEN GEAR | 1 | |
| 7 | RING EXTERNAL RETAINING - DSH-12 | 2 | |
| 8 | GEARDRIVENWATERPUMP-ID12 | 1 | |
| 9 | PIN (4 X 16) | 1 | |
| 10 | RING EXTERNAL RETAINING - DSH-10 | 1 | |
| 11 | BEARINGSHAFT | 2 | |
| 12 | SPACERIDLER-WATERPUMP | 1 | |
| 13 | SHAFTWATER/OIL PUMP | 1 | |
| 14 | CIRCLIP SHAFT BEARING | 1 | |
| 15 | GEARIDLER-WATERPUMP | 1 | |
| 16 | RING EXTERNAL RETAINING - DSH-17 | 1 | |
| 17 | WASHER STEEL 6 x 14 x .9 | 2 |
